Air Bypass Valve: Testing and Inspection

INSPECTION OF AIR BYPASS VALVE OPERATION

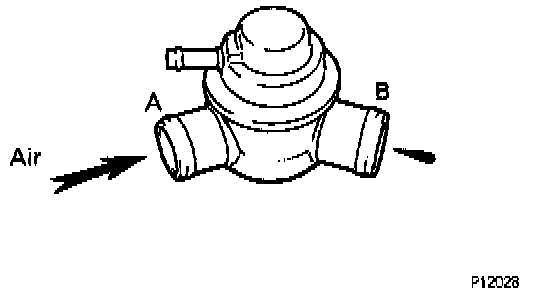

(a) Check that air does not flow from port A to B.

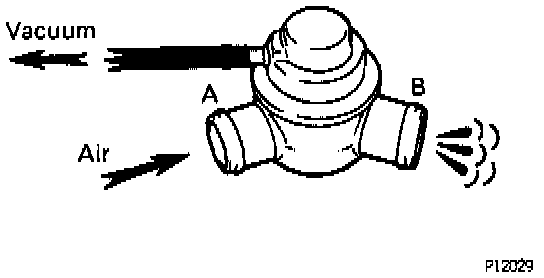

(b) Apply vacuum to the valve.



(c) Check that air flows from port A to B.
- If operation is not as specified, replace the valve.
