Fuel Pump Disassembly and Assembly

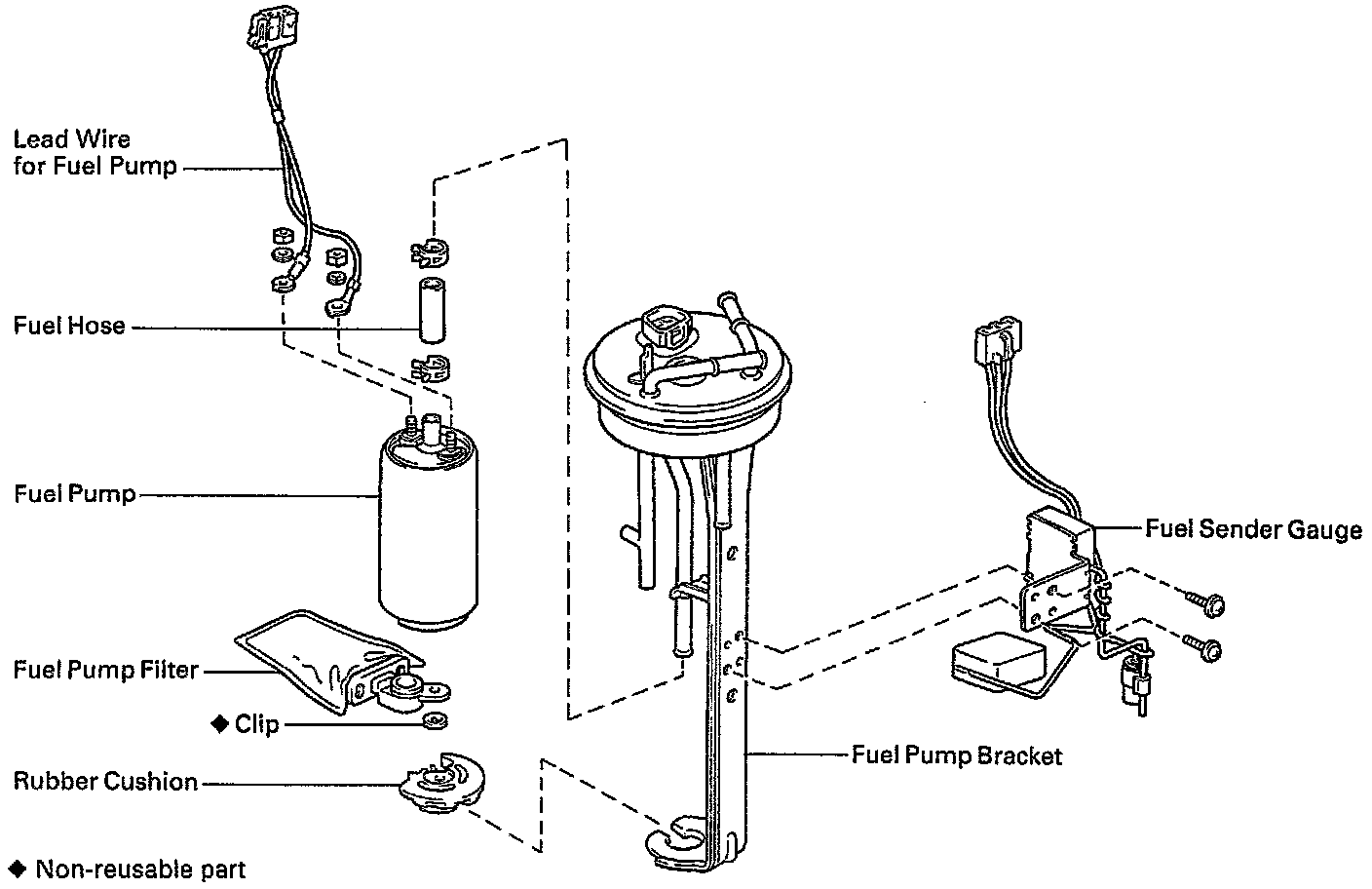

Components:

COMPONENTS FOR DISASSEMBLY AND ASSEMBLY

FUEL PUMP DISASSEMBLY
1. Remove fuel sender gauge from fuel pump bracket.
- Disconnect the connector from the fuel pump bracket.

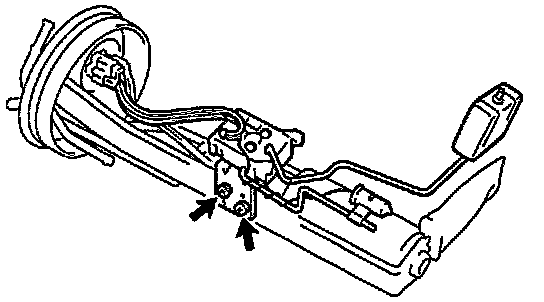

Fuel Sender Mounting Screws:

- Remove the 2 screws and sender gauge.
2. Remove fuel pump from pump bracket.

Electrical Connection:

- Remove the 2 nuts and spring washers, and disconnect the lead wire from the fuel pump.
- Disconnect the connector from the fuel pump bracket, and remove the lead wire.

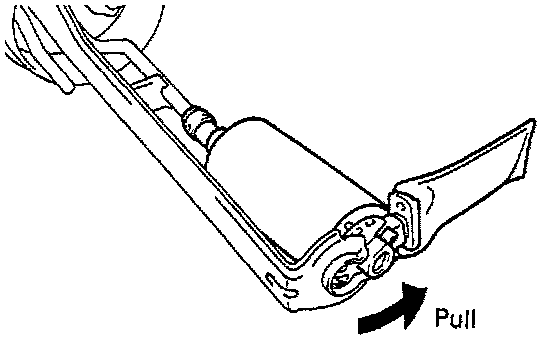

Fuel Pump Removal:

- Pull out the lower side of the fuel pump from the pump bracket.
- Remove the rubber cushion from the fuel pump.
- Disconnect the fuel hose from the fuel pump, and remove the fuel pump.
3. Remove fuel pump filter from fuel pump.

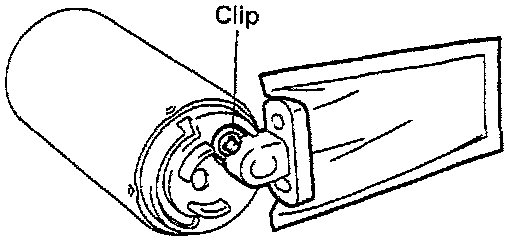

Fuel Pump Filter Removal:

- Using a small screwdriver, remove the clip.

ASSEMBLY HINT: Use a new clip.

- Pull out the pump filter.

FUEL PUMP ASSEMBLY

ASSEMBLY HINT: Assembly is in the reverse order of disassembly.
