Component Inspection

VSV FOR FUEL PRESSURE CONTROL INSPECTION
1. Remove VSV.
2. Inspect VSV.
A. Inspect VSV for open circuit.





- Using an ohmmeter, check that there is continuity between the terminals.

Resistance: At 20°C (68°F) 33 - 39 Ohms

- If there is no continuity, replace the VSV.
B. Inspect VSV for ground





- Using an ohmmeter, check that there is no continuity between each terminal and the body.
- If there is continuity, replace the VSV.
C. Inspect VSV operation

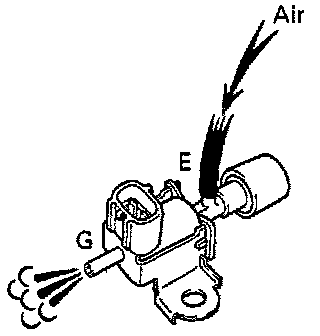

- Check that air flows from port E to G.

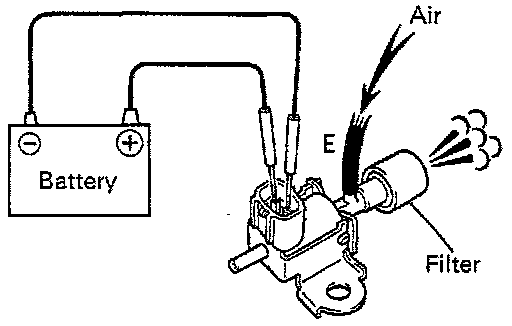

- Apply battery positive voltage across the terminals.
- Check that air flows from port E to the filter.
- If operation is not as specified, replace the VSV.
3. Reinstall VSV.
