Removal and Installation

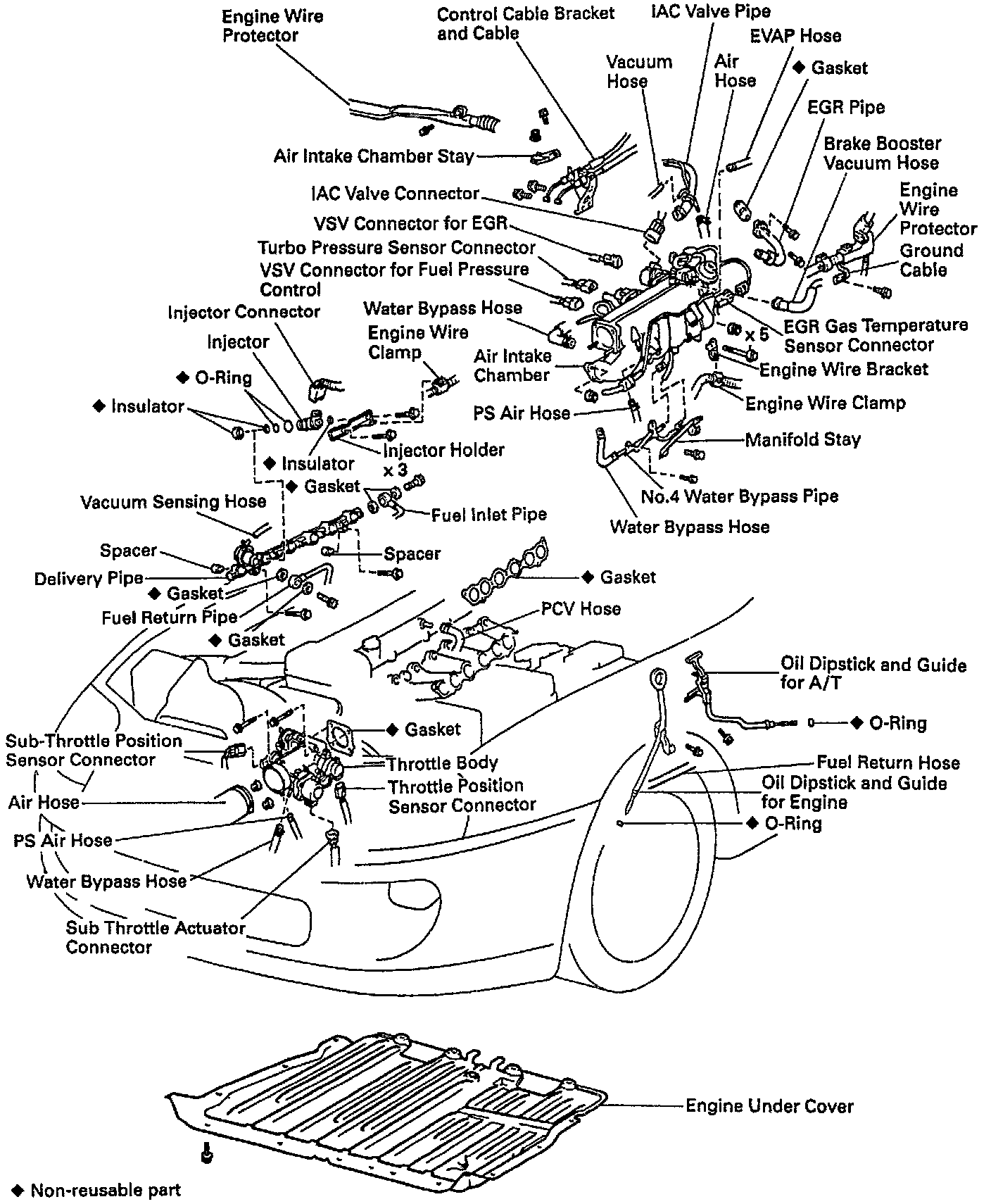

COMPONENTS FOR REMOVAL AND INSTALLATION

INJECTORS REMOVAL

1. Remove engine under cover.
2. Remove throttle body.





3. Remove oil dipstick and guide for A/T.
- Remove the bolt.
- Pull out the dipstick guide together with the dipstick.

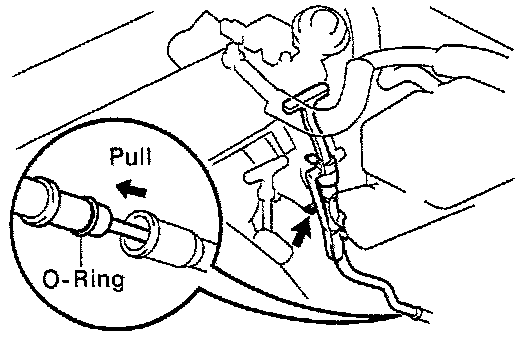

INSTALLATION HINT: Apply soapy water to the O-ring, and push in the dipstick guide.

- Remove the O-ring from the dipstick guide.

INSTALLATION HINT: Use a new O-ring.





4. Remove oil dipstick and guide for engine.

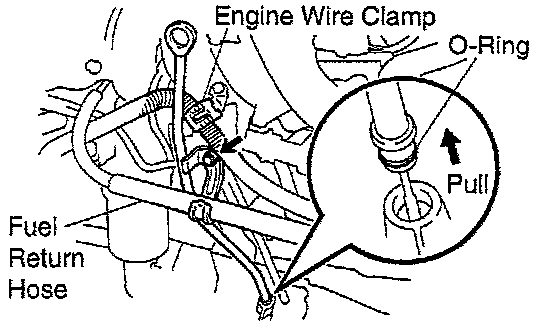

- Disconnect the fuel return hose from the clamp of the dipstick guide.
- Remove the bolt,
- Pull out the dipstick guide together with the dipstick.

INSTALLATION HINT: Apply soapy water to the O-ring, and push in the dipstick guide.

- Remove the O-ring from the dipstick guide.

INSTALLATION HINT: Use a new O-ring.





5. remove air intake chamber stay.
- Remove the bolt, nut and chamber stay.

Torque: 19 N.m (195 kgf.cm, 14 ft.lbf)

6. Disconnect control cable bracket from air intake chamber.
- Remove the 2 bolts, and disconnect the cable bracket from the air intake chamber.

Torque: 19 N.m (195 kgf.cm, 14 ft.lbf)

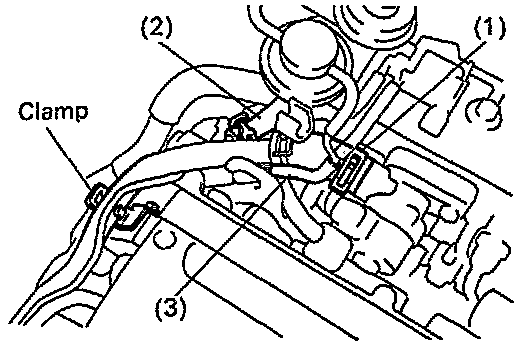

7. Disconnect connectors and hoses

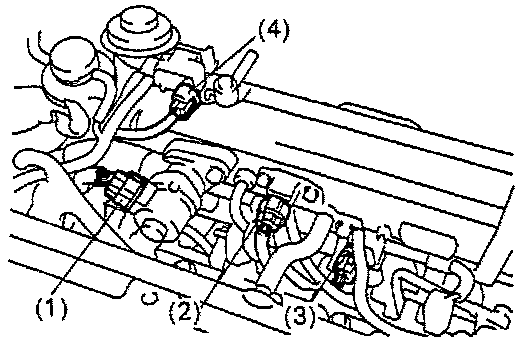

- Disconnect these connectors:
(1) IAC valve connector
(2) Turbo pressure sensor connector
(3) VSV connector for fuel pressure control
(4) VSV connector for EGR





- Remove the bolt, and disconnect the engine wire protector from the body.

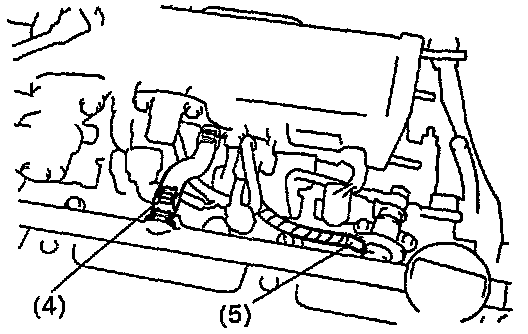

- Disconnect these hoses:
(1) Air hose from IAC valve
Disconnect the IAC valve pipe from the clamp on the cylinder head cover, and disconnect the air hose from the IAC valve.
(2) Air hose (from air intake chamber) from vacuum pipe on IAC valve pipe
(3) Air hose for EGR from valve pipe





(4) PCV hose from PCV valve
(5) Vacuum sensing hose from fuel pressure regulator
(6) Water bypass hose (from IAC valve) from No.4 water bypass pipe
(7) EVAP hose (from air intake chamber) from vacuum pipe on manifold stay
(8) EVAP hose (from vacuum pipe on No.4 water bypass pipe) from No.2 vacuum pipe
(9) EVAP hose (from charcoal canister) from No.2 vacuum pipe
(10) PS air hose from air intake chamber





(11) Brake booster vacuum hose from union on air intake chamber

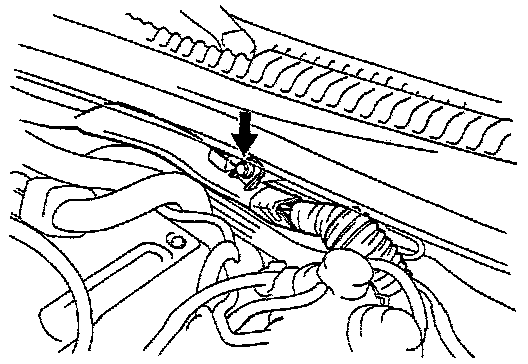

8. Disconnect EGR gas temperature sensor connector.





- Disconnect the connector from the No.2 vacuum pipe.
- Disconnect the sensor connector from the wiring connector.
9. Remove EGR pipe.
- Remove the union bolt holding the EGR pipe to the EGR valve.

Torque: 64 N.m (650 kgf.cm, 47 ft.lbf)

- Remove the 2 bolts, EGR pipe and gasket.

INSTALLATION HINT: Use a new gasket.

Torque: 27 N.m (280 kgf.cm, 20 ft.lbf)

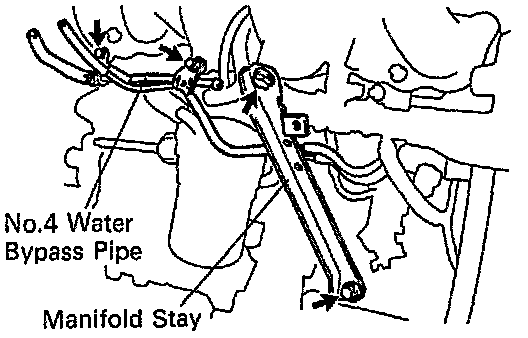

10. Remove No.4 water bypass pipe.
- Remove the 2 bolts and water bypass pipe.
11. Remove manifold stay.
- Remove the 2 bolts and manifold stay.

Torque: 39 N.m (400 kgf.cm, 29 ft.lbf)

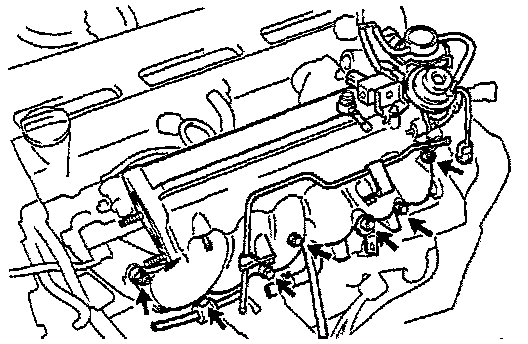

12. Remove air intake chamber assembly.

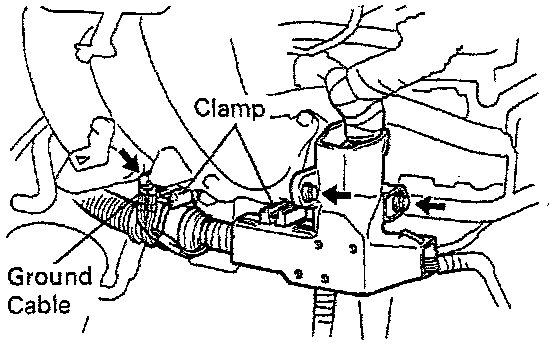

- Remove the bolt, and disconnect the ground cable from the intake manifold.
- Remove the 2 bolts holding the engine wire protector to the intake manifold.
- Disconnect the 2 clamps of the engine wire protector from the brackets.





- Remove the 5 bolts, 2 nuts and engine wire bracket, and disconnect the air intake chamber assembly from the intake manifold.

INSTALLATION HINT: Uniformly tighten the bolts and nuts in several passes.

Torque: 27 N.m (280 kgf.cm, 20 ft.lbf)

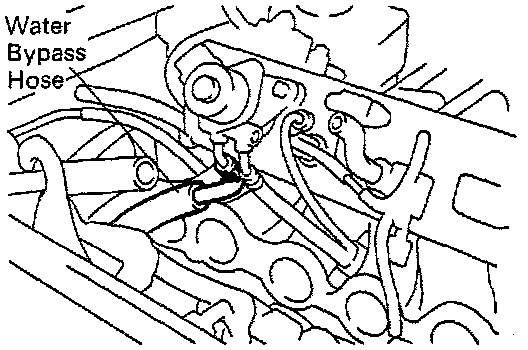

- Disconnect the water bypass hose from the IAC valve.
- Remove the gasket.

INSTALLATION HINT: Use a new gasket.

13. Disconnect wire clamps and connectors.





- Disconnect these connectors and clamps:
(1) 6 injectors connectors

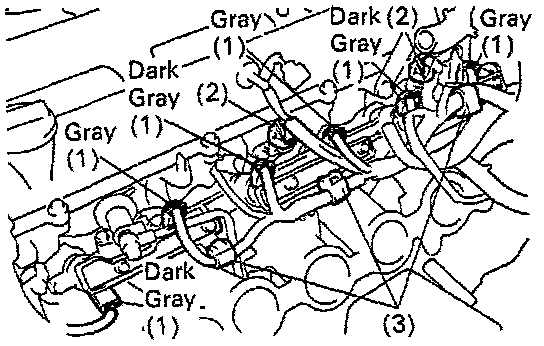

INSTALLATION HINT: The No.1, No.3 and No.5 injector connectors are dark gray, and the No.2, No.4 and No.6 injector connectors are gray.

(2) 2 camshaft position sensor connectors
(3) 3 engine wire clamps from injector holders

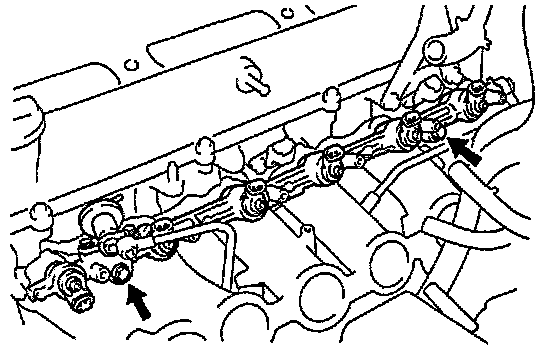

14. Disconnect fuel inlet pipe from delivery pipe.





- Remove the union bolt and 2 gaskets, and disconnect the inlet pipe from the delivery pipe.

INSTALLATION HINT: Use 2 new gaskets.

Torque: 41 N.m (420 kgf.cm, 30 ft.lbf)

CAUTION:
- Put a shop towel under the delivery pipe.
- Slowly loosen the union bolt.

15. Disconnect fuel return pipe from fuel pressure regulator.
16. Remove delivery pipe and injectors.

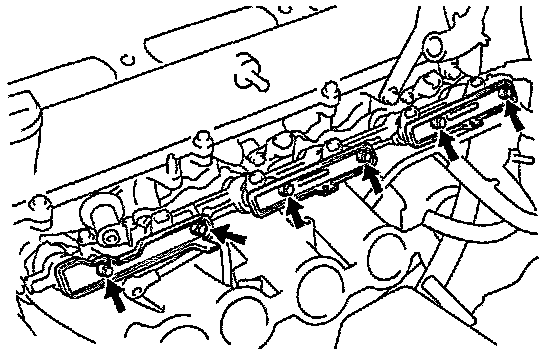

- Remove the 6 bolts and 3 injector holders.

Torque: 7.8 N.m (80 kgf.cm, 69 in..lbf)

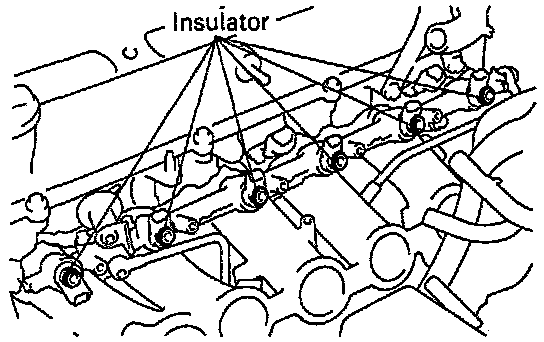

- Remove the 6 insulators from the injectors.

INSTALLATION HINT: Use 6 new insulators.





- Remove the 2 bolts, the delivery pipe and 6 injectors assembly.

Torque: 21 N.m (210 kgf.cm, 15 ft.lbf)

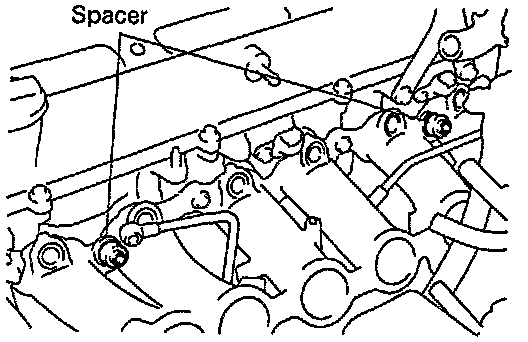

- Remove the 2 spacers from the intake manifold.

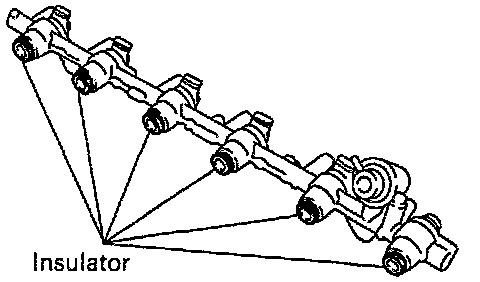

- Remove the 6 insulators from the delivery pipe.

INSTALLATION HINT: Use 6 new insulators.

INJECTORS INSTALLATION

INSTALLATION HINT:Installation is in the reverse order of removal.
