Fuel Injector Replacement

INJECTORS REPLACEMENT

1. Remove injectors.

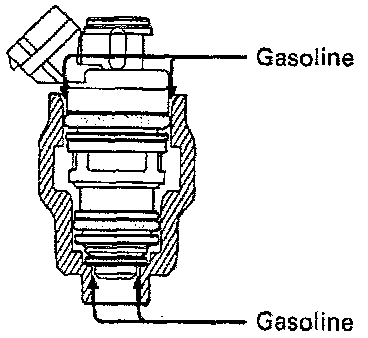

- Apply gasoline between the delivery pipe and injectors.

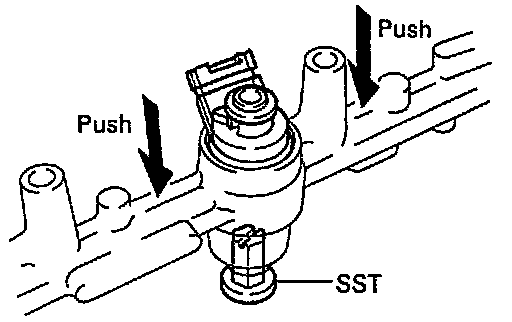

- Using SST, lift up the 6 injectors. SST 09268-74010
- Remove the insulator and 2 O-rings from each injector.

2. Reinstall injectors.





- Apply a light coat of gasoline to 2 new O-rings.

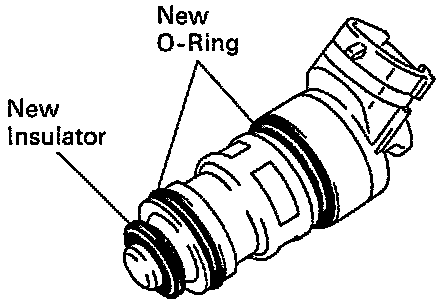

- Install the 2 O-rings and new insulator to each injector.

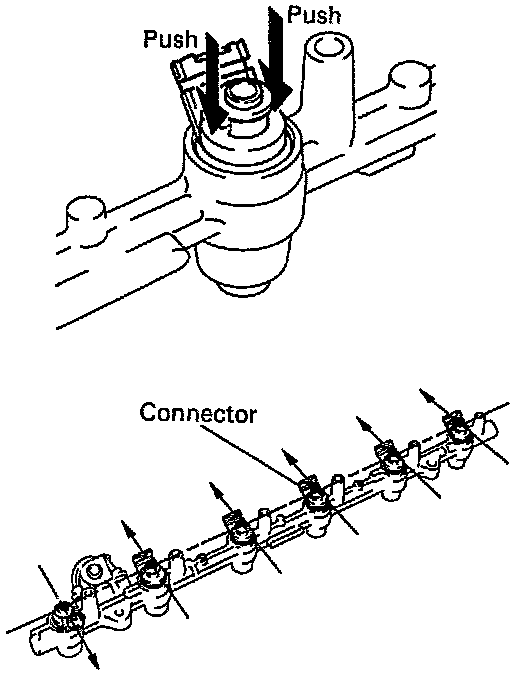

- Push in the 6 injectors so that the injector connectors are positioned as shown in the illustration.
