Scan Tool Testing and Procedures

ECM DATA MONITOR USING TOYOTA HAND-HELD TESTER

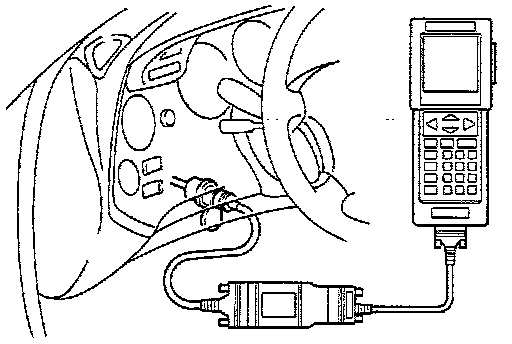

1. Hook up the TOYOTA hand-held tester to the DLC2.
2. Monitor the ECM data by following the prompts on the tester screen.

HINT: TOYOTA hand-held tester has a "Snapshot" function which records the monitored data.

Please refer to TOYOTA hand-held tester operator's manual for further details.
