Connector Joining Wire Harness and Wire Harness

Connector Joining Wire Harness And Wire Harness:

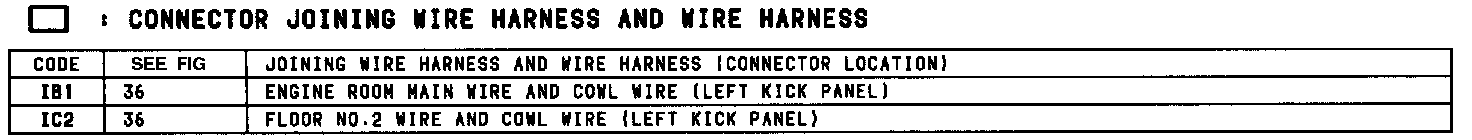

CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS

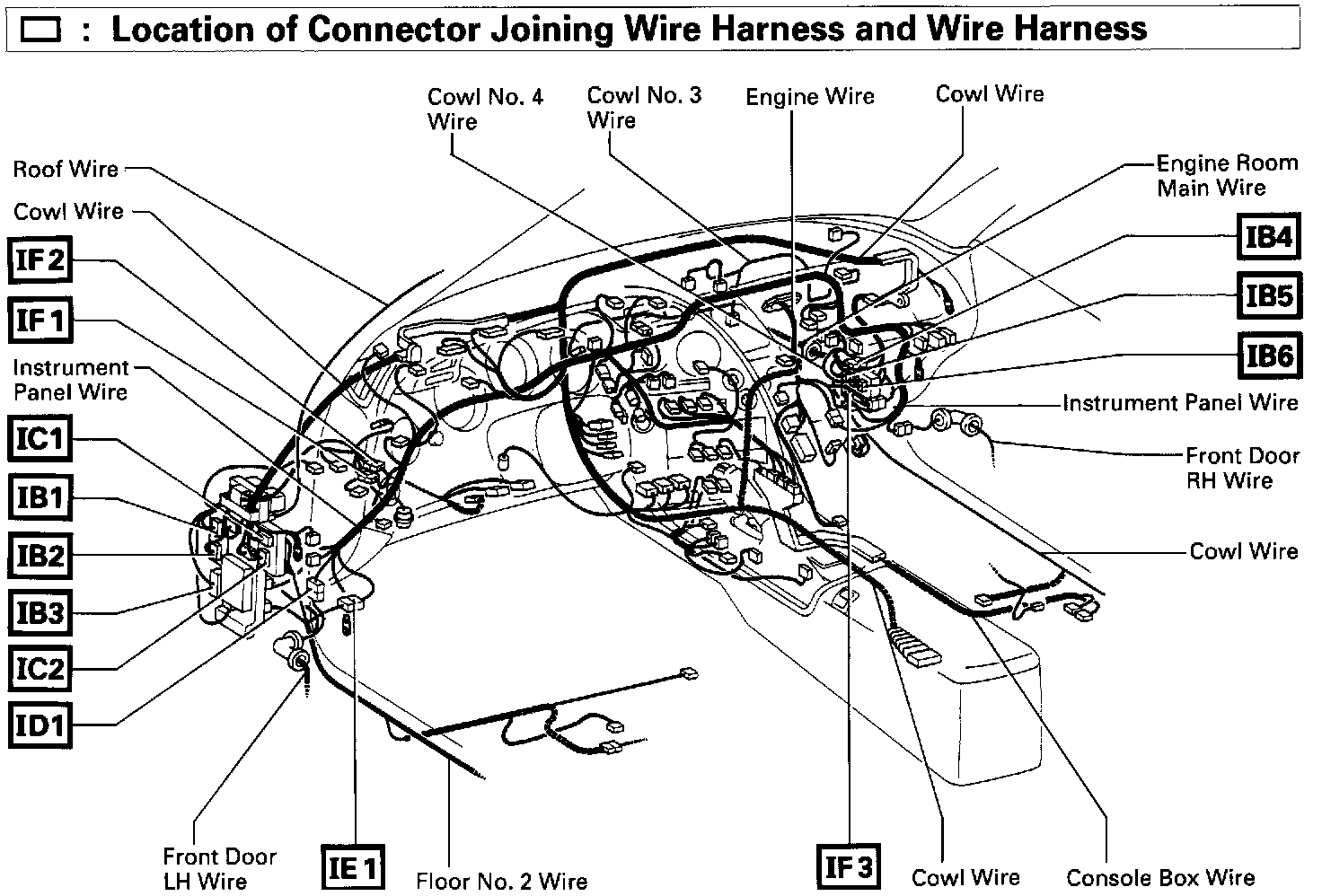

Location Of Connector Joining Wire Harness And Wire Harness (Fig 36):




FIG 36
