Steering Gear

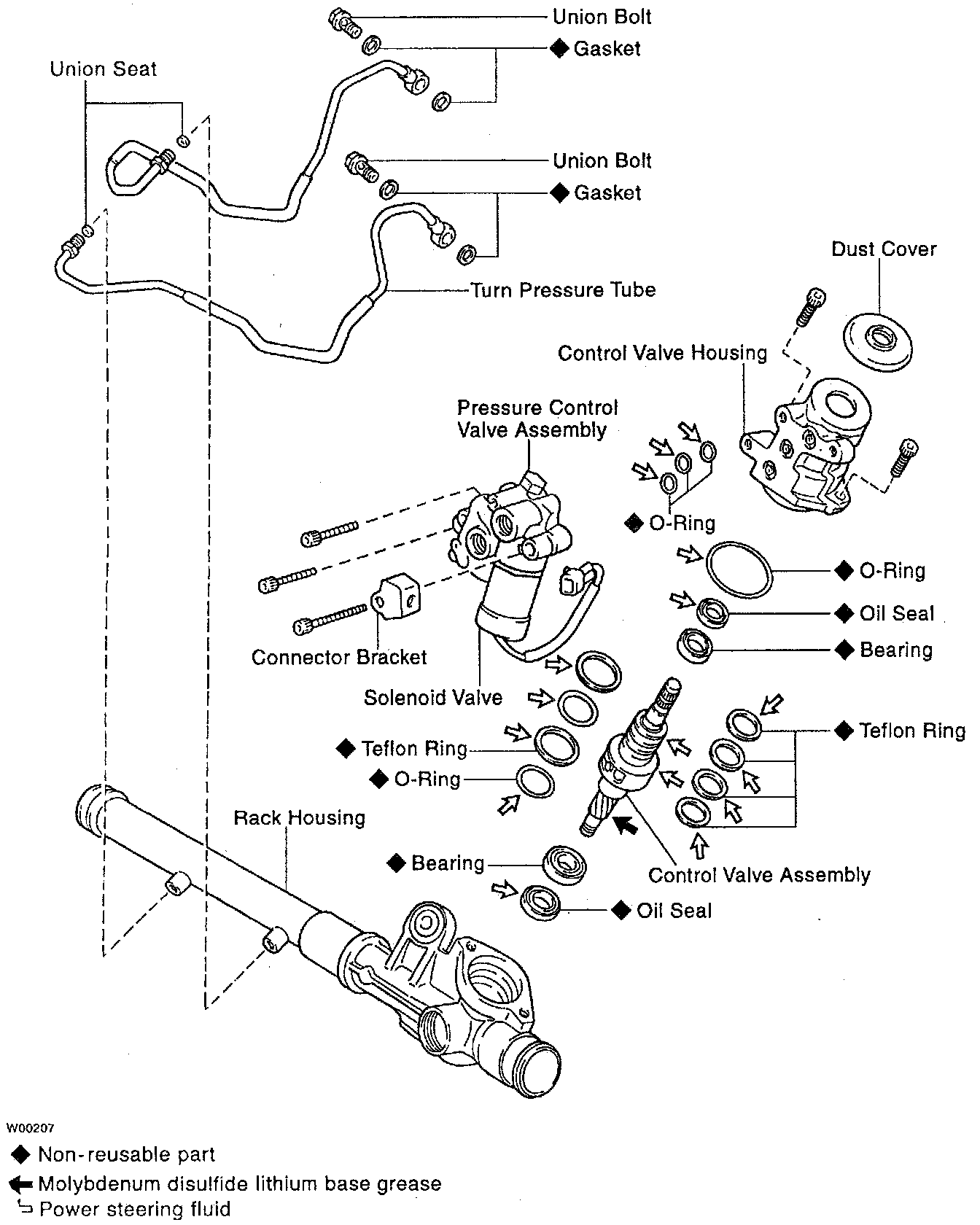

Power Steering Gear (1 Of 3):

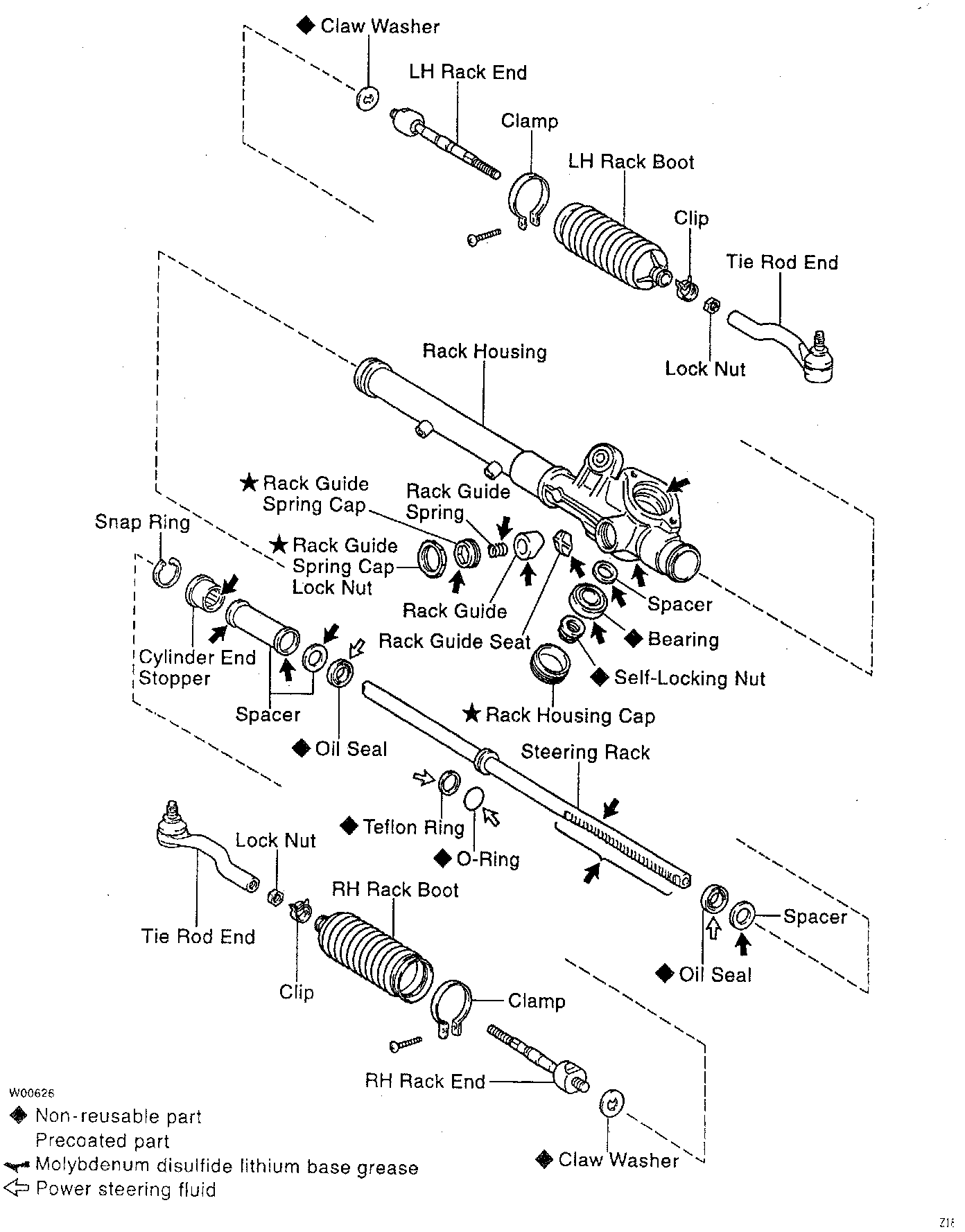

Power Steering Gear (2 Of 3):

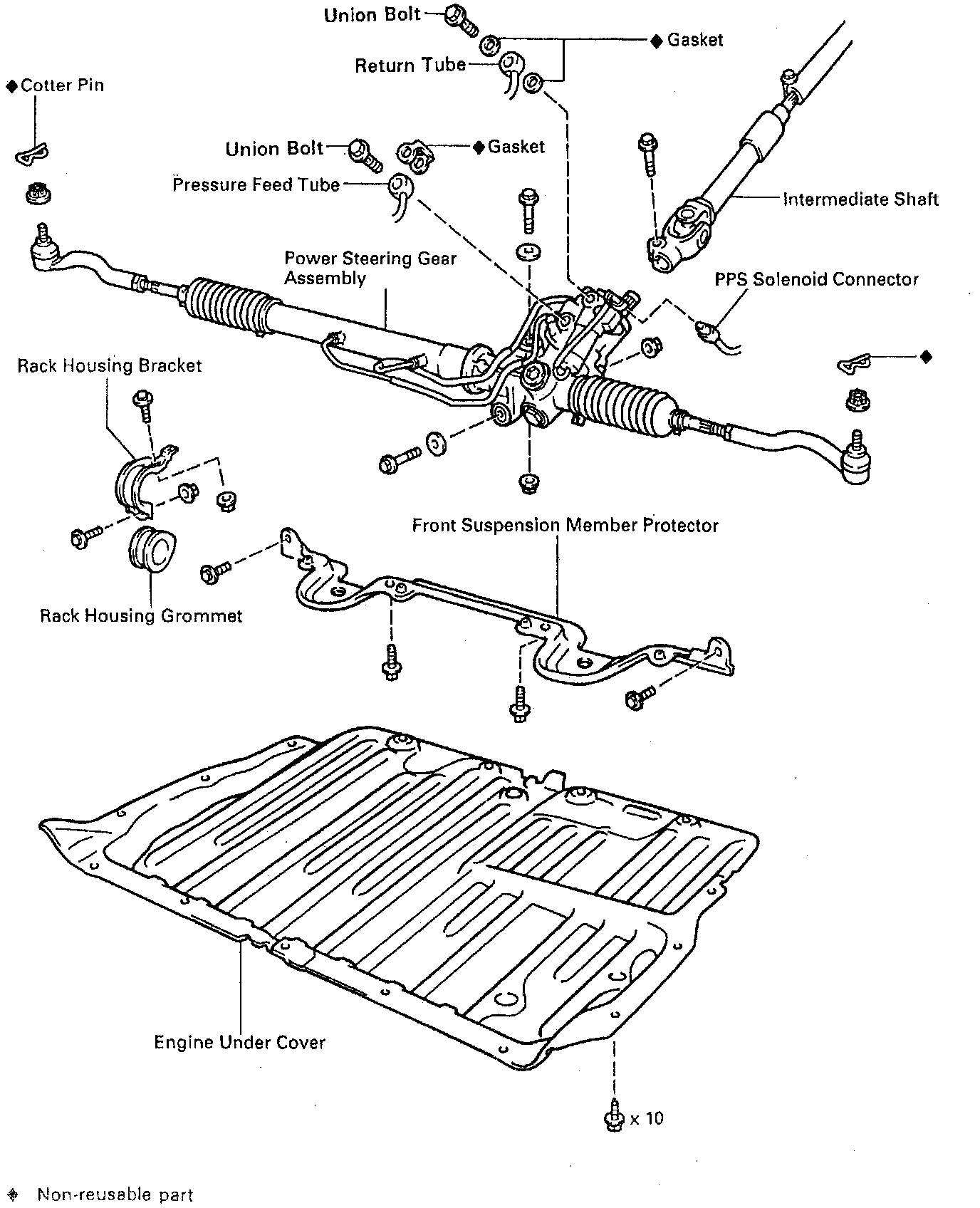

Power Steering Gear (3 Of 3):
