Home >> Toyota >> 1996 >> Supra L6-183 2997cc 3.0L DOHC Turbo (2JZ-GTE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Steering Column

Steering Column

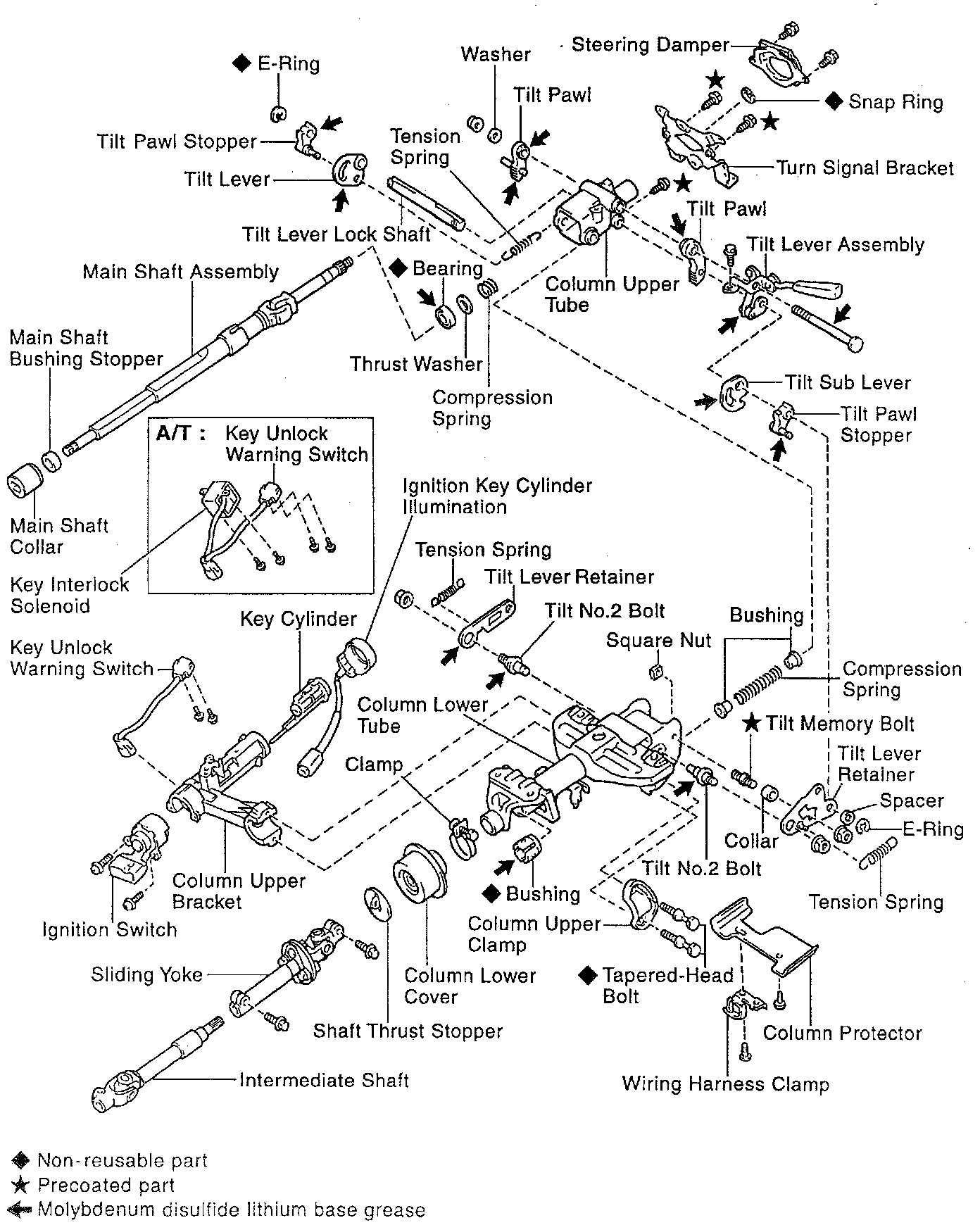

Tilt Steering Column (1 Of 2):

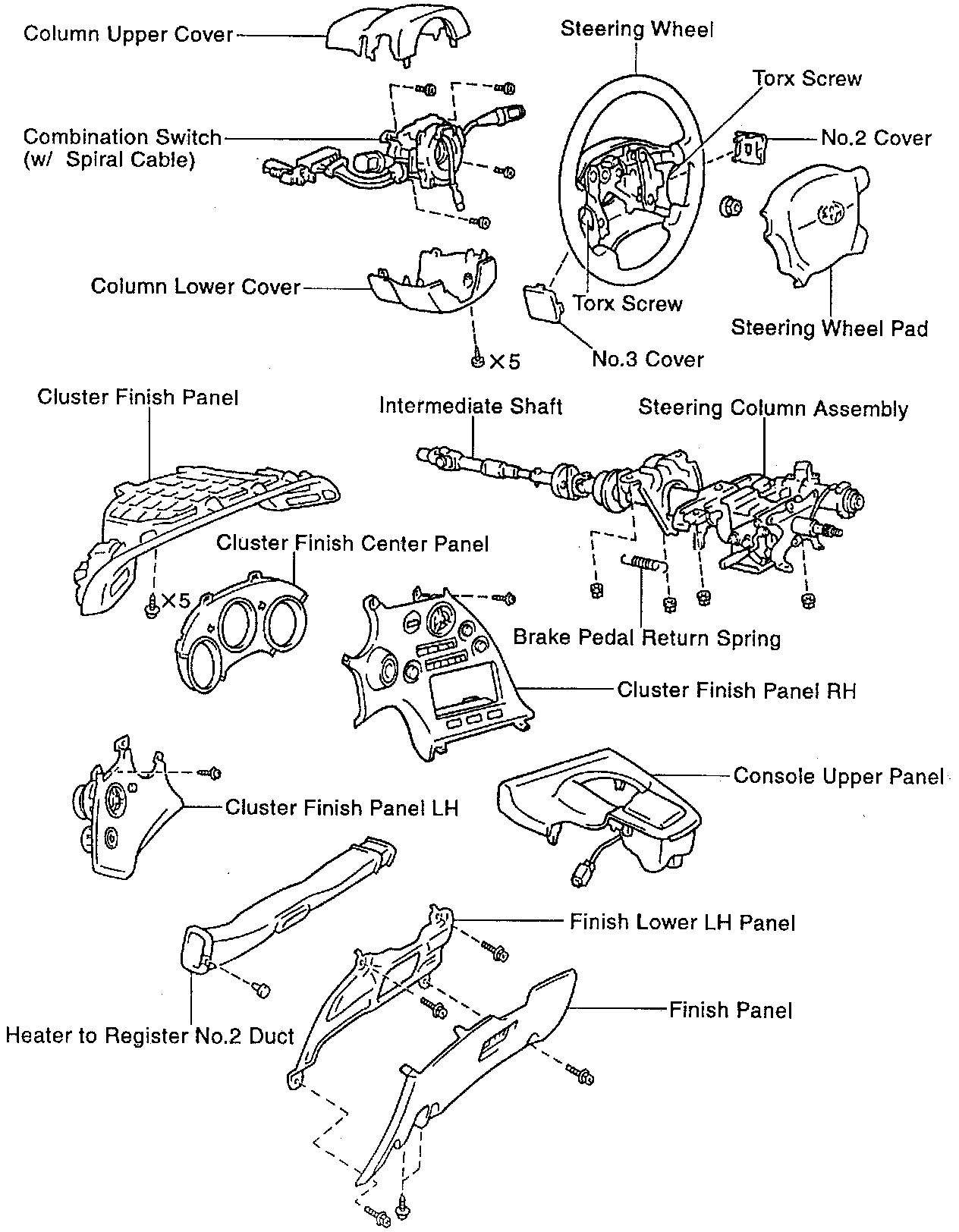

Tilt Steering Column (2 Of 2):
