Power Steering Pump

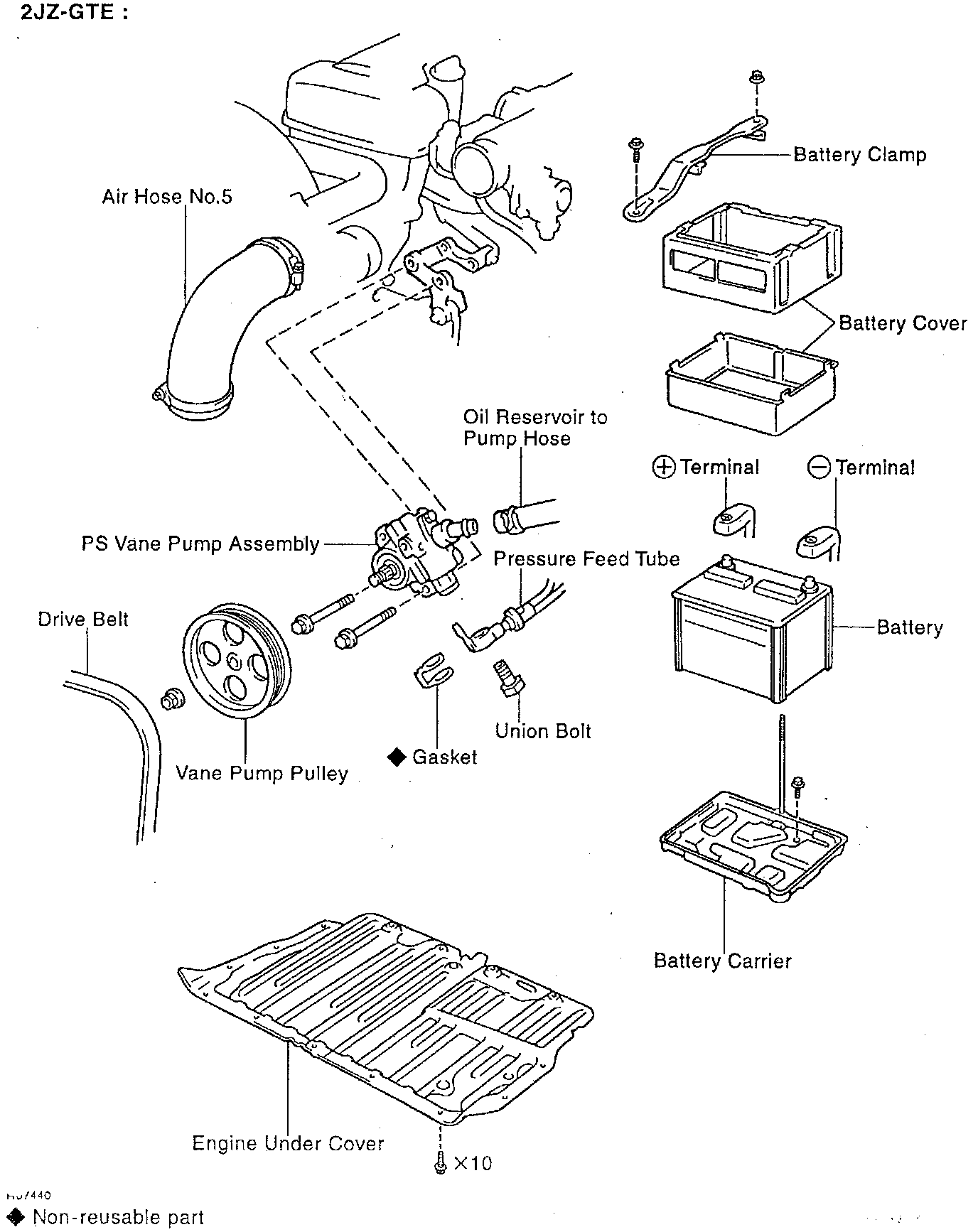

Power Steering Vane Pump / 2JZ-GTE:

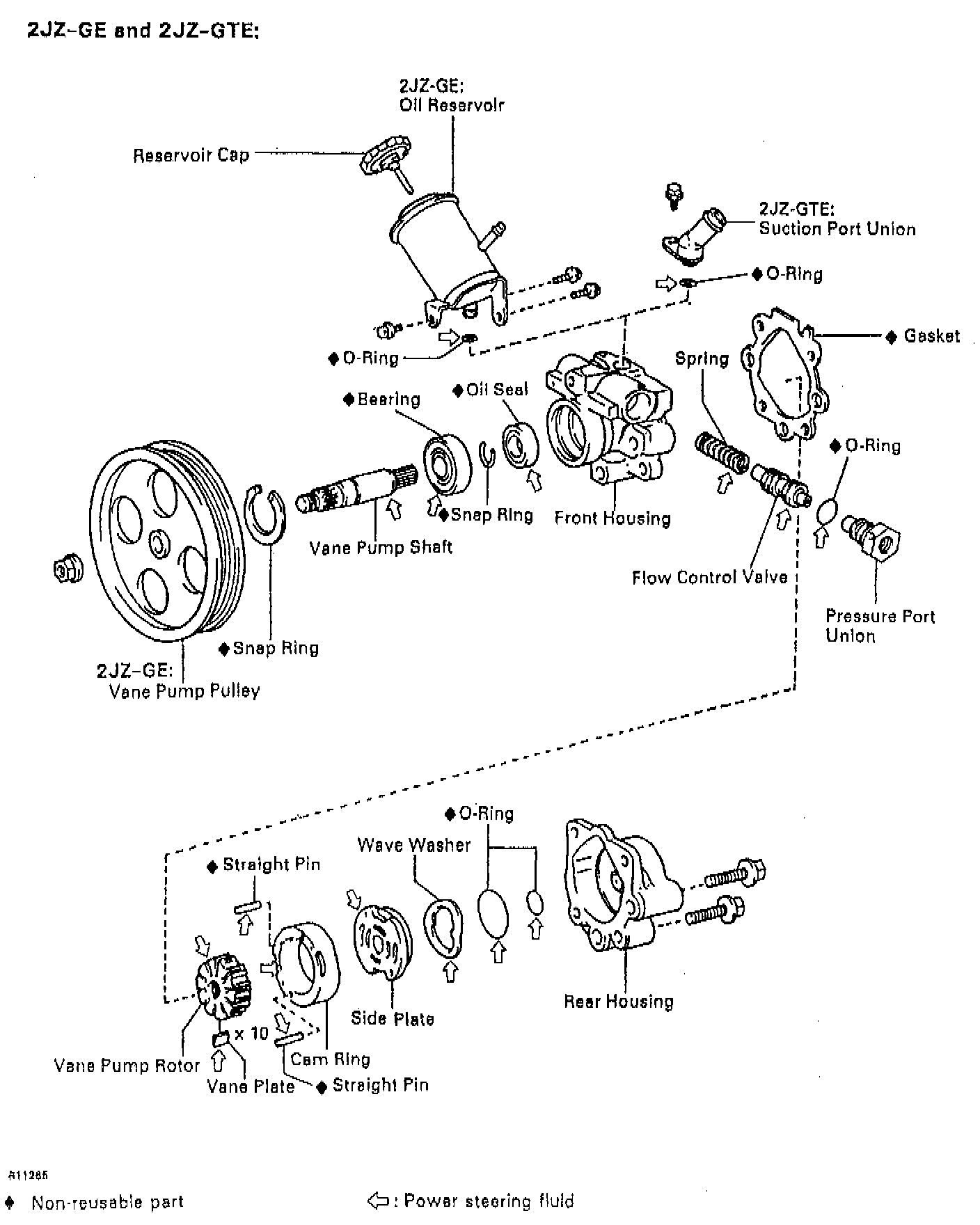

Power Steering Vane Pump / 2JZ-GE & 2JZ-GTE:
