Parking Brake Switch

PARKING BRAKE SWITCH CIRCUIT

CIRCUIT DESCRIPTION
When the parking brake pedal is depressed, the parking brake switch sends a signal to the ECU. When this signal is input to the ECU during cruise control driving, the ECU cancels cruise control.

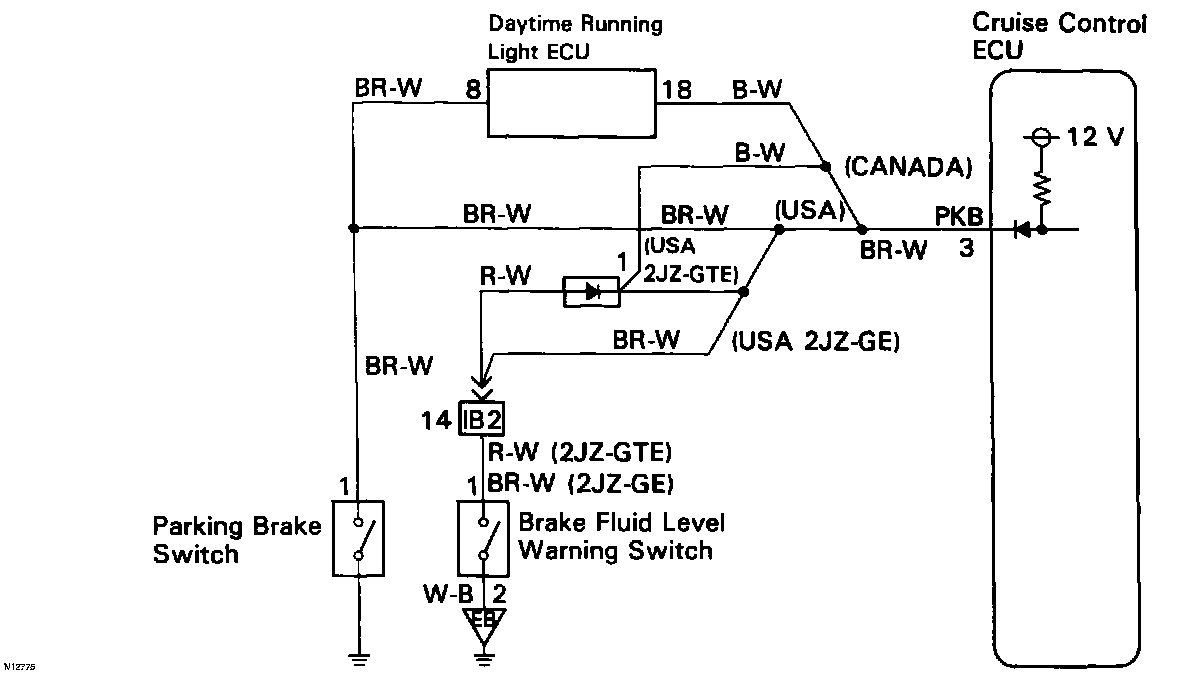

WIRING DIAGRAM

Step 1:

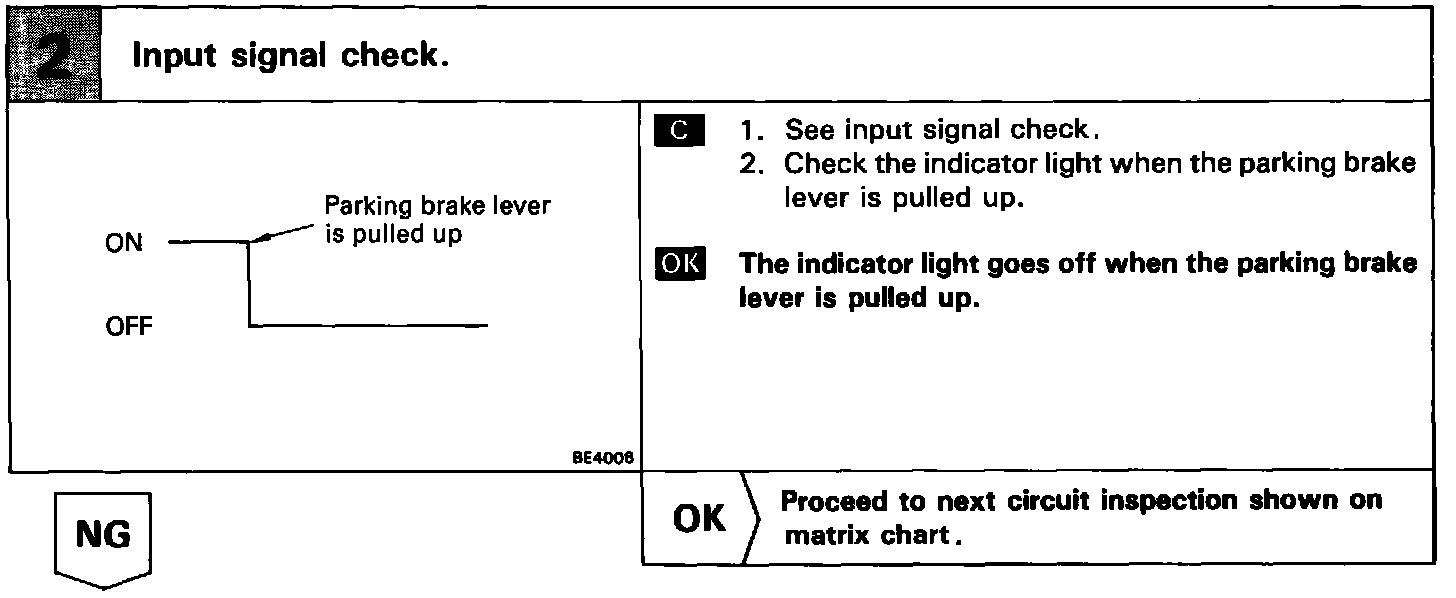

Step 2:

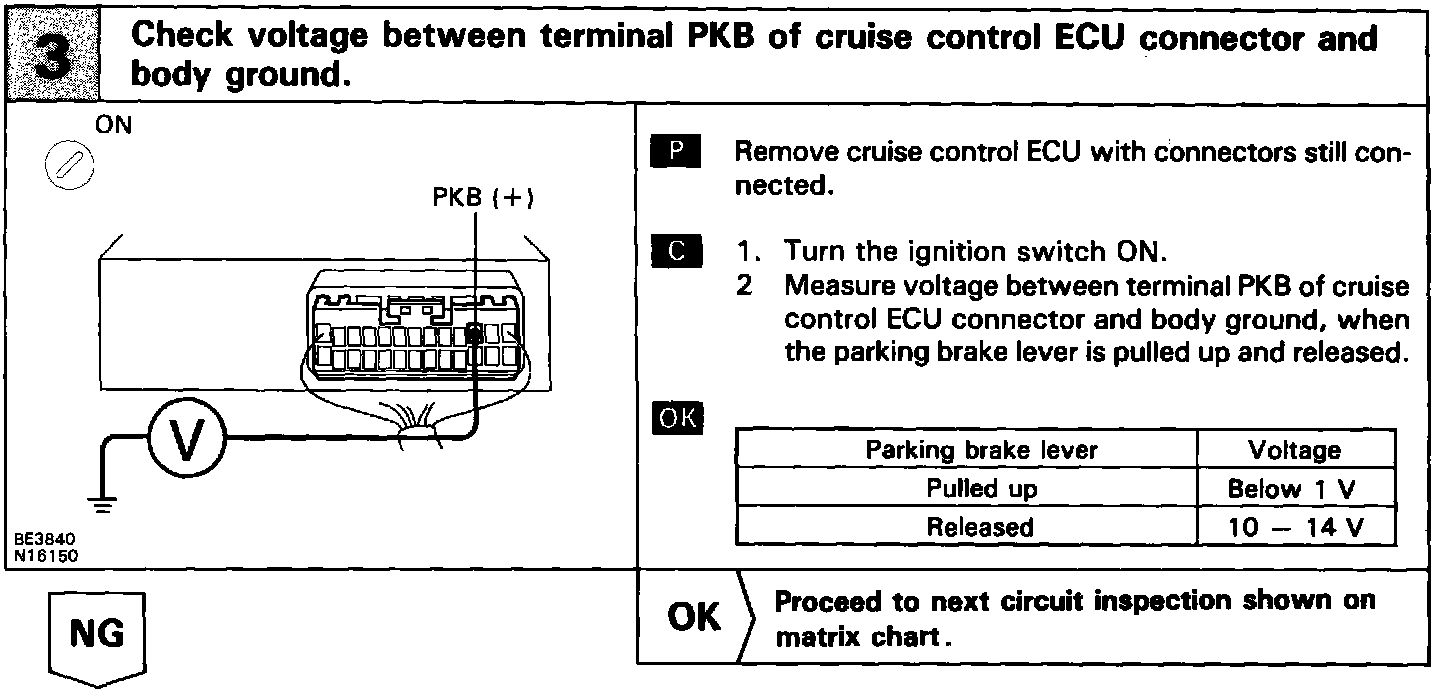

Step 3:

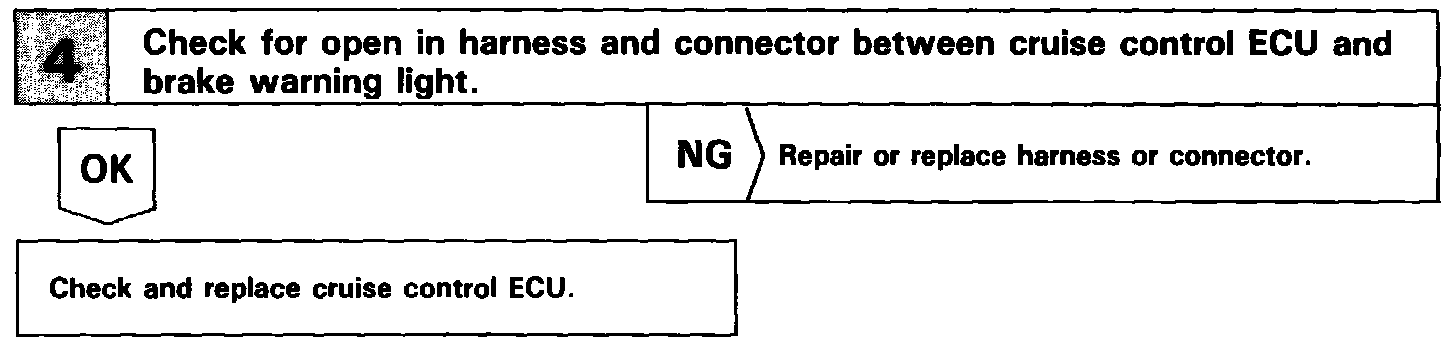

Step 4:

INSPECTION PROCEDURE
