Neutral Start Switch

PARK NEUTRAL POSITION SWITCH CIRCUIT (A/T). CLUTCH SWITCH CIRCUIT (M/T)

CIRCUIT DESCRIPTION

(A/T)
When the shift position is put in EXCEPT D position, a signal is sent from the park/neutral position switch to the ECU. When this signal is input during cruise control driving, the ECU cancels the cruise control.

(M/T)
When the clutch pedal is depressed, the clutch switch sends a signal to the FCU, When this signal is input to the ECU during cruise control driving, the ECU cancels cruise control.

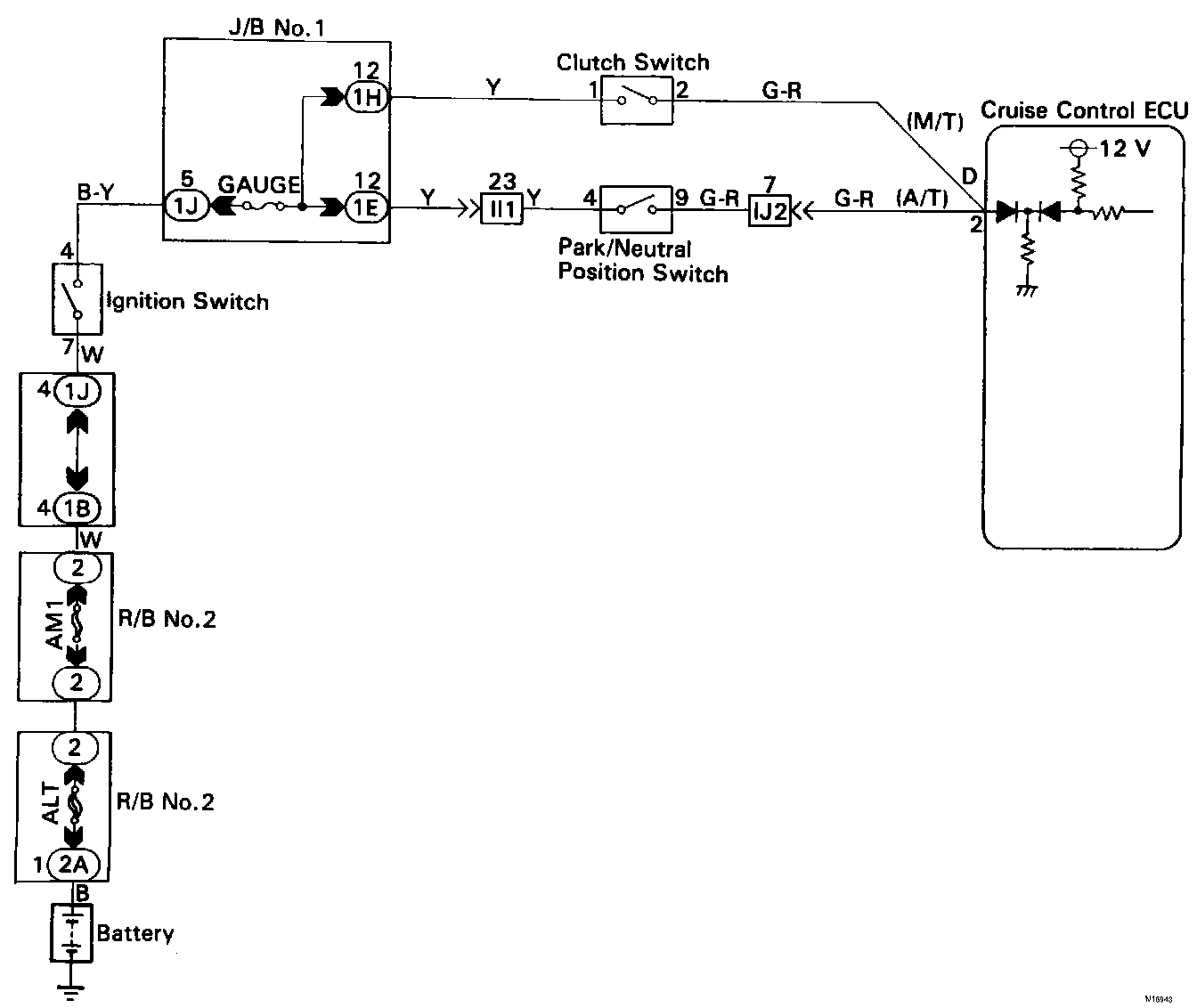

WIRING DIAGRAM

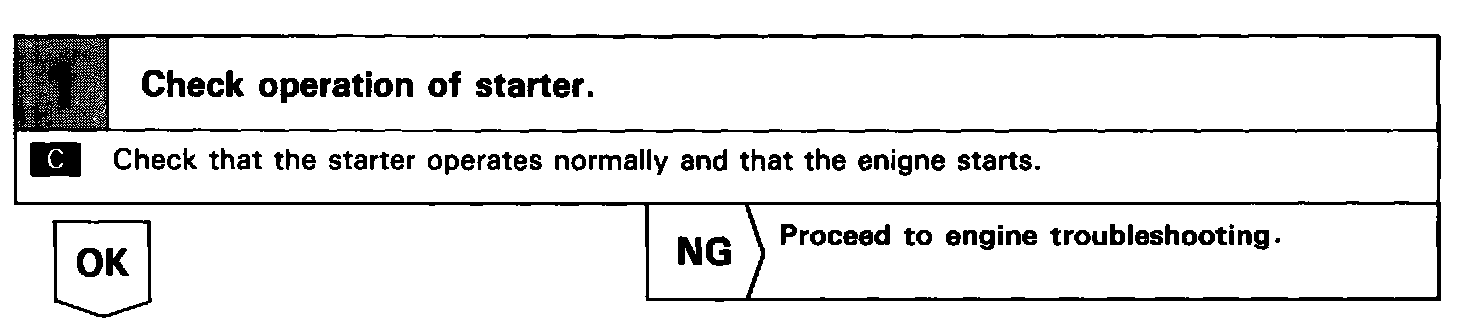

Step 1:

Step 2:

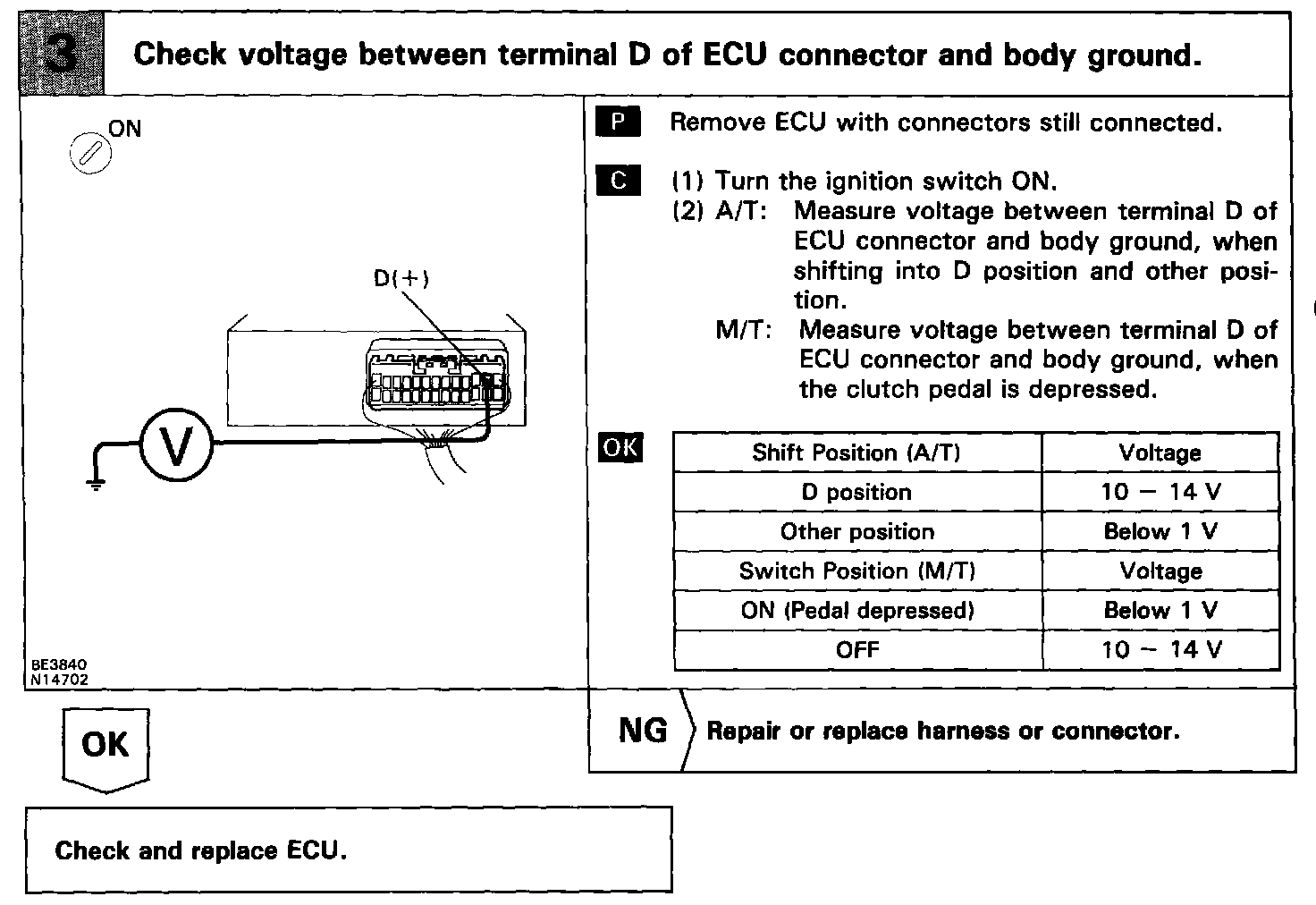

Step 3:

INSPECTION PROCEDURE
