Diagnosis Circuit

TC CIRCUIT

CIRCUIT DESCRIPTION
This circuit sends a signal to the ECU that diagnostic code output is required.

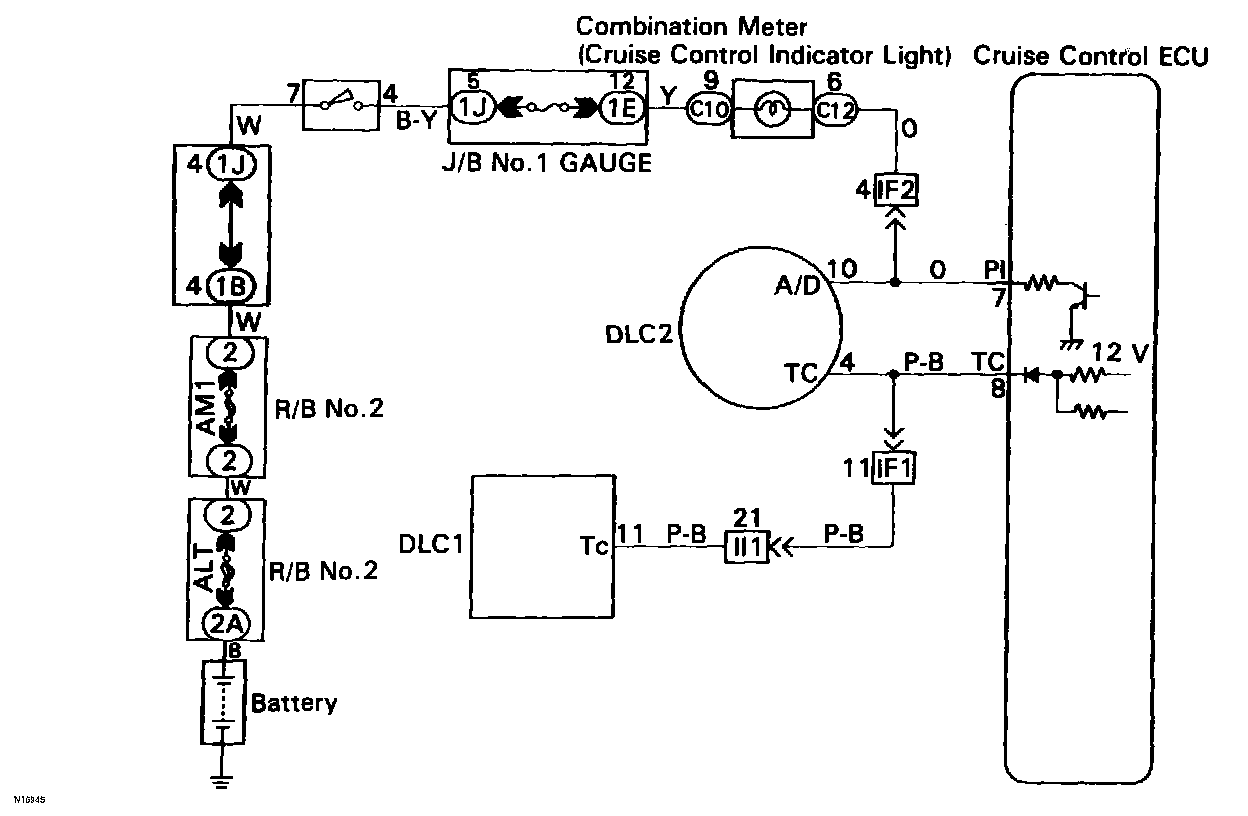

WIRING DIAGRAM

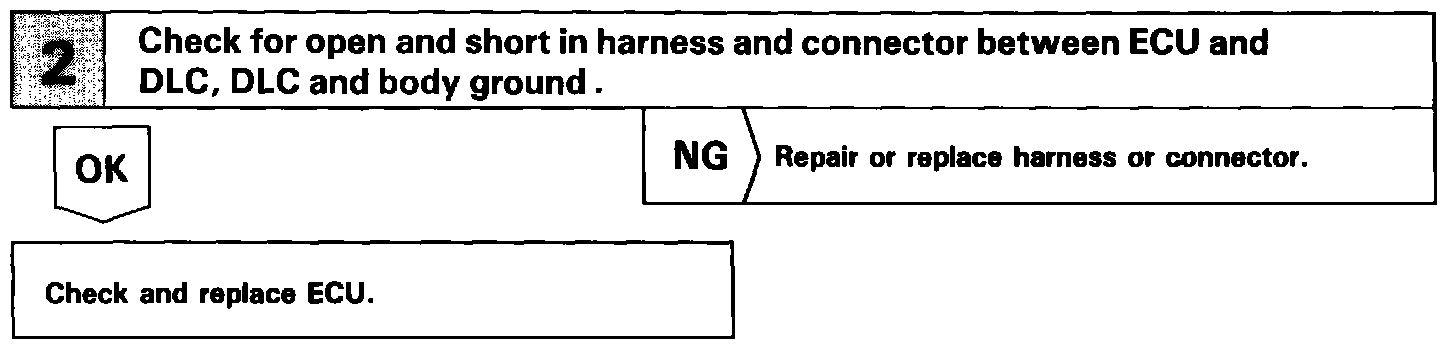

INSPECTION PROCEDURE
