Removal and Installation

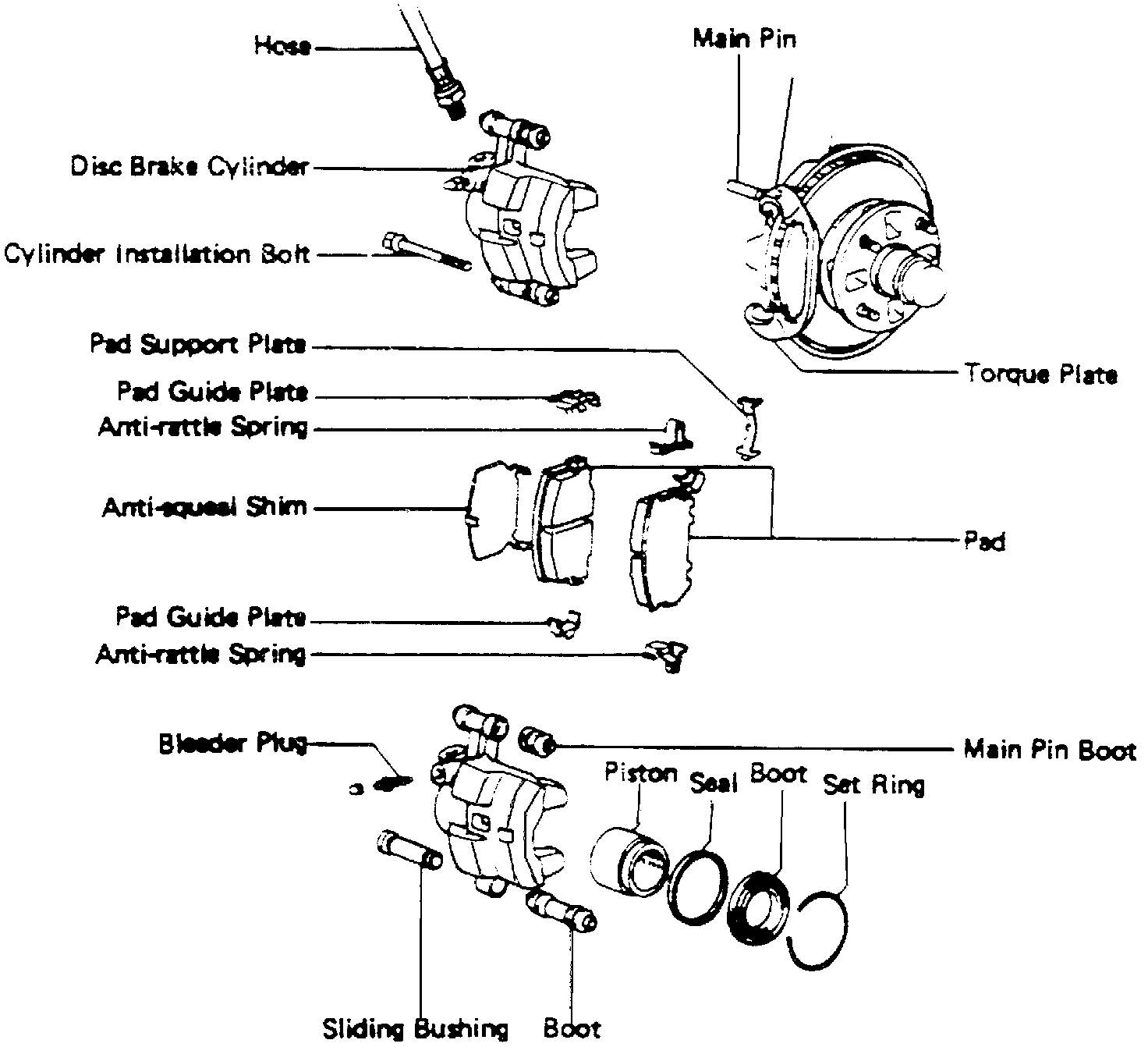

Fig. 11 Exploded View Of AD Disc Brake Assembly.:

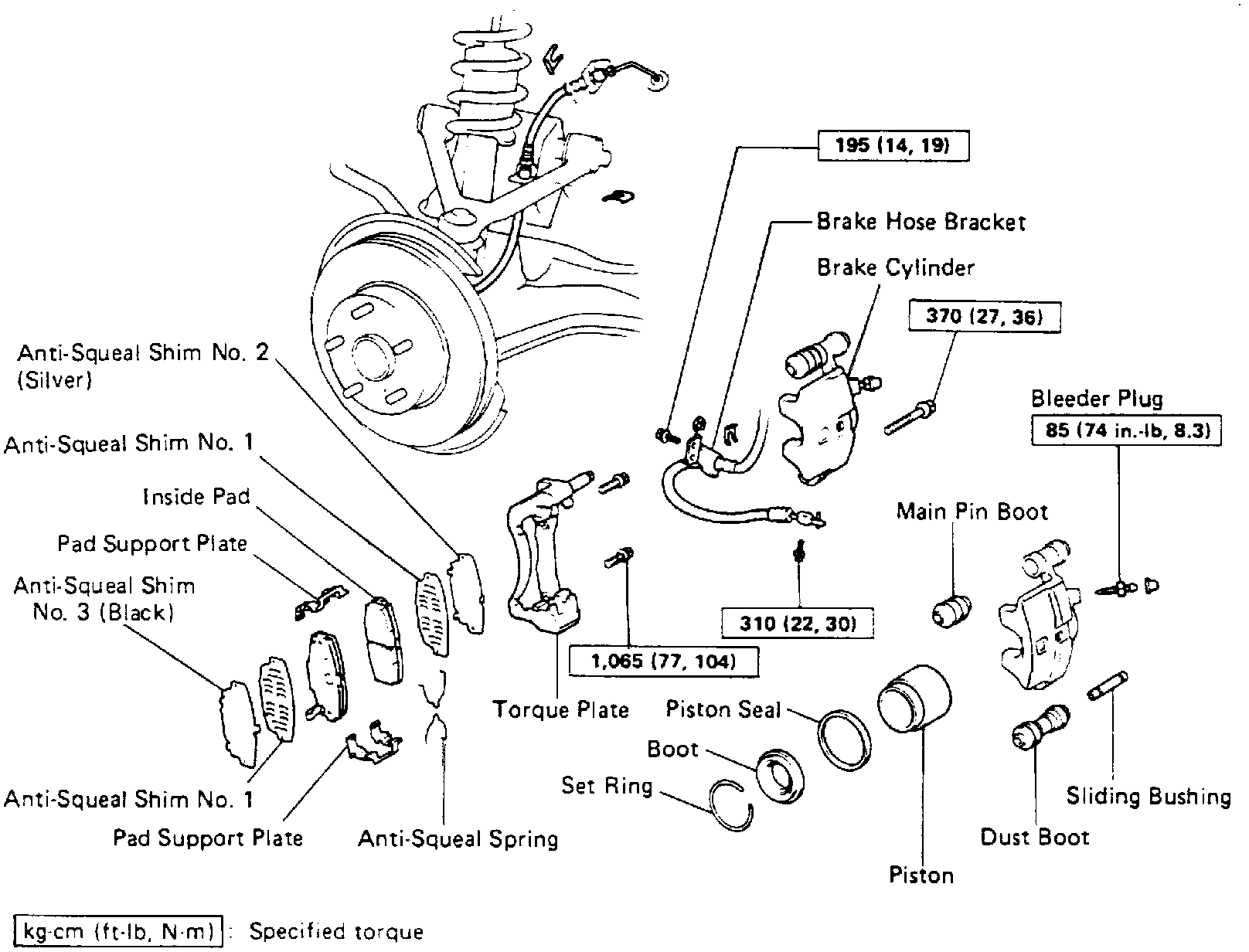

Fig. 12 Exploded View Of Front Disc Brake Assembly.:

1. Disconnect brake hydraulic hose at frame bracket, then at caliper.
2. Remove caliper attaching bolts, then lift caliper up and pull away from torque plate main pin, removing brake pads and components in the process, Figs. 11 and 12.
3. Reverse procedure to install.
