ABS w/o Traction Control

1. Turn the ignition switch ON.

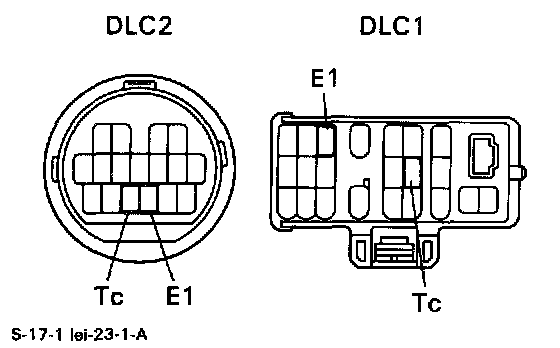

2. Using SST, connect terminals Tc and E1 of DLC2 or DLC1.

SST 09843-18020





3. Read the diagnostic trouble code from the TRAC indicator light on the combination meter.

HINT: If no code appears, inspect the diagnostic circuit or TRAC indicator light circuit.

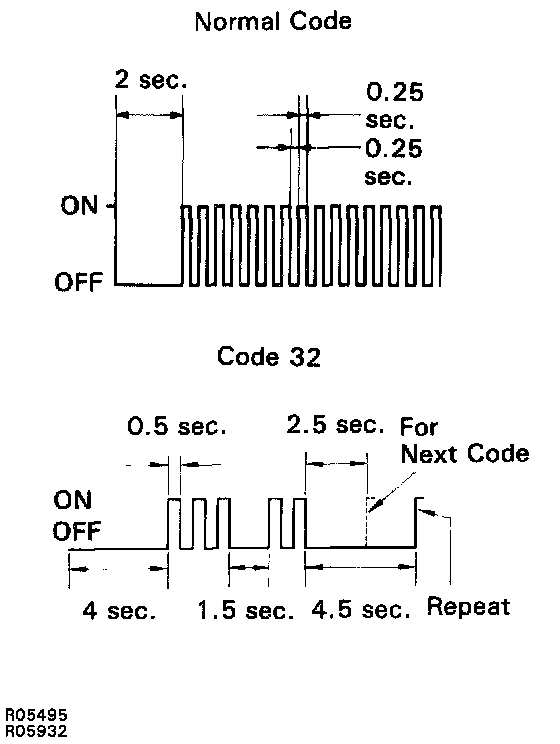

As an example, the blinking patterns for normal code and code 32 are shown.
4. Codes are explained in the code table. ABS W/Traction Control (TRAC)
5. After completing the check, disconnect terminals Tc and E1, and turn off the display.

HINT: If 2 or more malfunctions are indicated at the same time, the lowest numbered diagnostic trouble code will be displayed first.
