ABS w/o Traction Control

1. Using SST, connect terminals Tc and E1 of DLC2 or DLC1.

SST 09843-18020

2. IG switch ON.

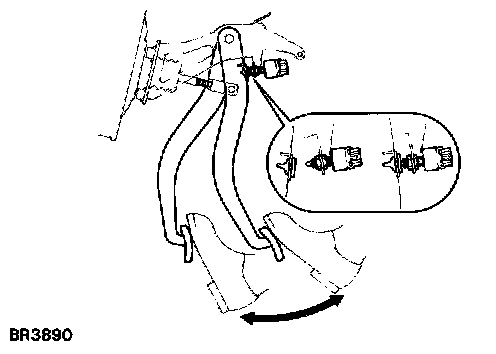

3. Clear the diagnostic trouble codes stored in ECU by depressing the brake pedal 8 or more times within 3 seconds.
4. Check that the warning light shows the normal code.
5. Remove the SST from the terminals of DLC2 or DLC 1.





6. Connect the Short Pin to DLC1.

HINT: Cancellation can also be done by removing the ECU-B fuse, but in this case, other memory systems will also be cancelled out.
