Stop Light Switch Circuit

The stop light switch senses whether the brake pedal is depressed or released, and sends a signal to the ECU.

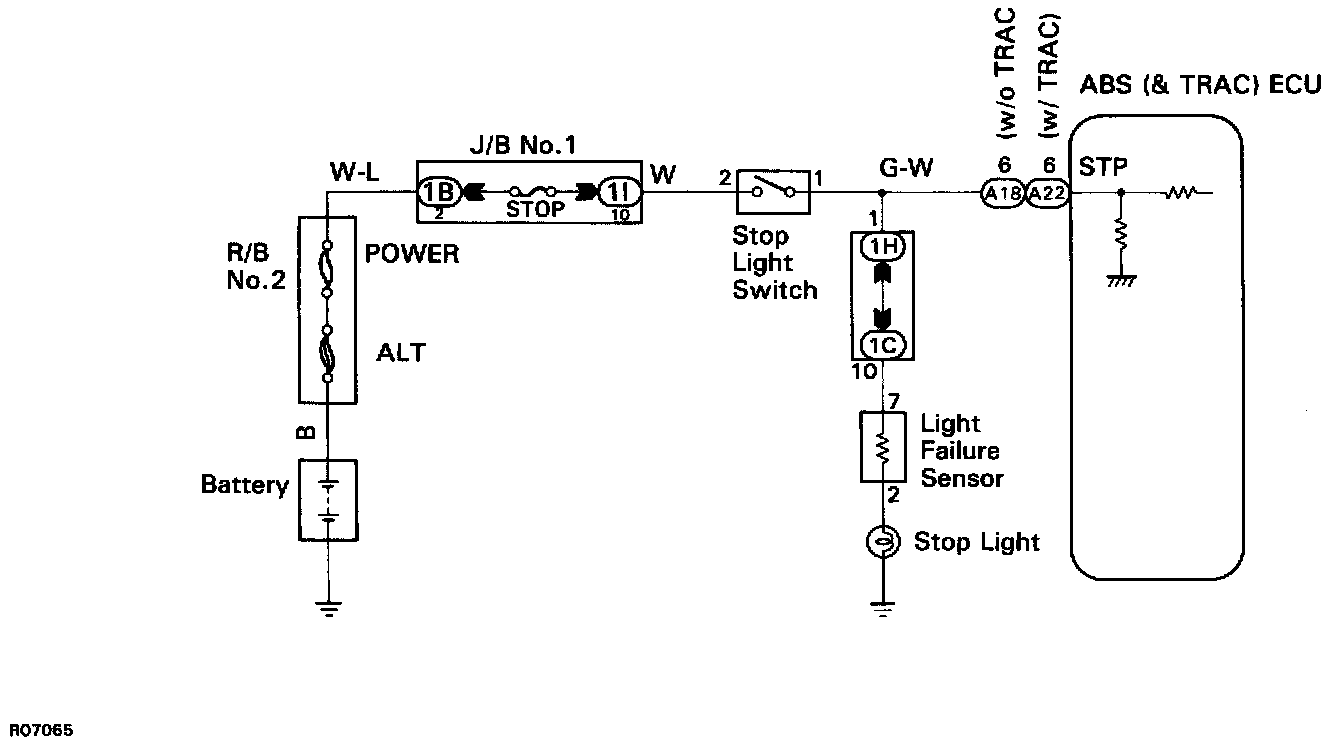

Wiring Diagram:

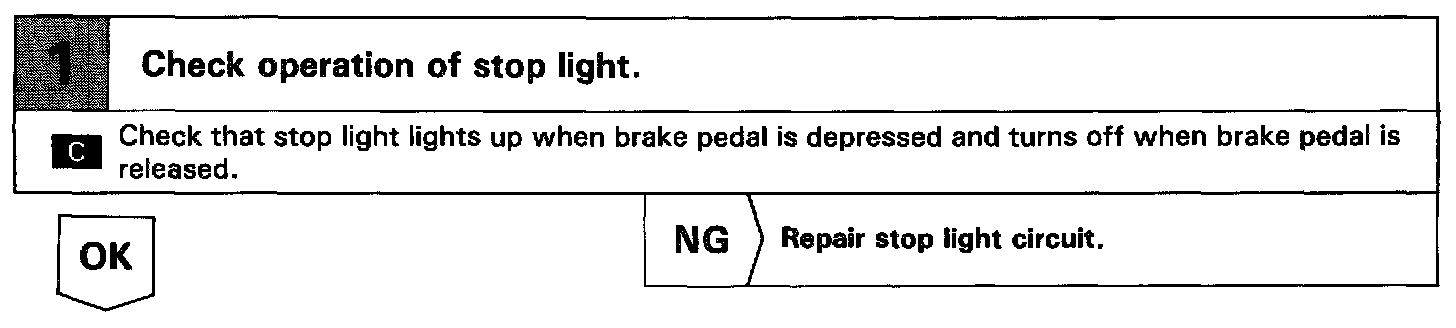

Diagnostic Chart - Step 1:

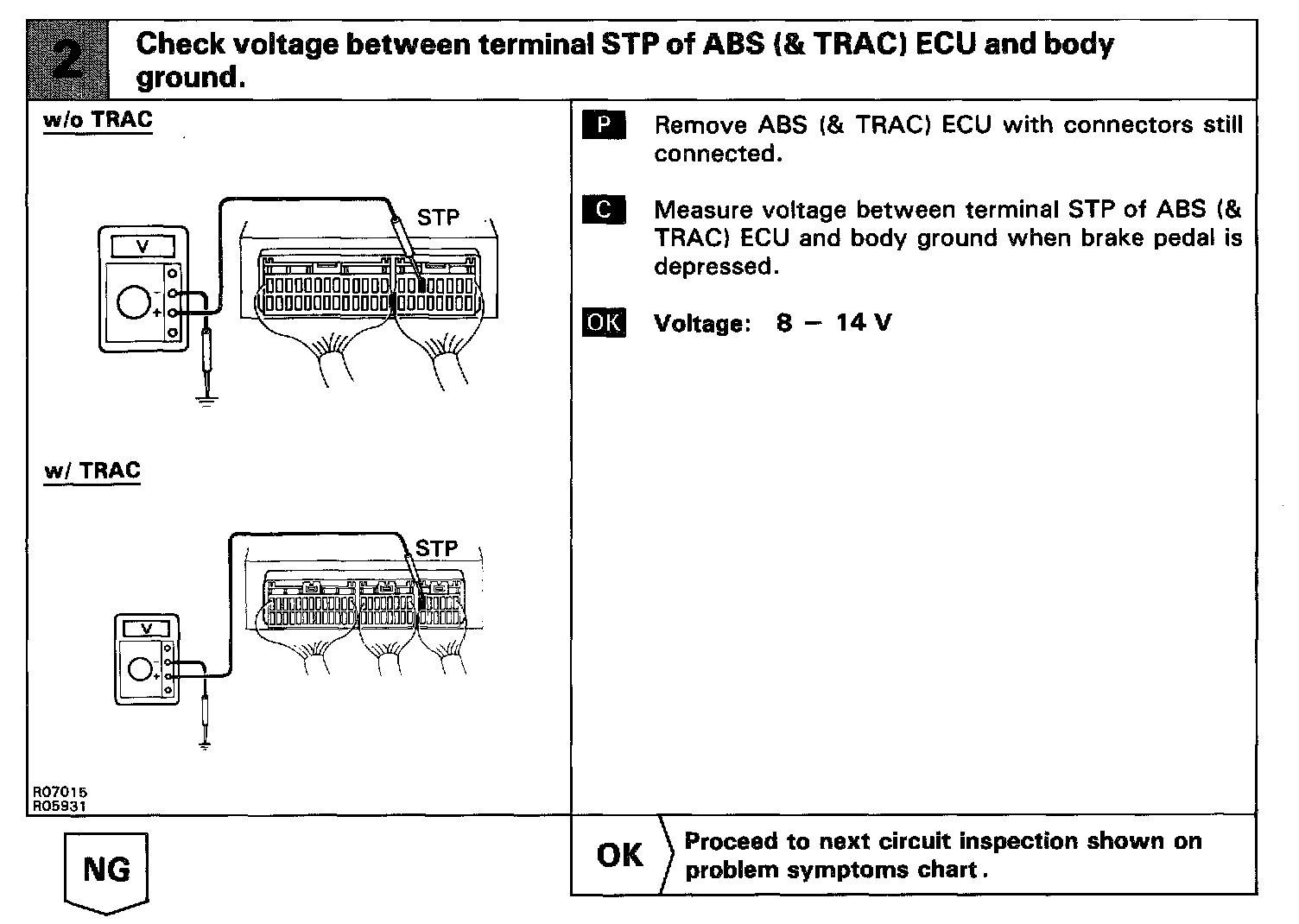

Step 2:




Step 3:
