TRAC Indicator Check

When the ignition switch is turned ON, check that the TRAC indicator light goes on for 3 seconds.

HINT: If the indicator check result is not normal, proceed to troubleshooting for the TRAC indicator light circuit.

The TRAC indicator blinks during TRAC operation.

This indicator is also used for warnings when the trouble occurs and for displaying diagnostic trouble codes.

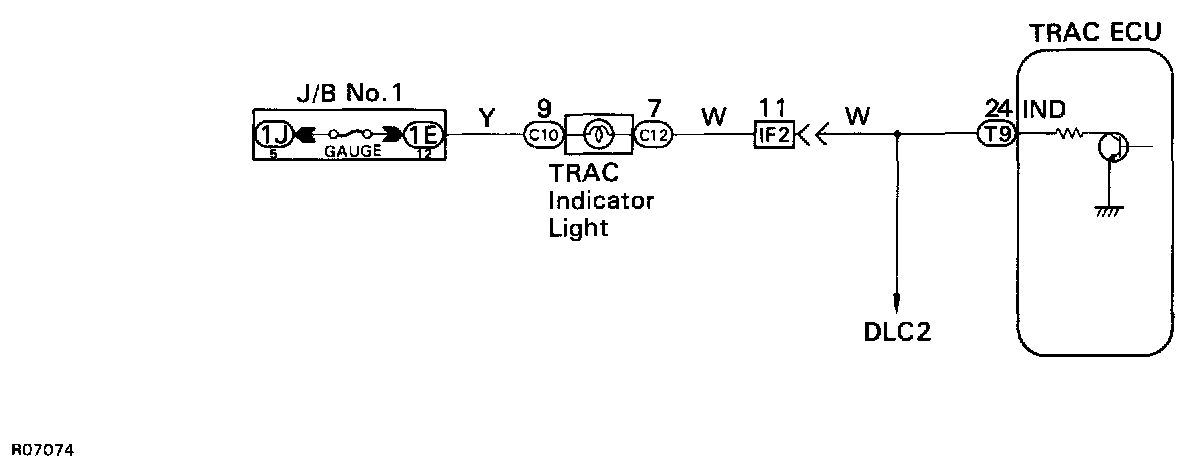

Wiring Diagram:

Troubleshoot in accordance with flow chart instructions for each trouble symptom.
TRAC Indicator light does not light up:
- Troubleshoot the combination meter.

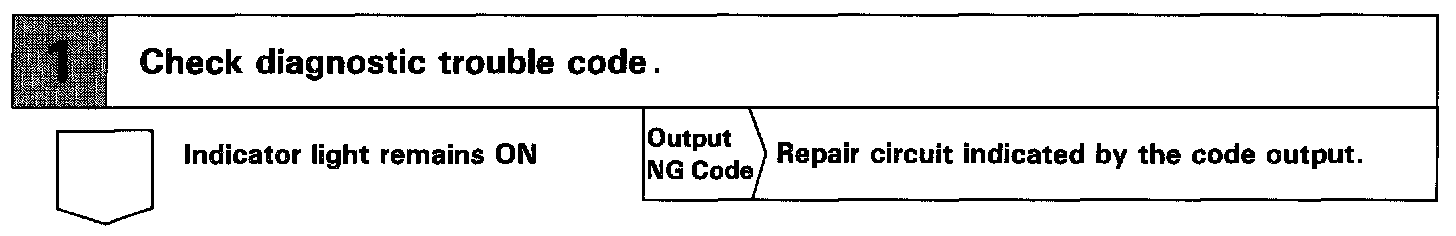

Inspection Procedure - Step 1:

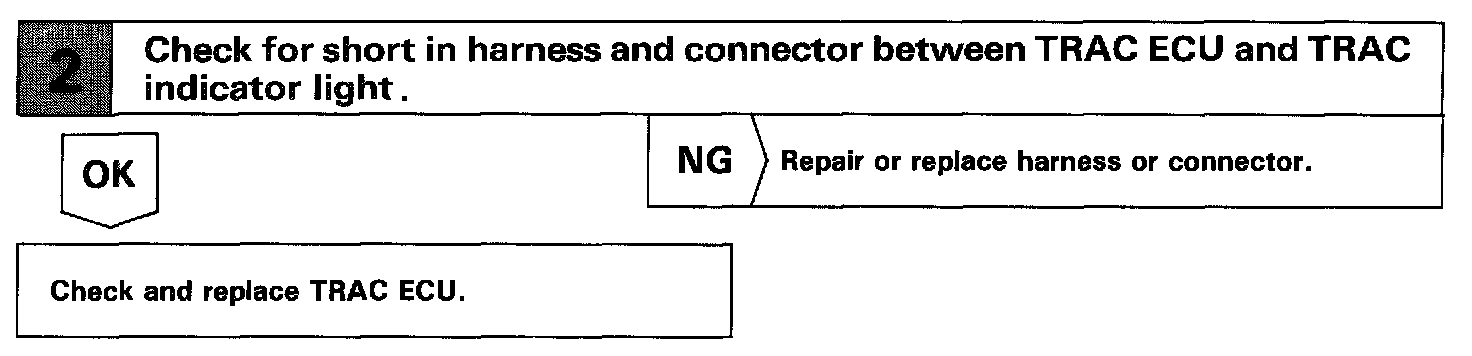

Step 2:

TRAC Indicator light remains ON
