DTC 44

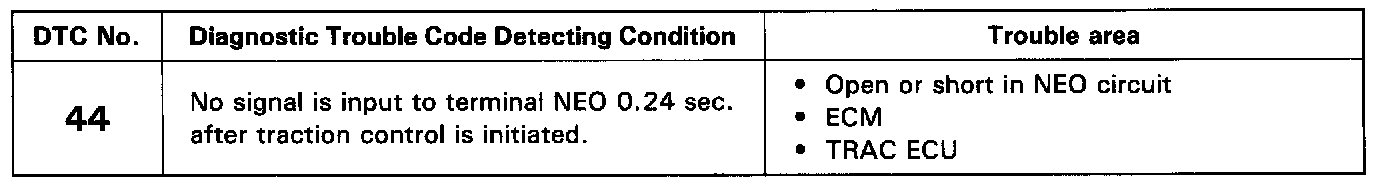

DTC 44 NE Signal Circuit





The TRAC ECU receives engine speed signals (NE signals) from the ECM.

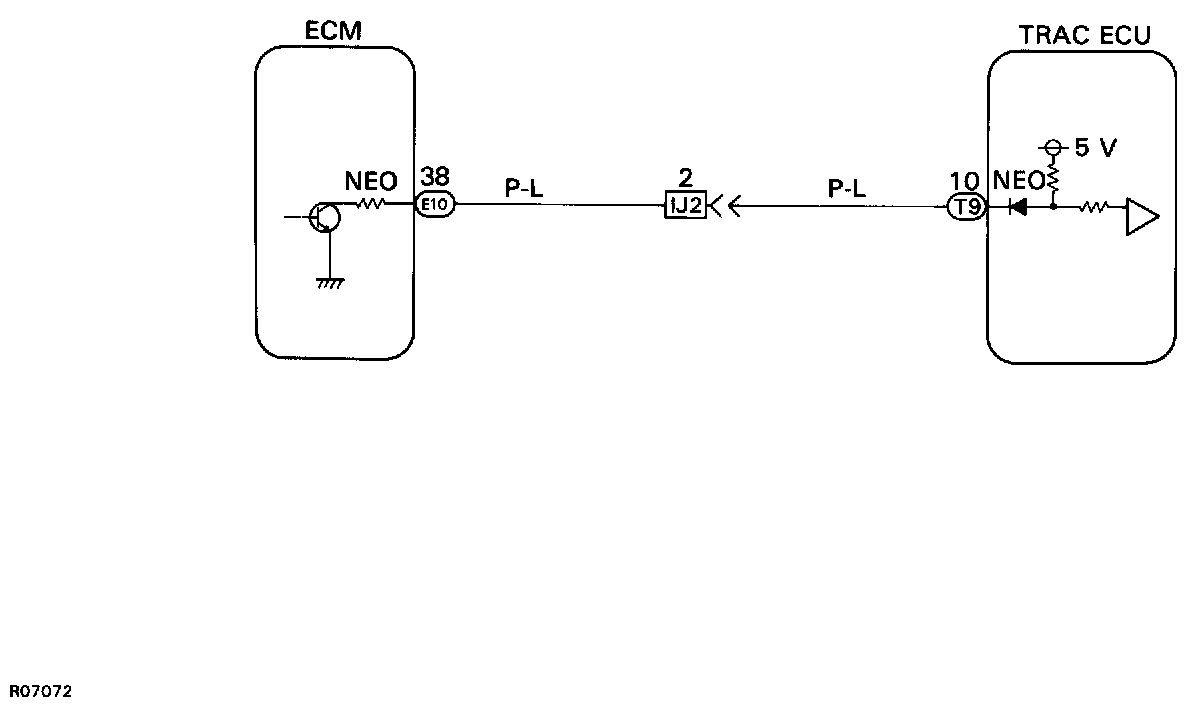

Wiring Diagram:






Diagnostic Chart - Step 1:

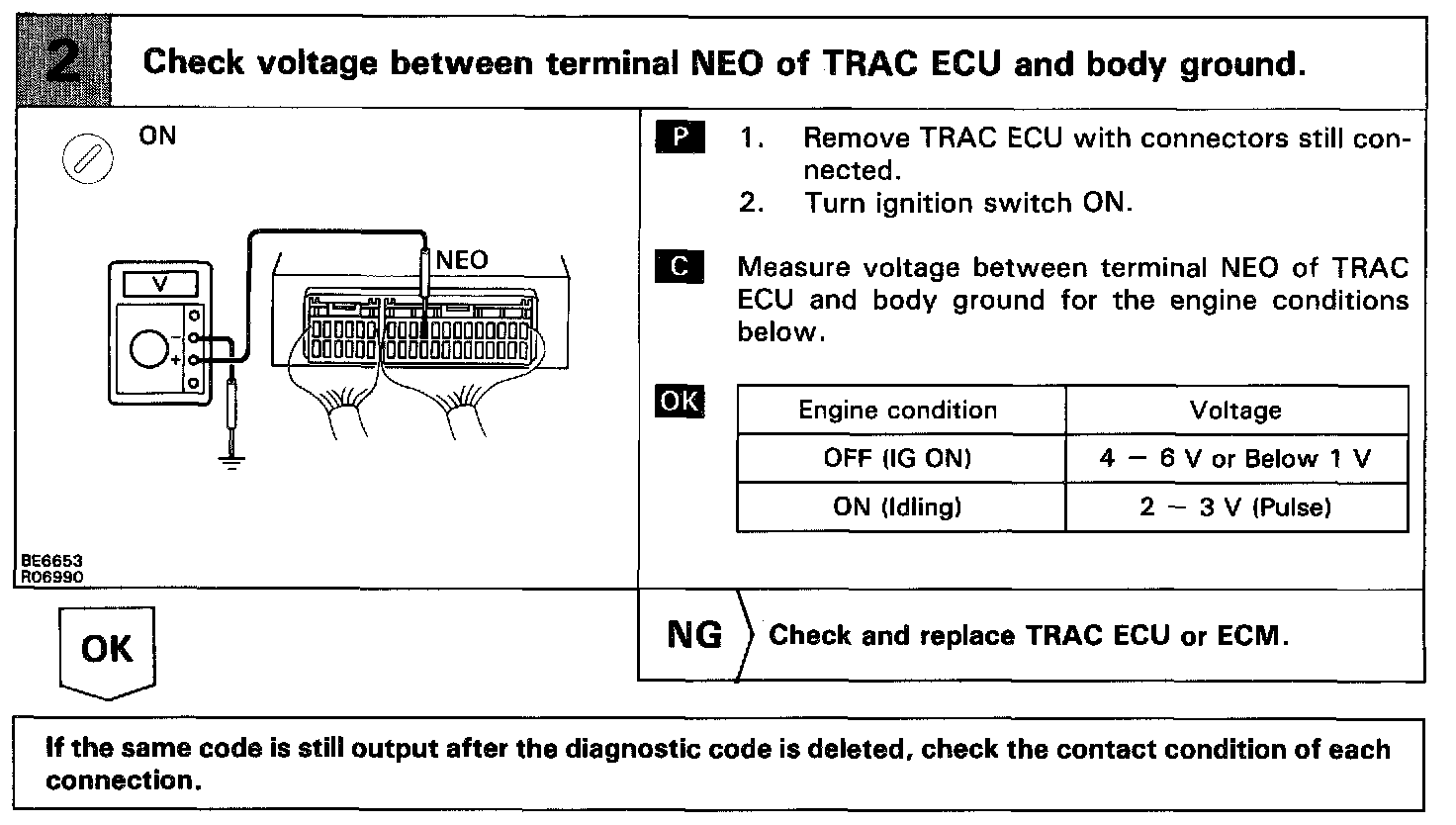

Step 2:
