TRAC Sub-Throttle Actuator Circuit

DTC 24 Sub-Throttle Position Sensor Leakage/Valve Stuck





The sub-throttle actuator operates in accordance with signals from the ECU, controlling the opening and closing of the sub-throttle valve.

Wiring Diagram:

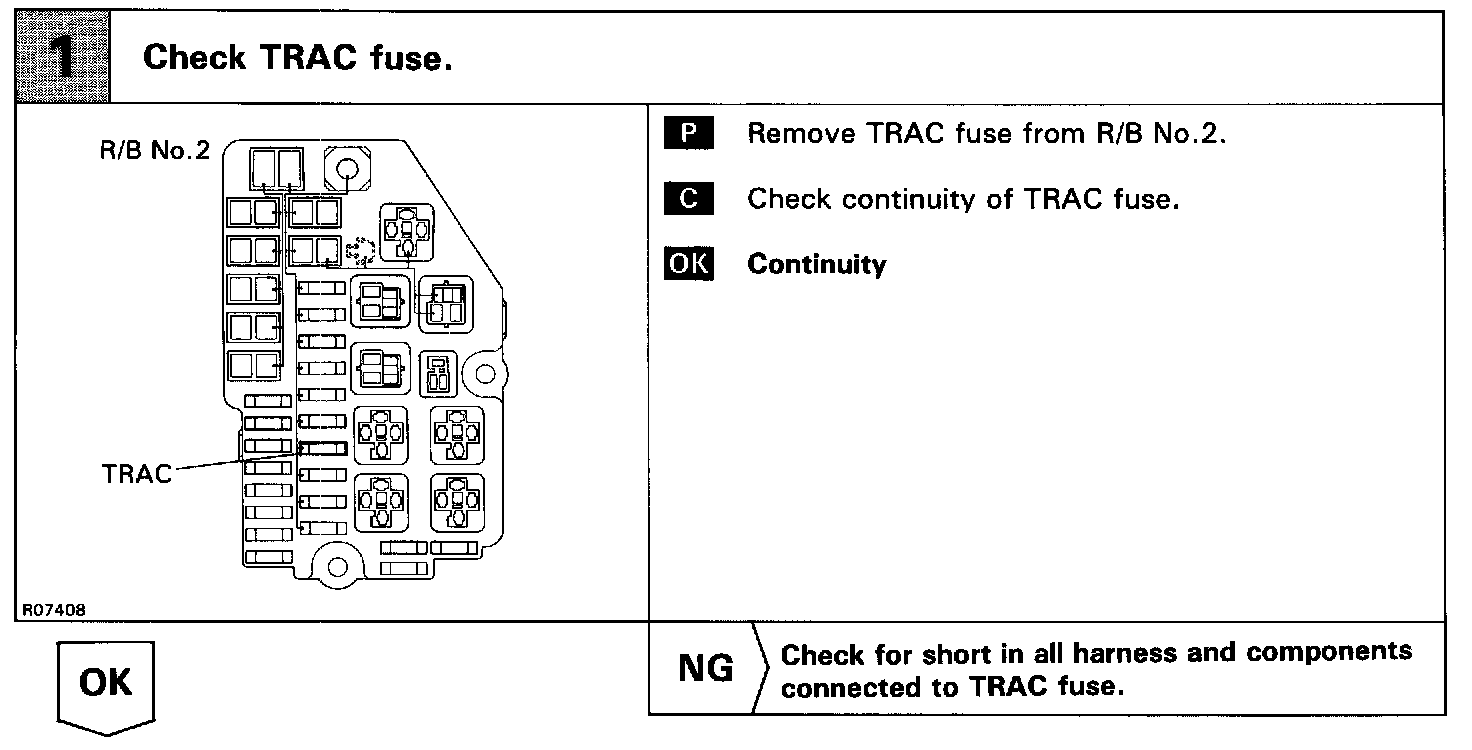

Inspection Procedure - Step 1:

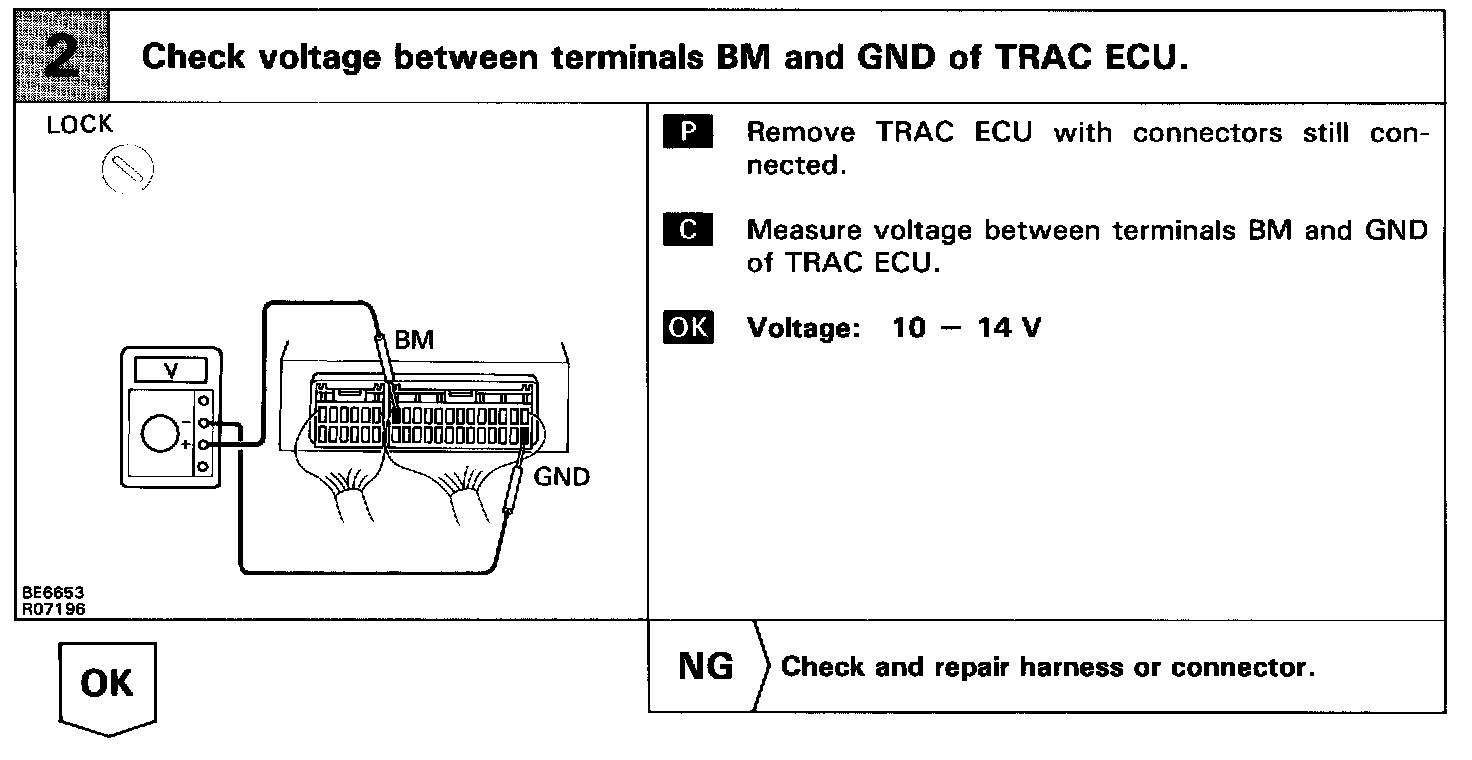

Step 2:

Step 3:

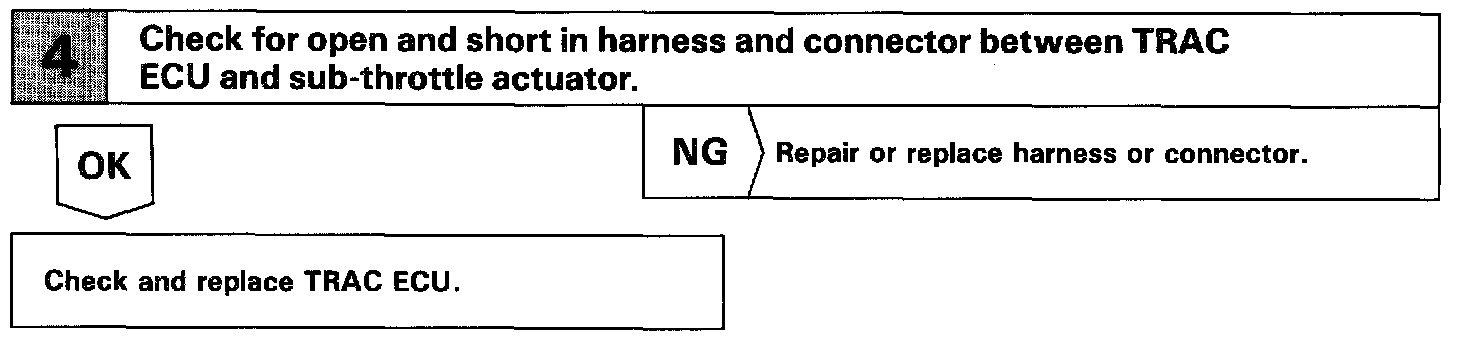

Step 4:
