Supra L6-183 2997cc 3.0L DOHC Turbo (2JZ-GTE)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Restraint Systems
Restraint Systems

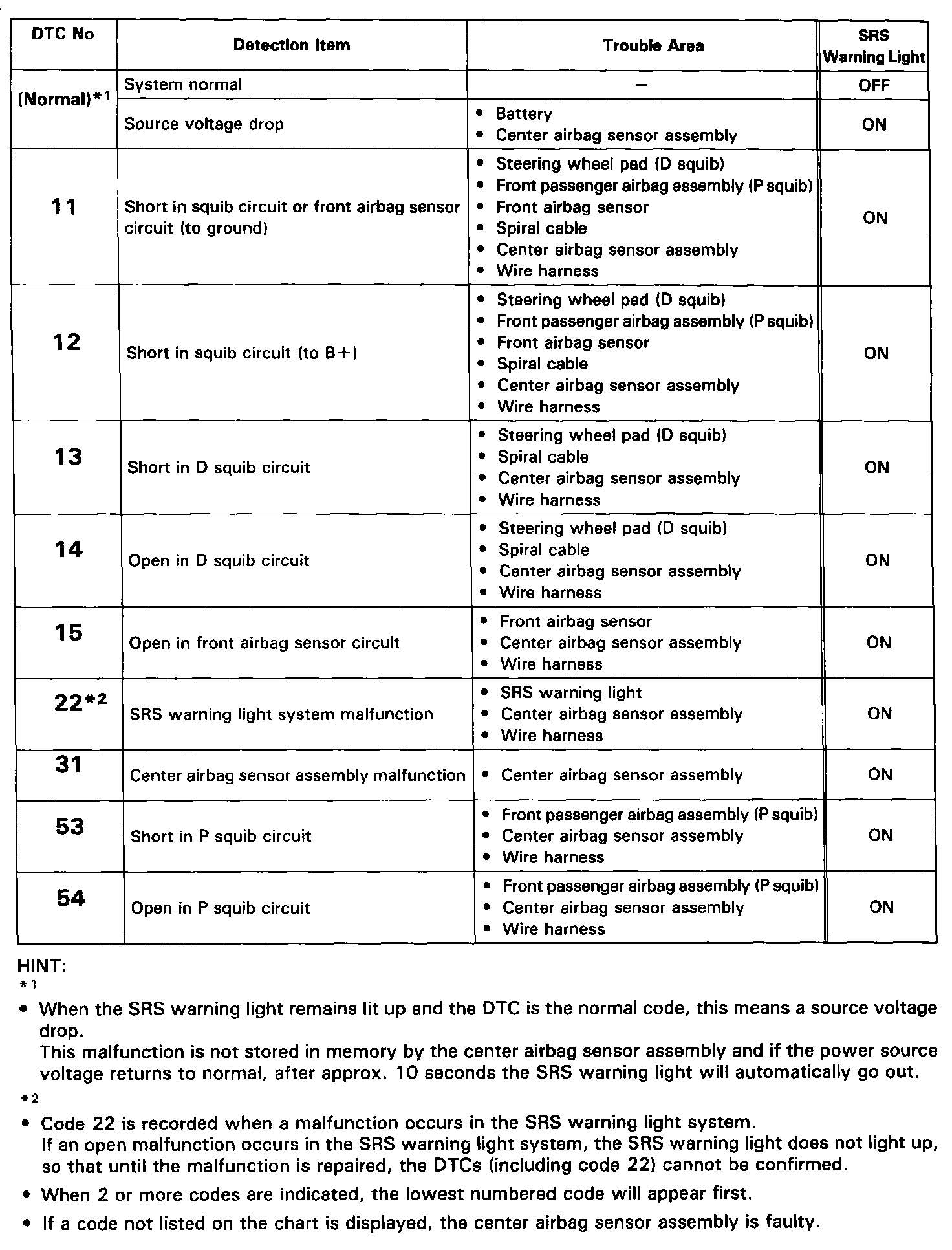

DTC CHART
If a malfunction code is displayed during the DTC check, check the circuit listed for that code in the table above.
