Wiper Motor: Service and Repair

1. On models with coded audio anti-theft systems, refer to Technician Safety Information for code procedures.
2. On all models, remove wiper arms, Fig. .

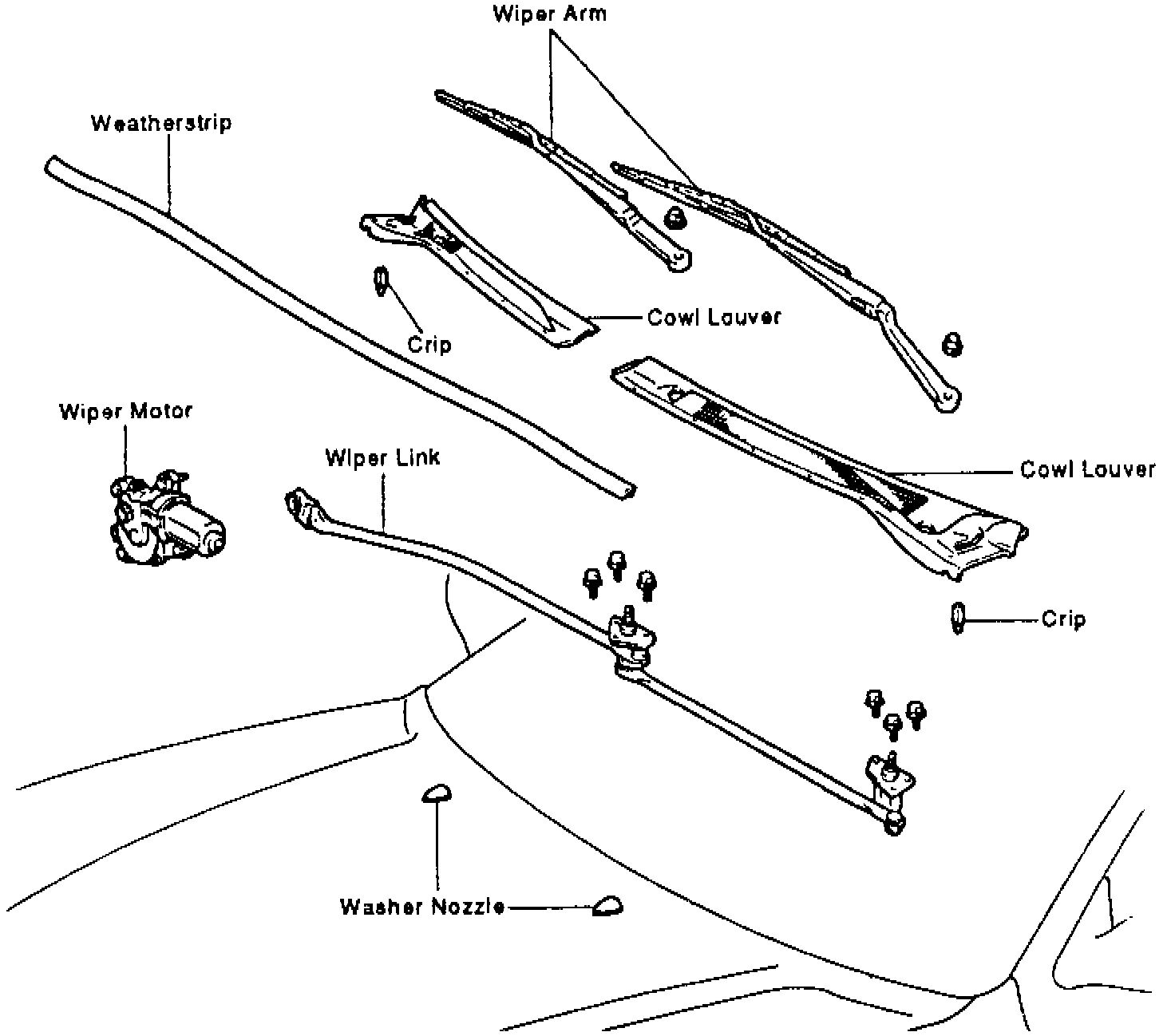

Fig. 14 Wiper Motor Replacement:

3. Carefully lift weather strip away from cowl trim.
4. Remove clips, then slide cowl trims forward.
5. Disconnect wiper linkage from wiper motor
6. Remove wiper motor mounting bolts, then the wiper motor.
7. Reverse procedure to install. Reset audio anti-theft system, if necessary, as outlined under Technician Safety Information.
