Home >> Toyota >> 1996 >> Avalon V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Tools and Equipment

Automatic Transmission/Transaxle: Tools and Equipment

PREPARATION

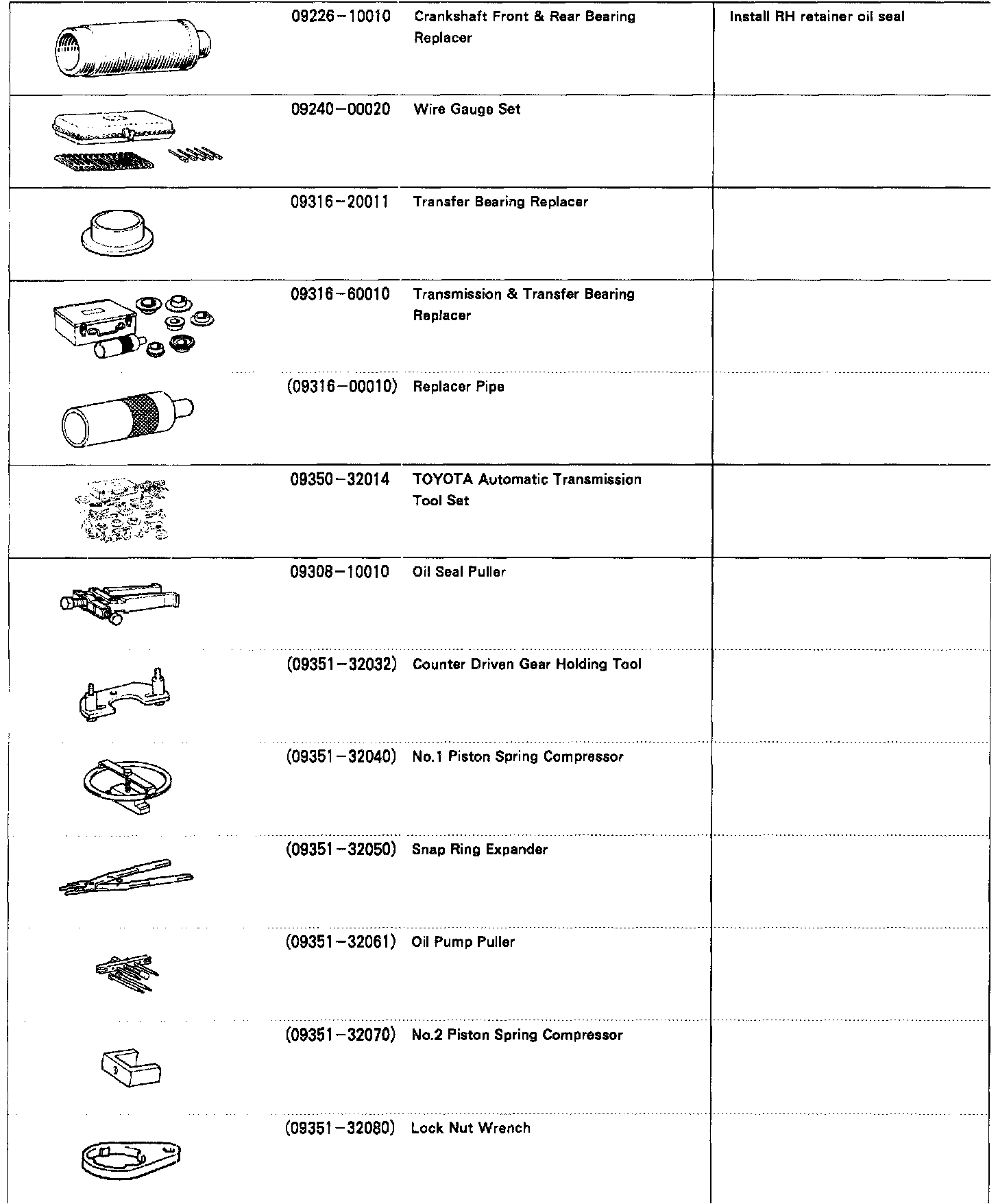

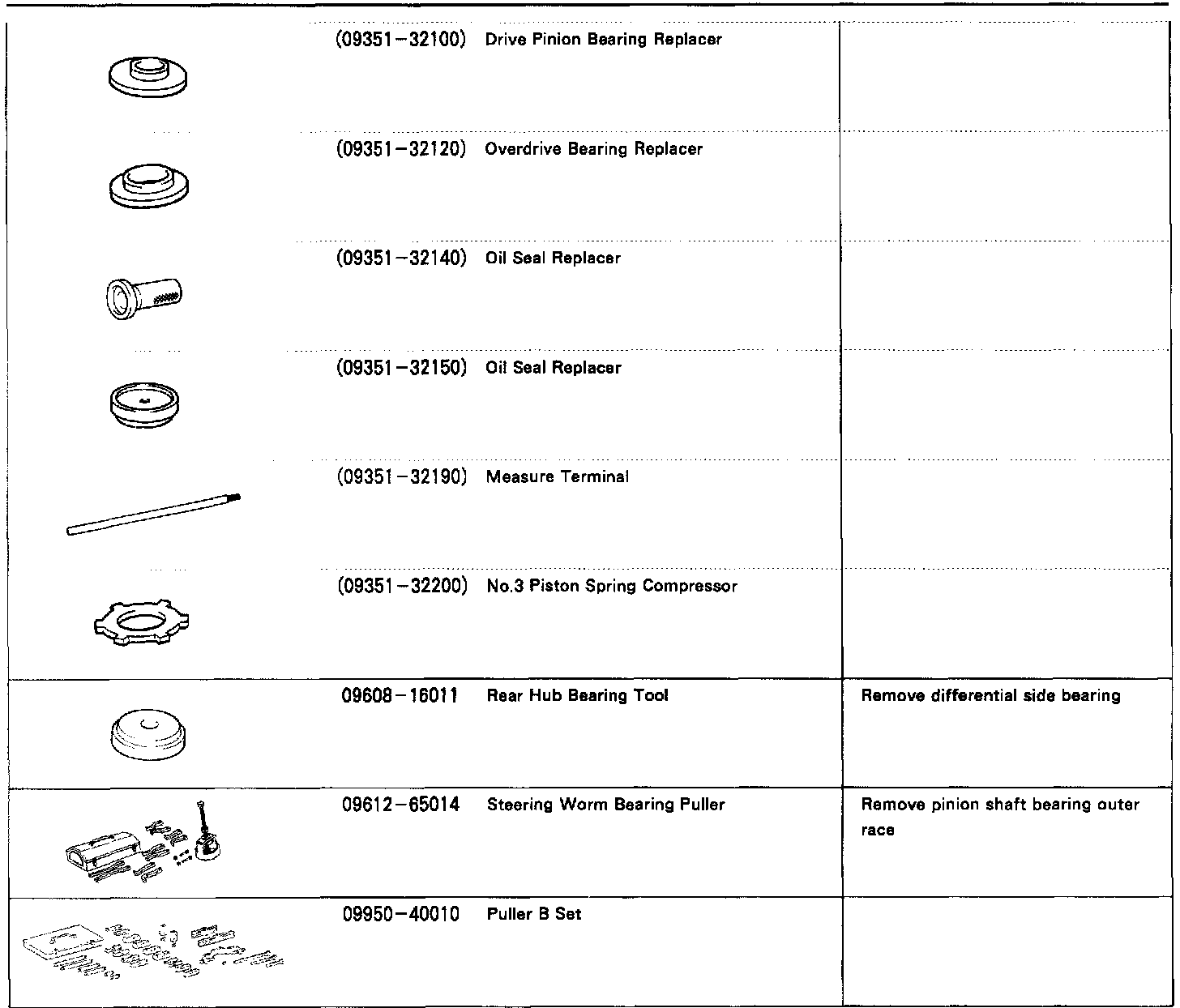

SST (Special Service Tools)

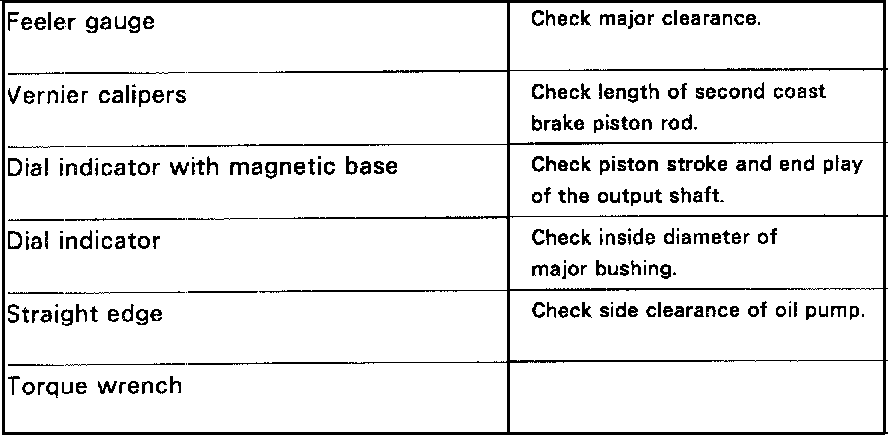

Recommended Tool





Equipment

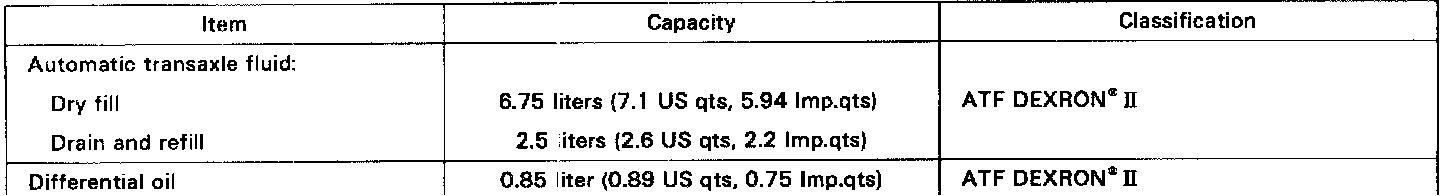

Lubricant

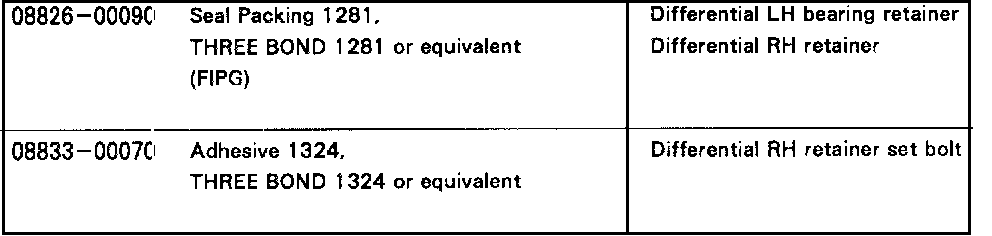

SSM (Special Service Materials)
