Home >> Toyota >> 1996 >> Avalon V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> On-Vehicle Repair

On-Vehicle Repair

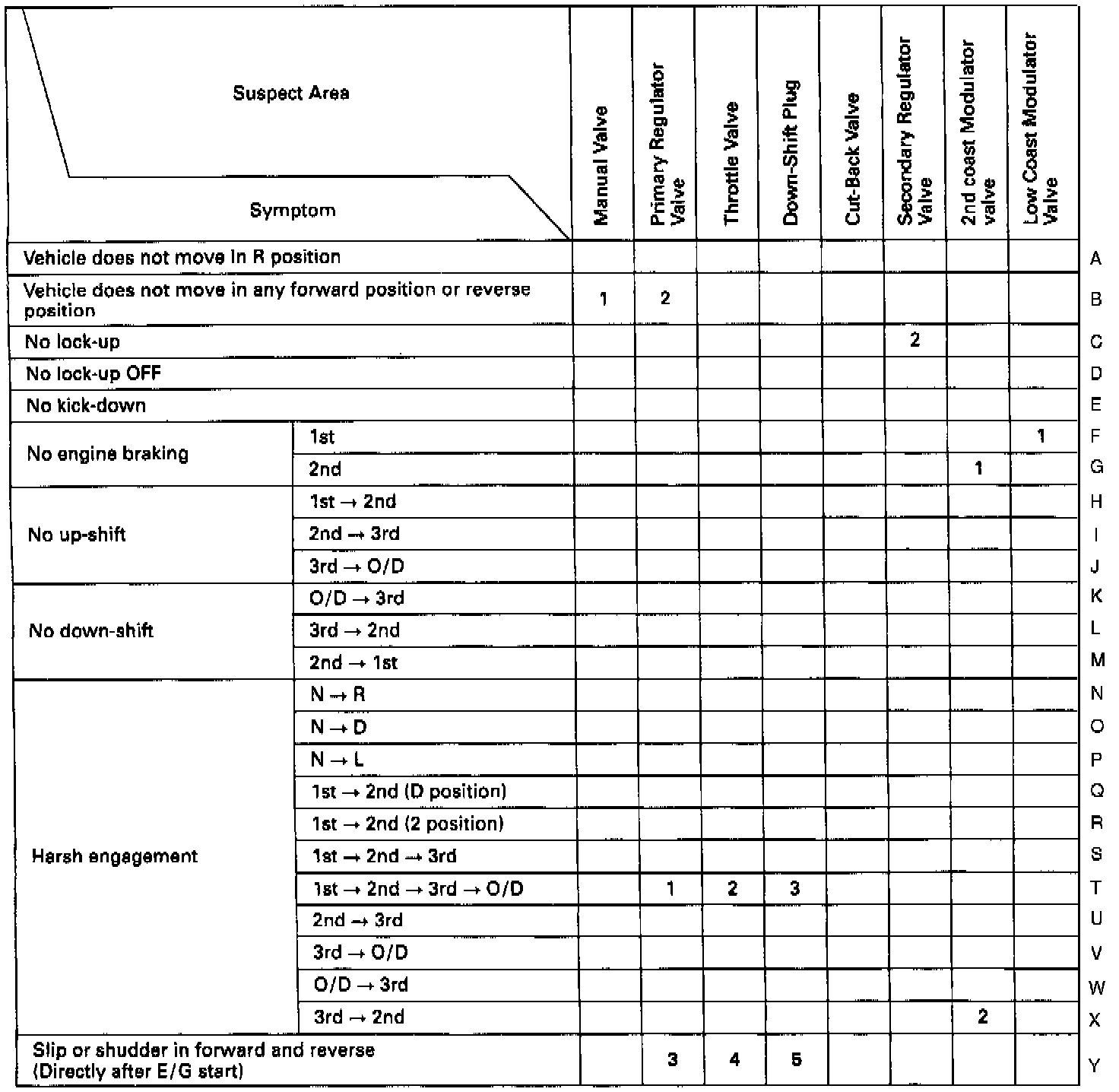

On-Vehicle Repair Matrix (Part 1 Of 2):

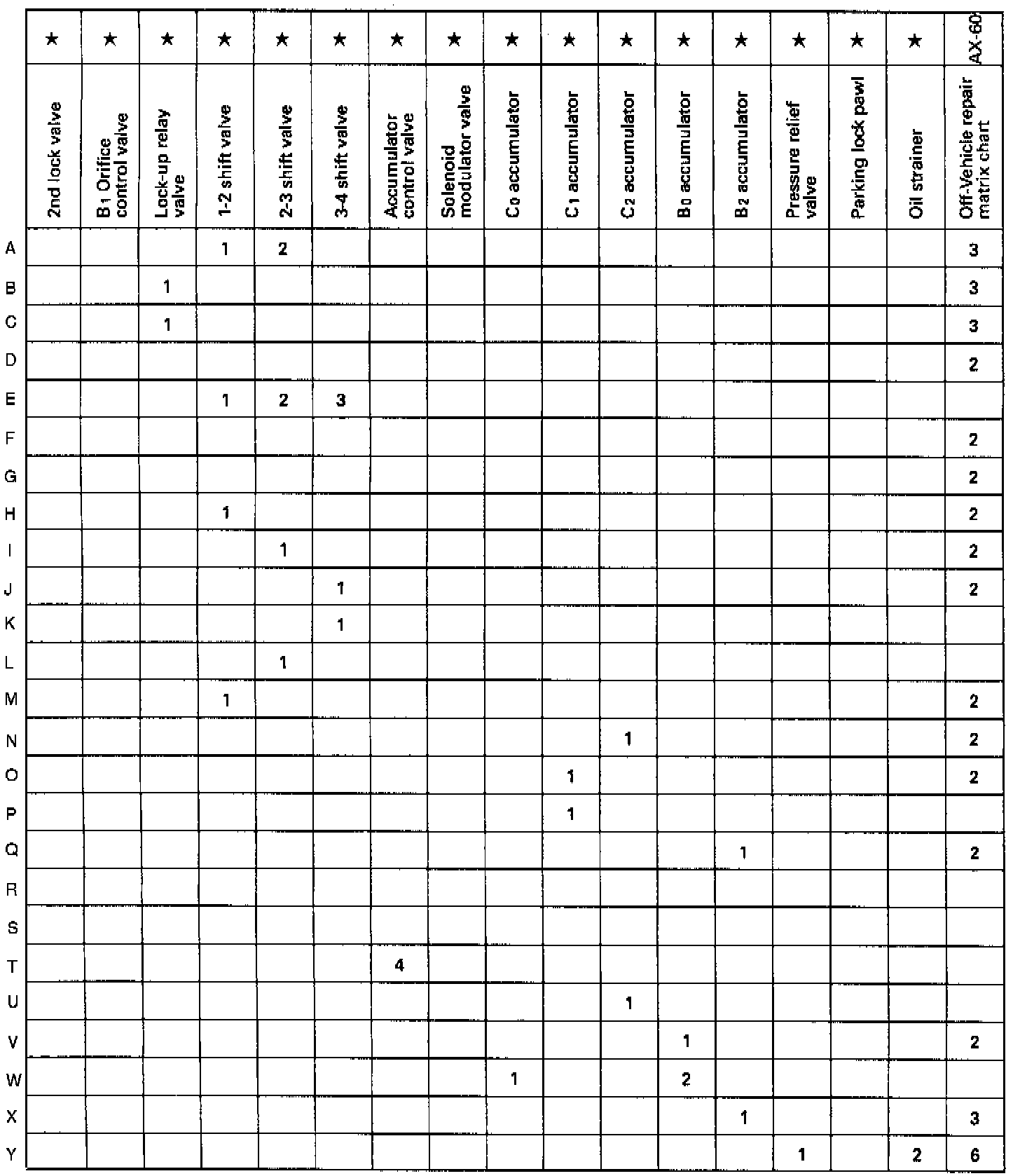

On-Vehicle Repair Matrix (Part 2 Of 2):
