A/T - Direct Clutch Improvements

REF.: TRANSMISSION & CLUTCH

NO.: TC002-96

DATE: JUNE 21, 1996

MODEL: CAM & AVL

DIRECT CLUTCH (C2) IMPROVEMENTS - A541E ATM

Direct Clutch (C2) components have been changed on V-6 Camry and Avalon automatic transmissions to improve shift engagement between "N" to "R" ranges. Changes to the C2 Clutch are as follows:

^ C2 Clutch Plate (P/N 35634-33040) has been eliminated.

^ C2 Clutch Plate (P/N 35647-33020) - Quantity increased from 2 to 3.

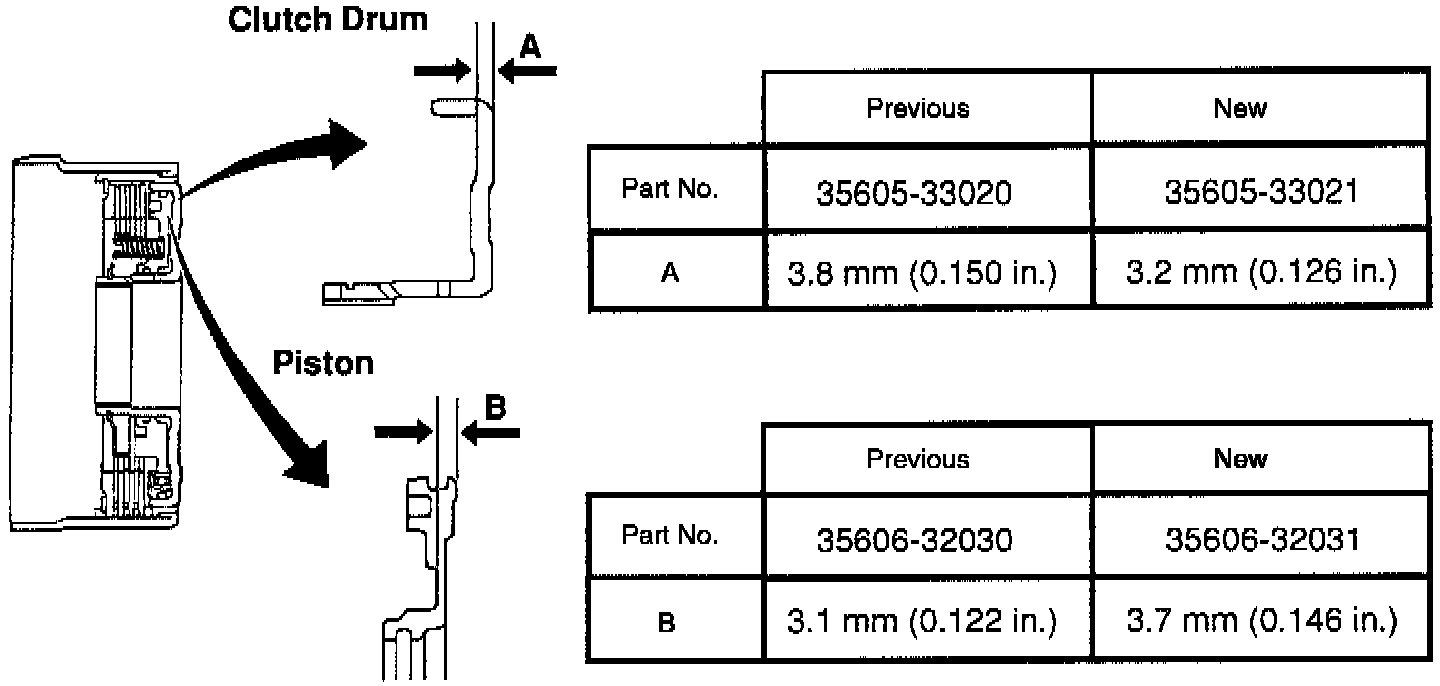

^ C2 Clutch Drum wall thickness decreased (from 3.8 mm to 3.2 mm).

^ C2 Piston wall thickness increased (from 3.1 mm to 3.7 mm).

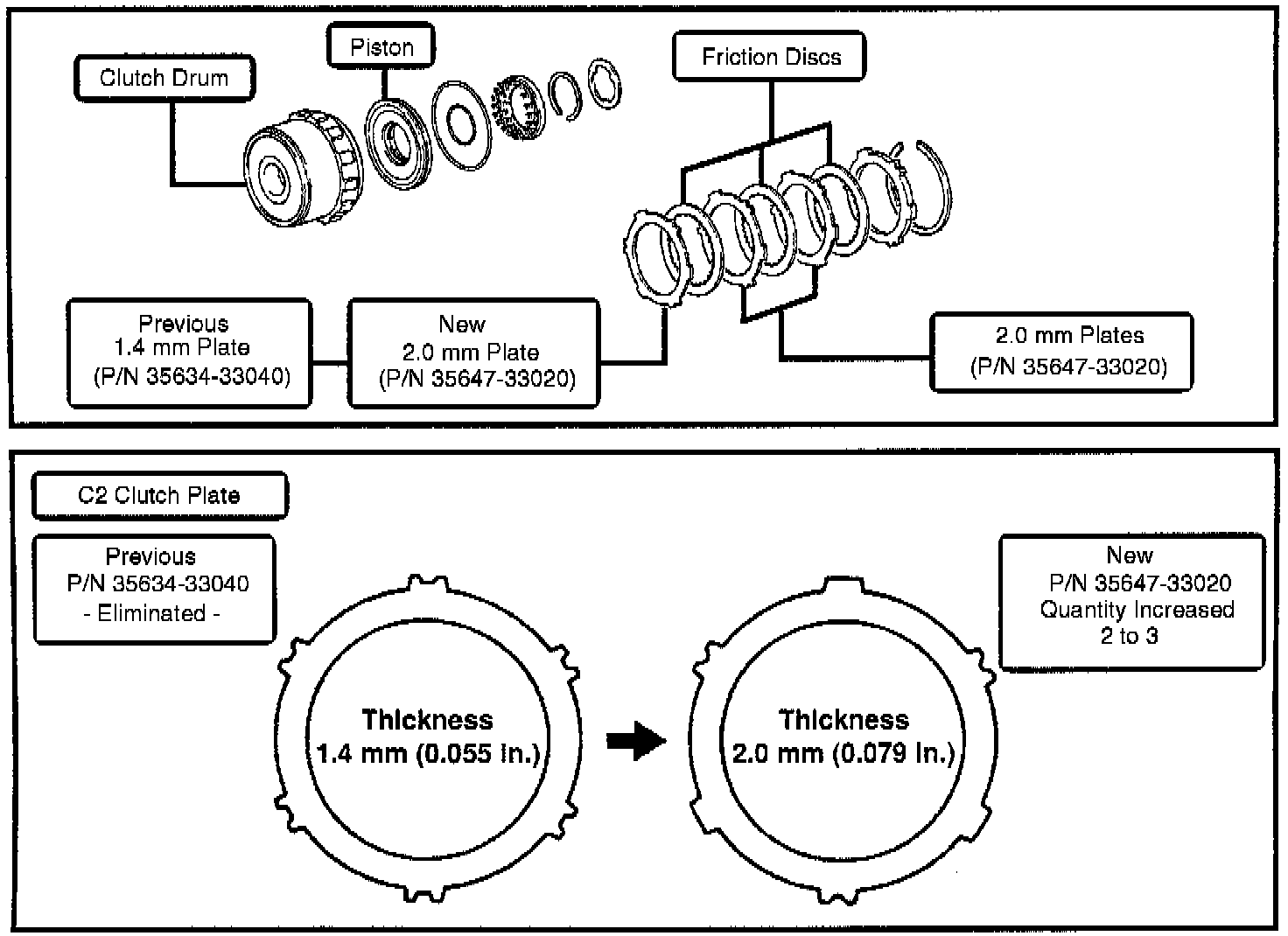

CLUTCH COMPONENTS:

PRODUCTION EFFECTIVE:

ATM Serial # : C1204694

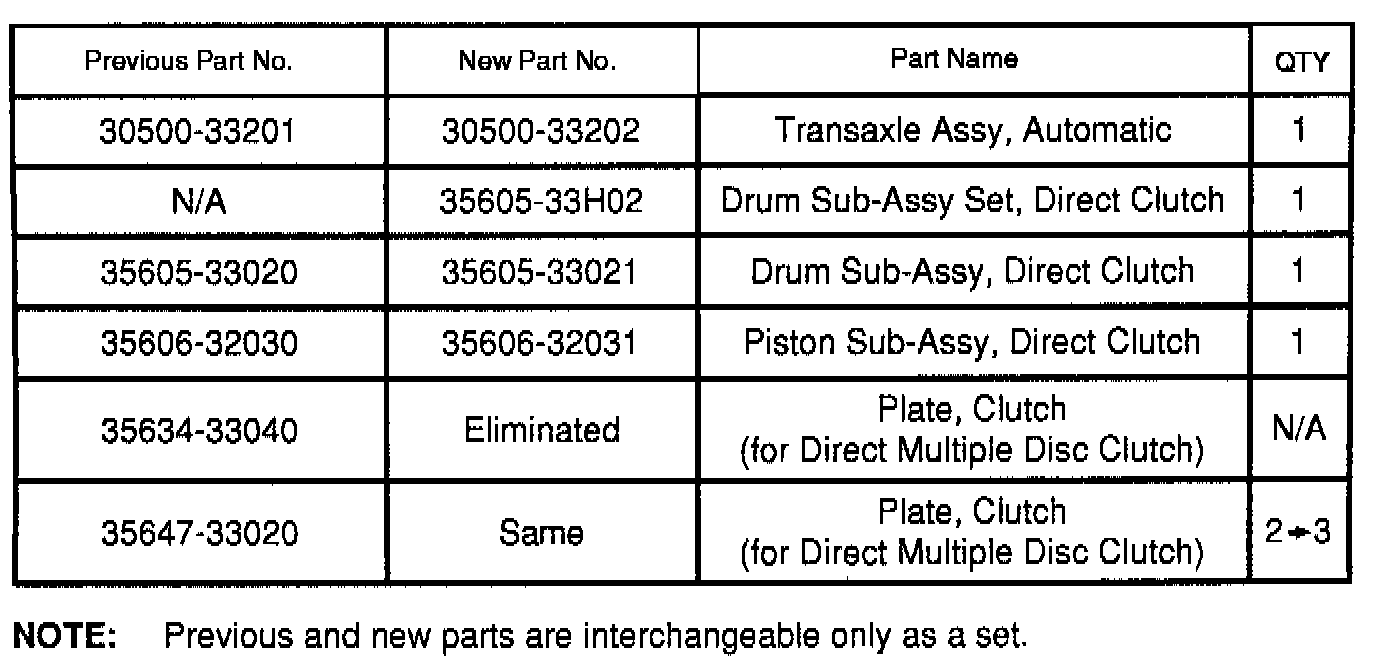

PART NUMBER INFORMATION:

NOTE:
Previous and new parts are interchangeable only as a set.
