A541E TRANSAXLE

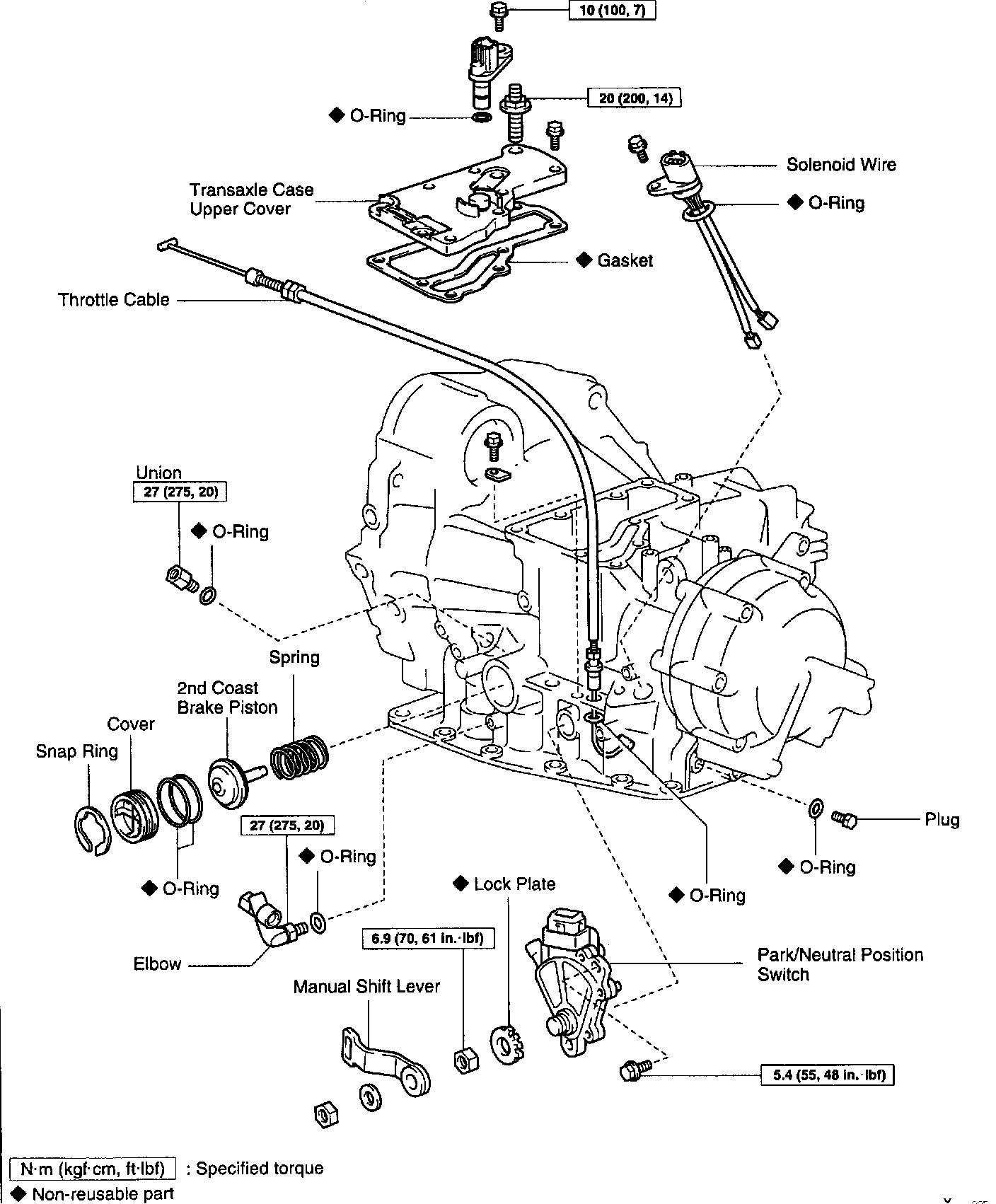

External Components:

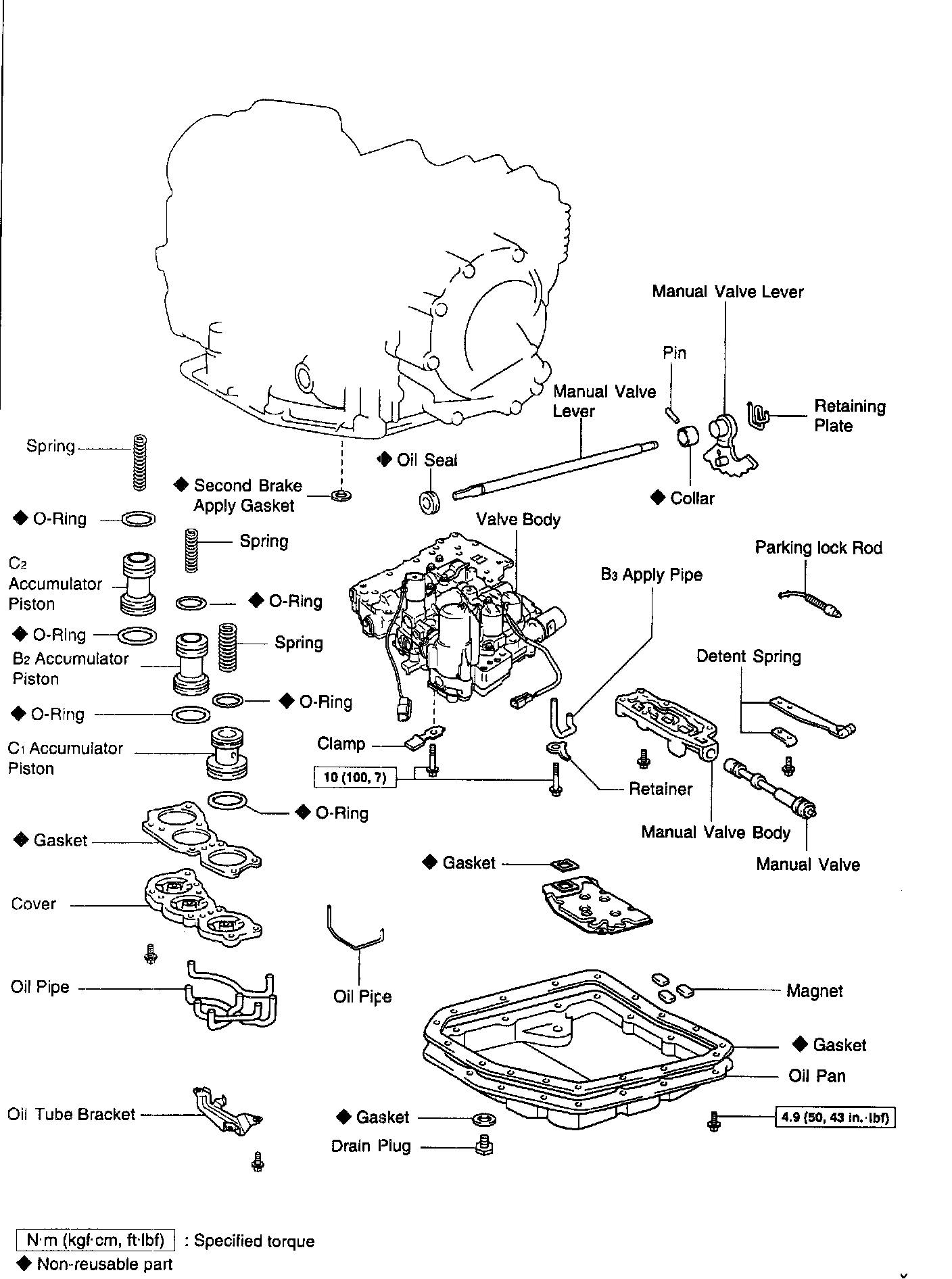

Valve Body Assembly, Accumulators And Manual Valve Lever:

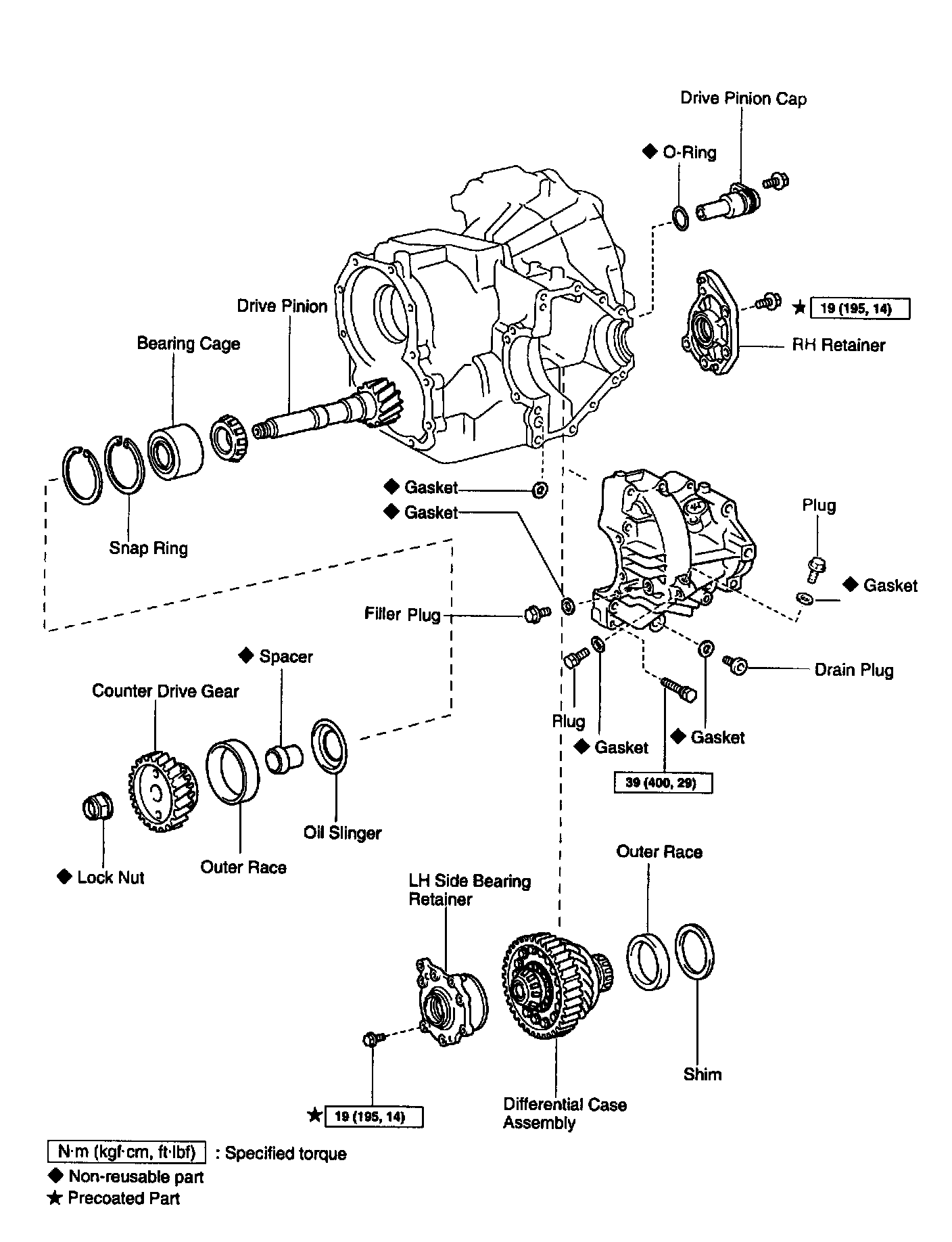

Differential Assembly:

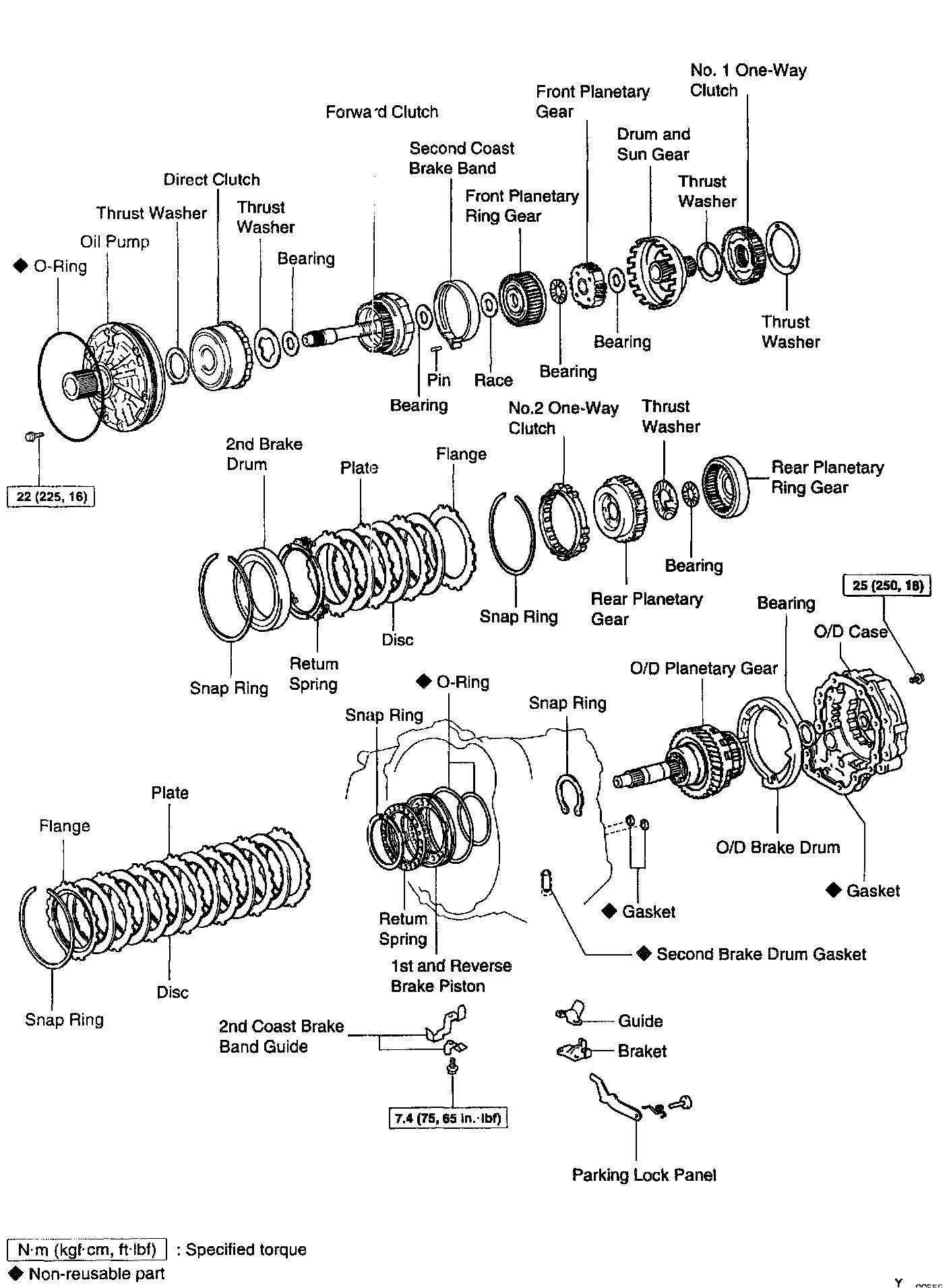

Internal Components:
