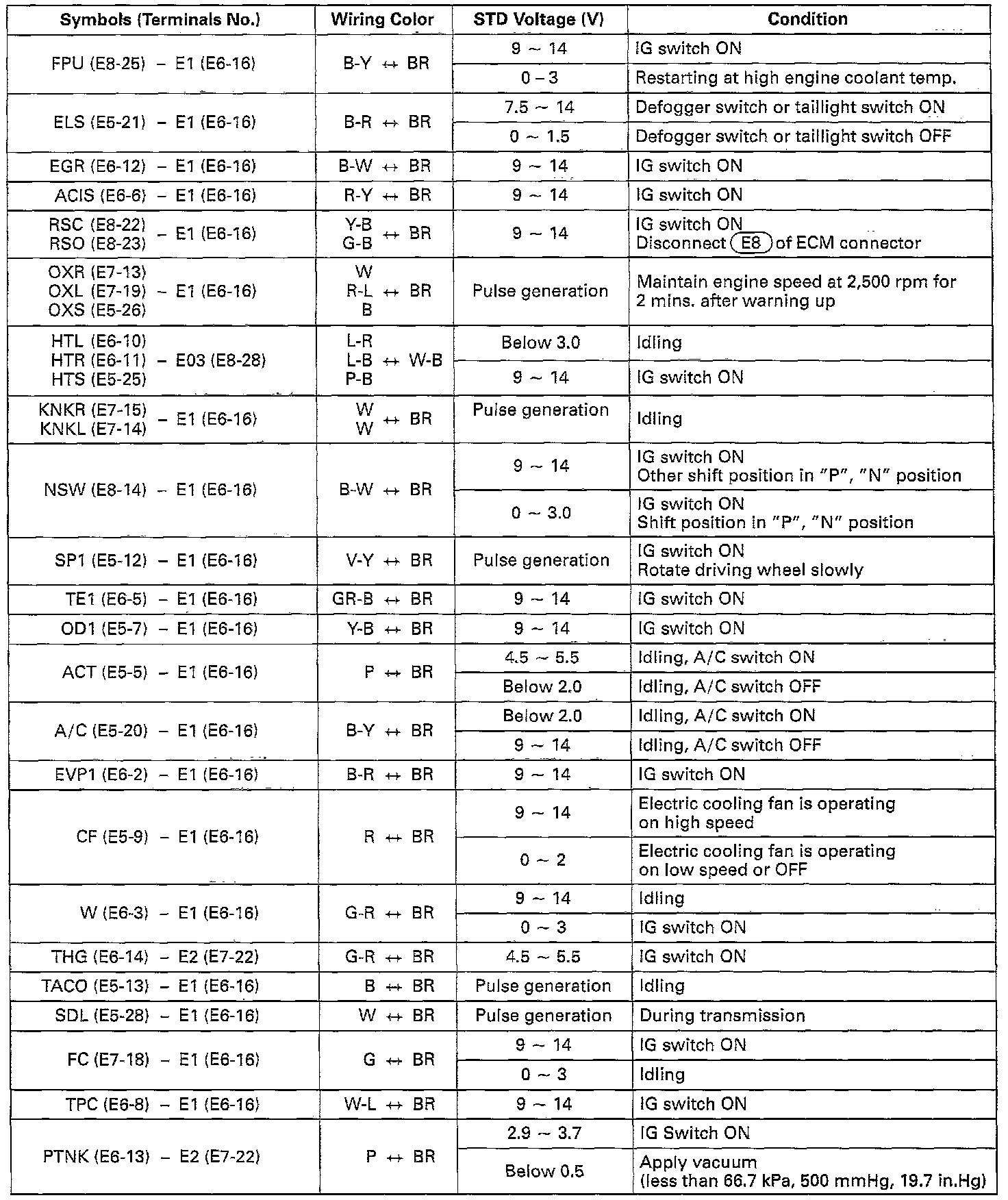

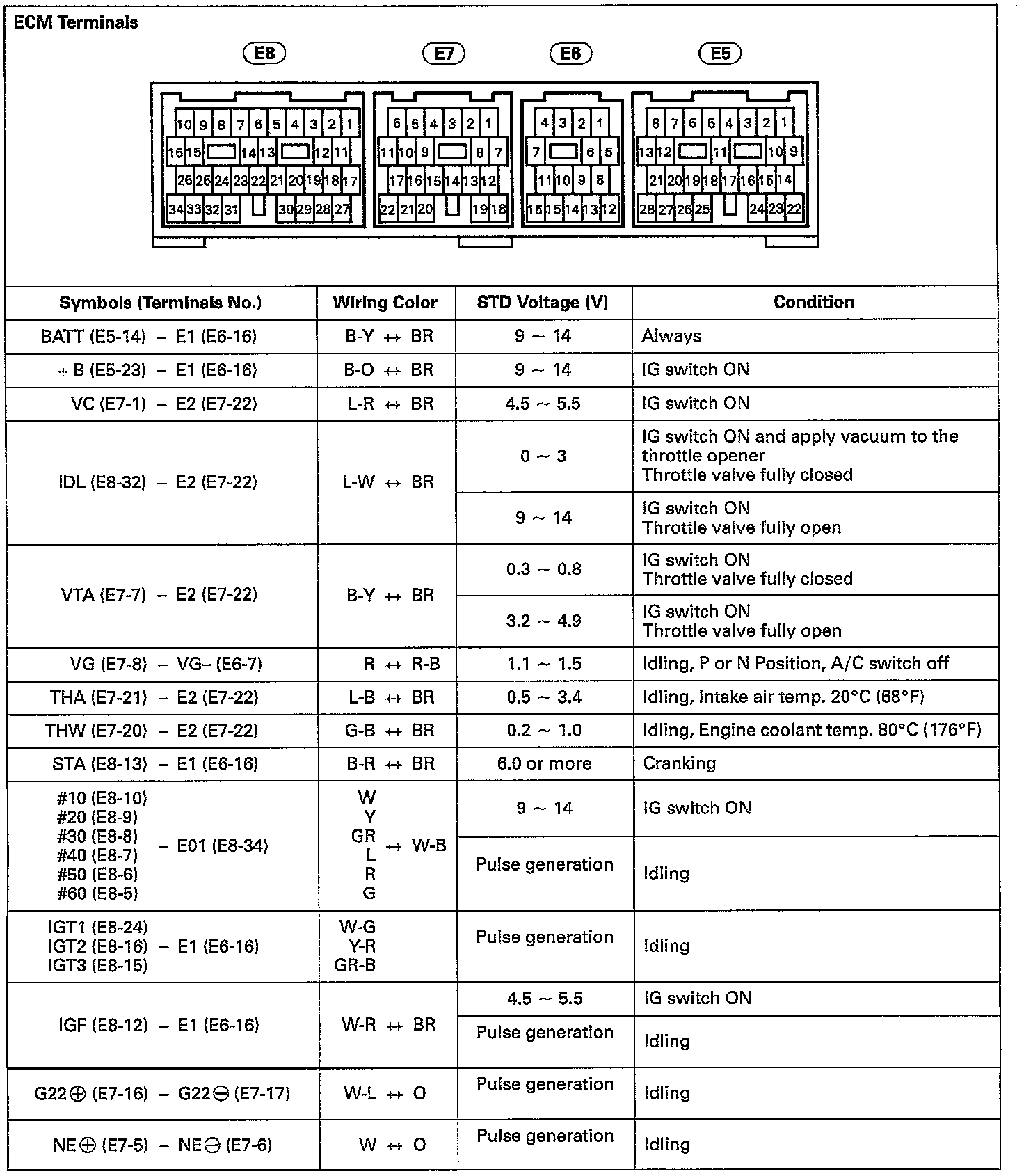

Engine Control Module

When measuring the voltage or resistance of the connector part of the ECM, always insert the test probe into the connector from the wire harness side.
