Crankshaft Position Sensor: Service and Repair

CRANKSHAFT POSITION SENSOR REMOVAL
1. REMOVE RH FENDER APRON SEAL

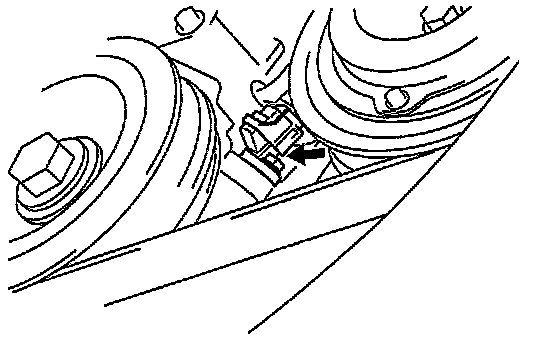

2. REMOVE CRANKSHAFT POSITION SENSOR



- Remove the bolt and remove the crankshaft position sensor.
- Disconnect the crankshaft position sensor connector.

HINT: Installation is in the reverse order of removal.

Torque: 8 Nm (80 kgf.cm, 69 in.lb)
