Headlamp Switch: Service and Repair

1. On models with coded audio anti-theft systems, refer to Technician Safety Information for code procedures.
2. On all models, remove upper and lower steering column covers.
3. Disconnect headlamp switch electrical connector.
4. Remove retaining screws and switch, Fig. .

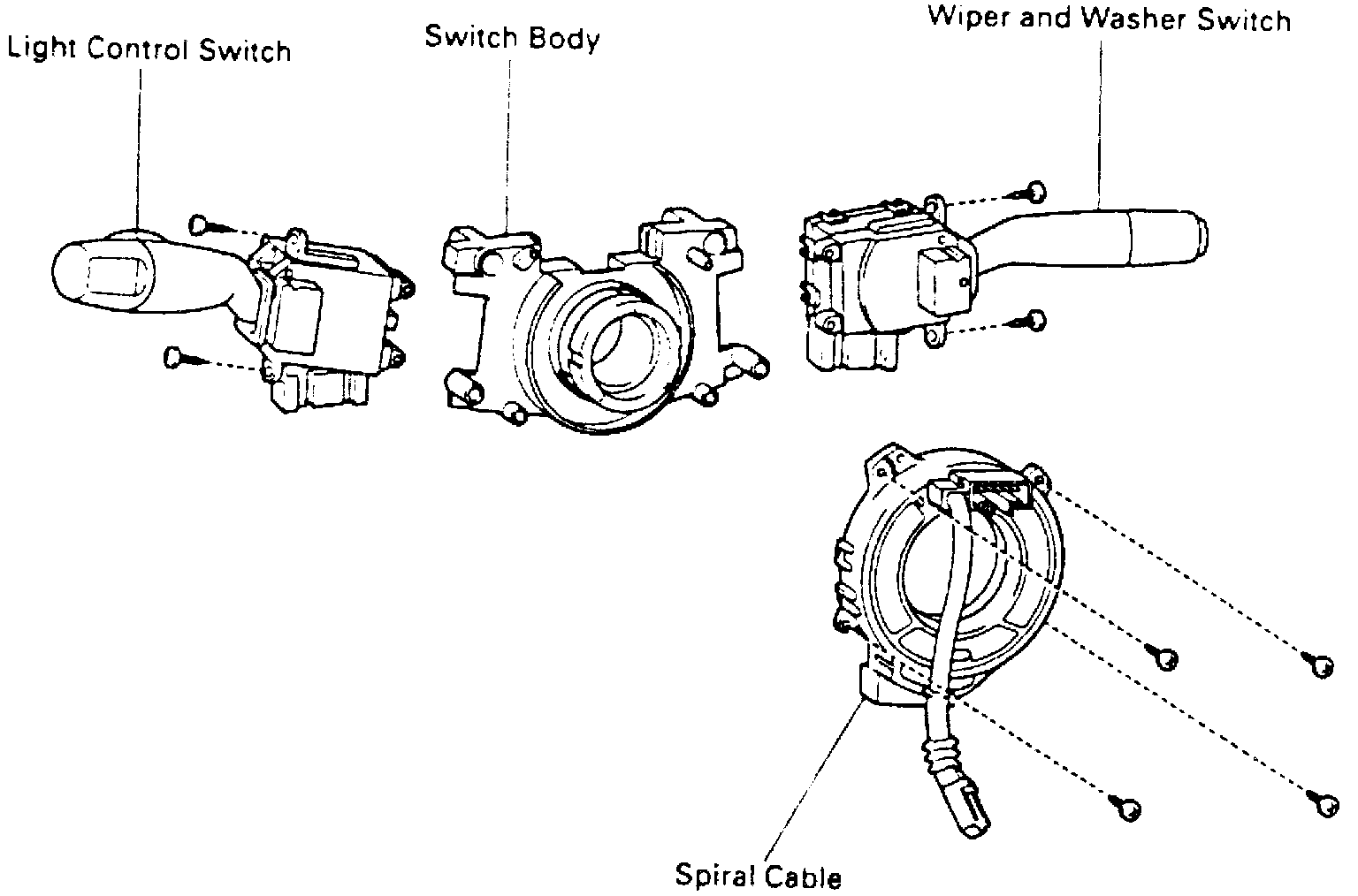

Fig. 9 Light Control & Wiper Switch.:

5. Reverse procedure to install, reset audio anti-theft system, if necessary, as outlined under Technician Safety Information.
