Seat Belts - Extender Availability: Overview

Ref.: BODY

No.: B0009-96

Date: OCTOBER 25, 1996

Model: ALL MODELS

Title:
SEATBELT EXTENDER FOR 1993 THROUGH 1997 MODELS

Toyota customers who find it necessary to increase the length of their seat belts may obtain Seat Belt Extenders at no cost through their local Toyota dealer.

^ The extender is available in black only, in 6, 9, 12, 15 and 18 inch lengths.

^ Owner's are informed of the seat belt extender availability through the Toyota Owner's Manual included in each vehicle.

��xZ:

The customer (individual requiring the extender) must visit a Toyota Dealership to have the required measurements made and to complete the seat belt extender worksheet. The worksheet will allow the proper fitting and selection of a seat belt extender for the customer. The dealership personnel should then determine the applicable part number and place a Critical Order through the TDN Parts Network.

Included in this bulletin is the information covering the 1993 through 1997 model years:

Contents

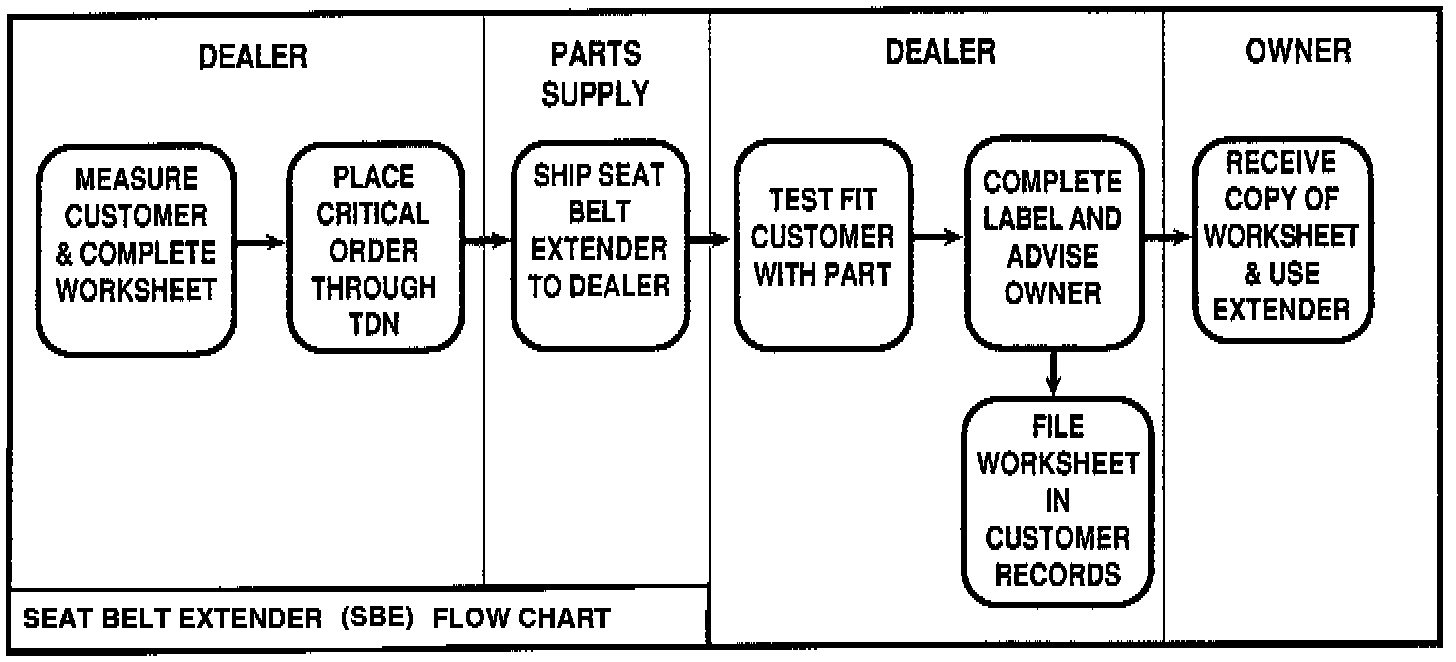

Procedure & Flow Chart

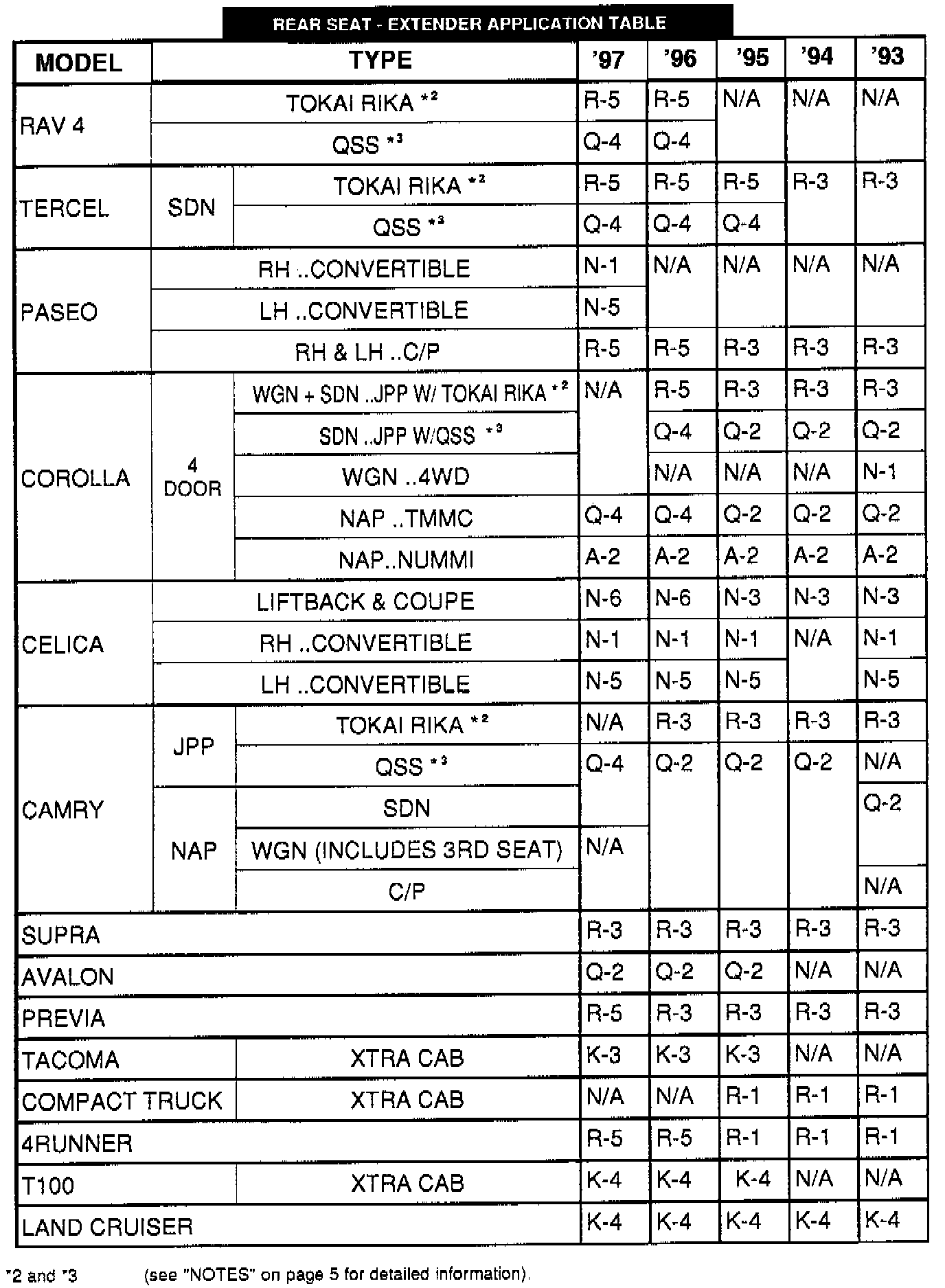

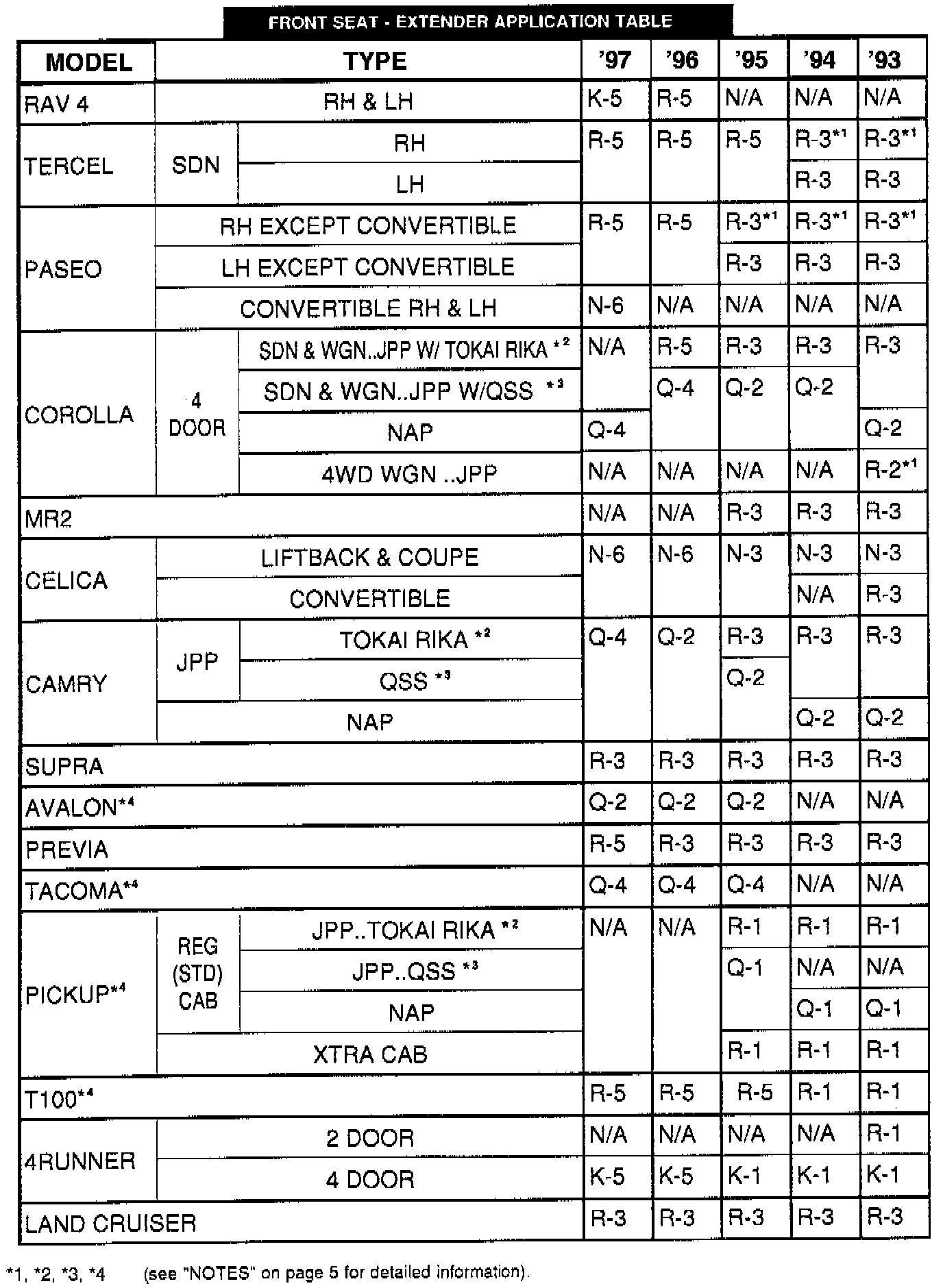

Application Charts & Notes

Part Number Information

Owner Instruction Sheet

Statement from Owners Manual

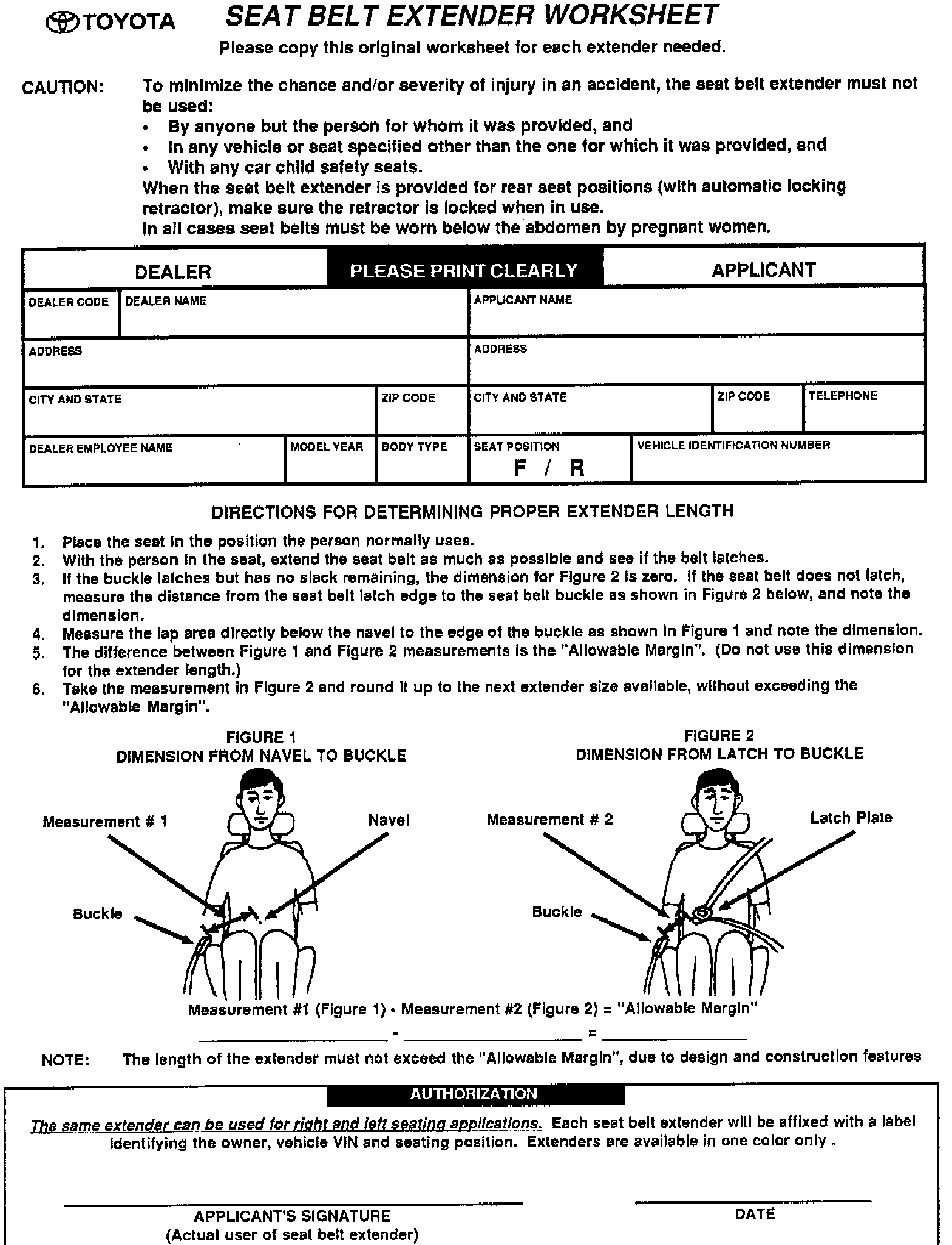

Seat Belt Extender Worksheet

The dealership service department should complete the affixed Seat Belt Extender Label and review the "owner instruction sheet" with the customer. The dealership should give a copy of the completed worksheet to the customer and keep the original in the customer's file.

To assure utmost owner satisfaction, it is recommended that a dealership designate one person to coordinate all activities related to the seat belt extender issue.

From past sales history, it is recommended that dealerships do not stock seat belt extenders due to low demand and the need for customer fitting.





SAMPLE SEAT BELT LABEL:

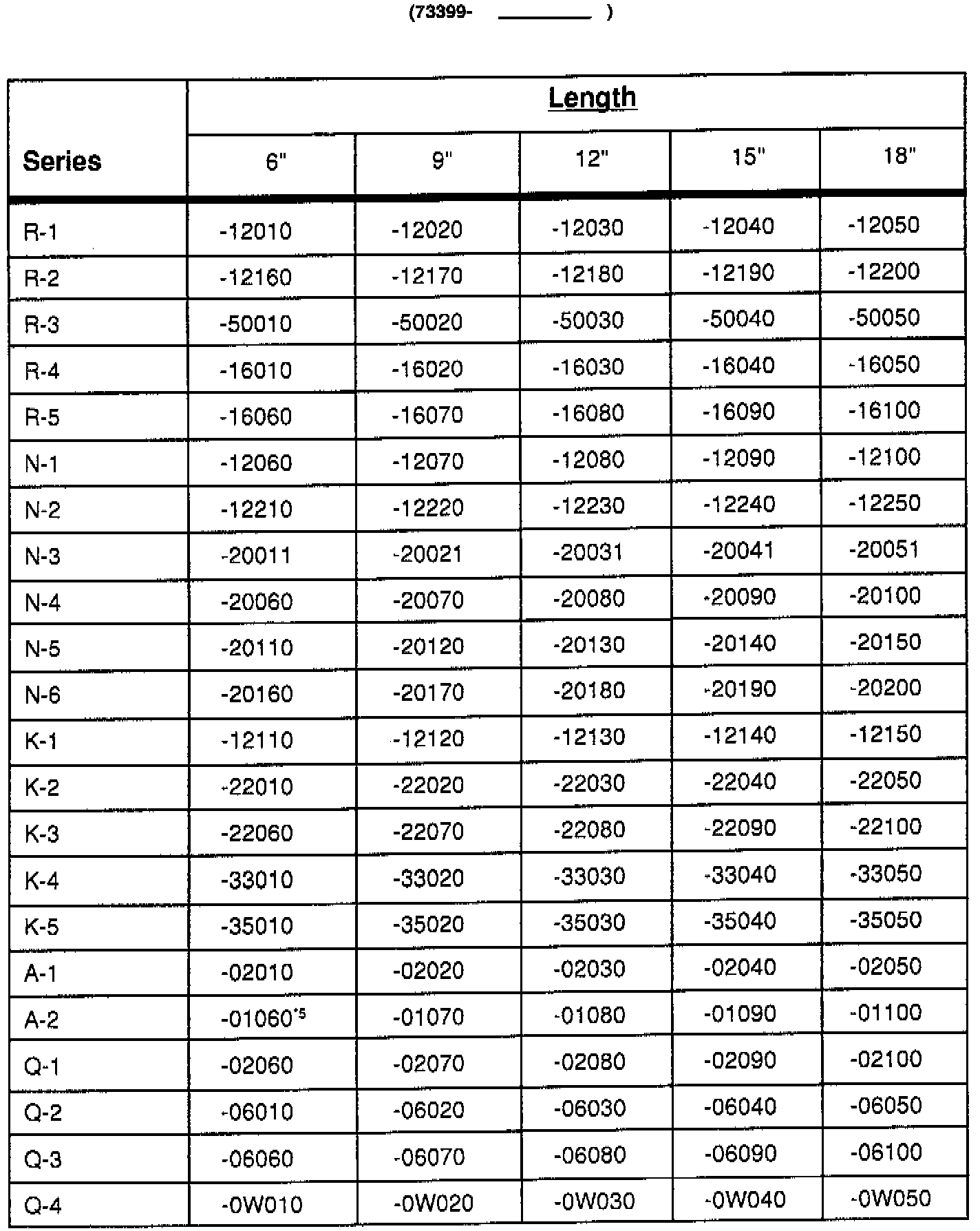

PART NUMBER INFORMATION:
