Electrical Connection Check Mechanism

This mechanism is designed to electrically check if connectors are connected correctly and completely.

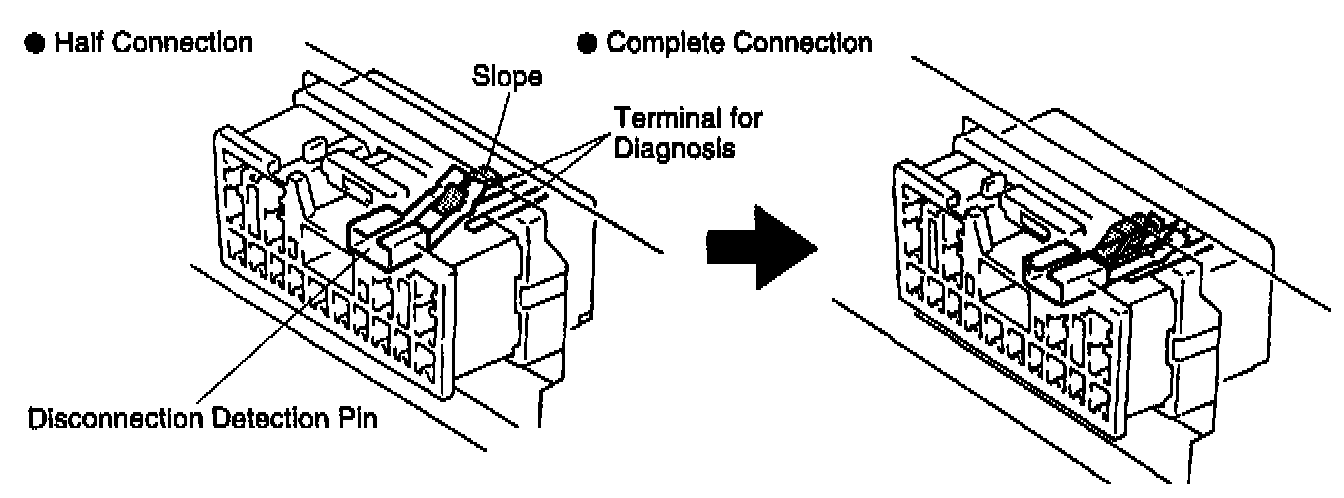

The electrical connection check mechanism is designed so that the connection detection pin connects with the diagnosis terminals when the connector housing lock is in the locked condition.
