Passengers Airbag Assembly

1. Disarm SRS as outlined under Air Bag System Disarming and Arming.
2. Remove glove compartment door finish plate.
3. Disconnect passenger air bag electrical connector.

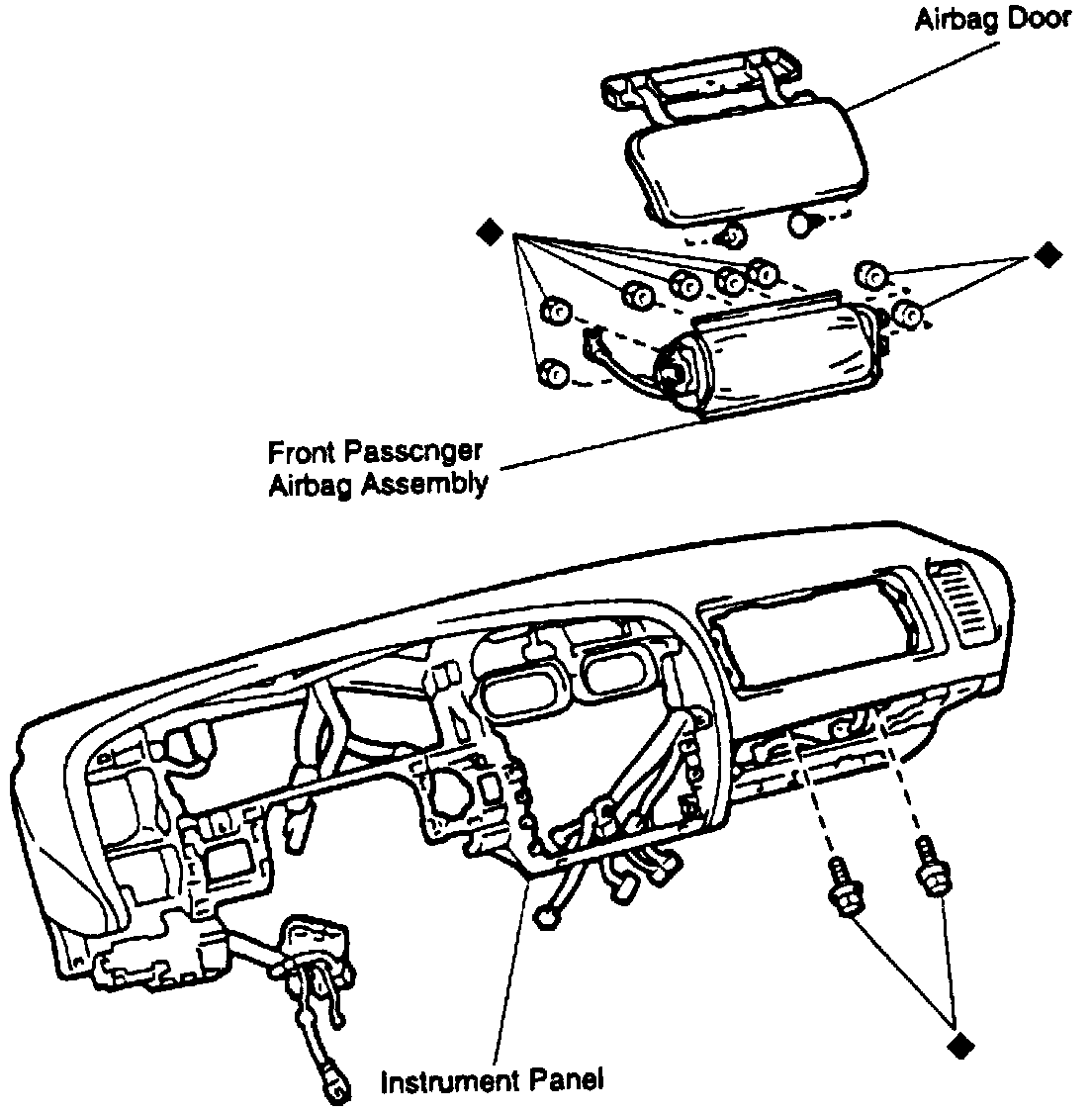

4. Remove instrument panel, Fig. 36.






5. Remove passenger air bag mounting nuts.
6. Carefully remove passenger air bag module.
7. Remove screws and air bag door.
8. Reverse procedure to install, and tighten to specifications.
