Manual A/C

AMPLIFIER REMOVAL (Manual A/C)

1. REMOVE RADIO

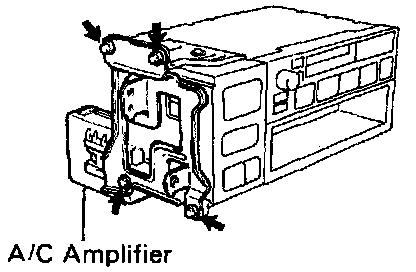

2. REMOVE AMPLIFIER
Remove the 4 bolts and amplifier.

AMPLIFIER INSTALLATION
Installation is in the reverse order of removal.
