O/D Main Switch & O/D Off Indicator Light Circuit
O/D MAIN SWITCH & O/D OFF INDICATOR LIGHT CIRCUITCIRCUIT DESCRIPTION
The O/D main switch contacts go off when the switch is pushed in and come on when it is pushed out. In O/d main switch OFF position, the 0/D OFF indicator lights up, and the ECM prohibits shifting to overdrive.

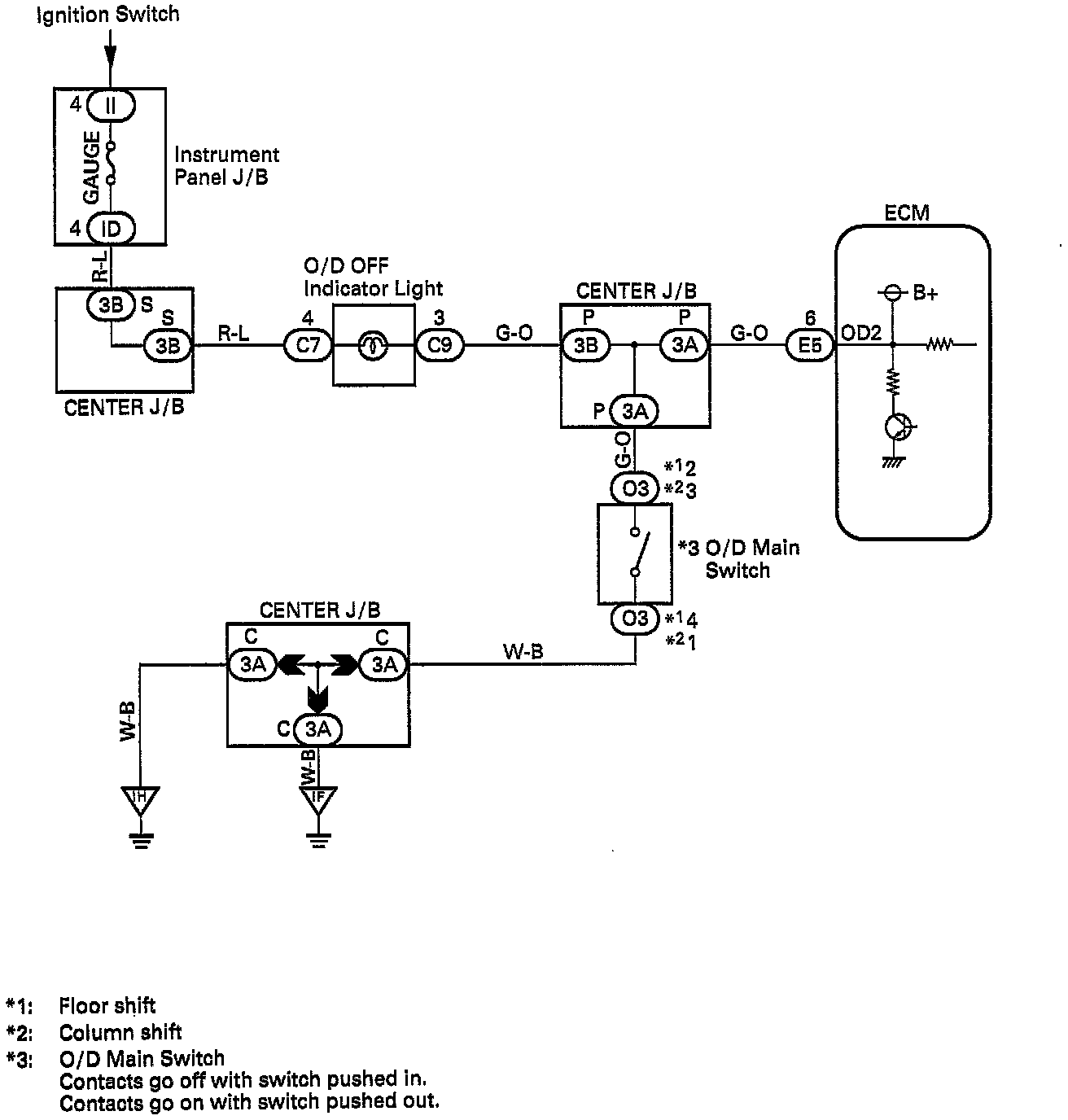

WIRING DIAGRAM
INSPECTION PROCEDURE

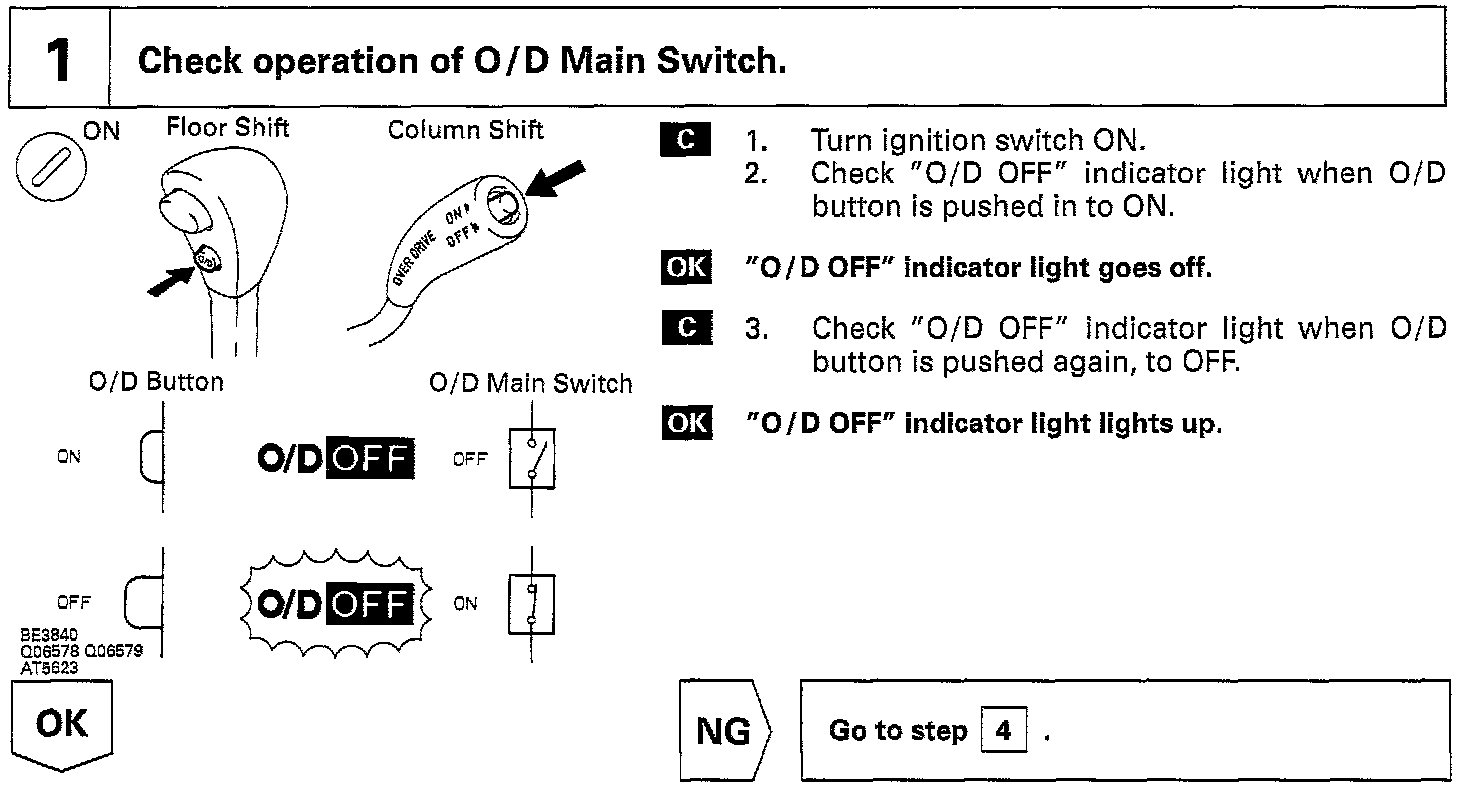

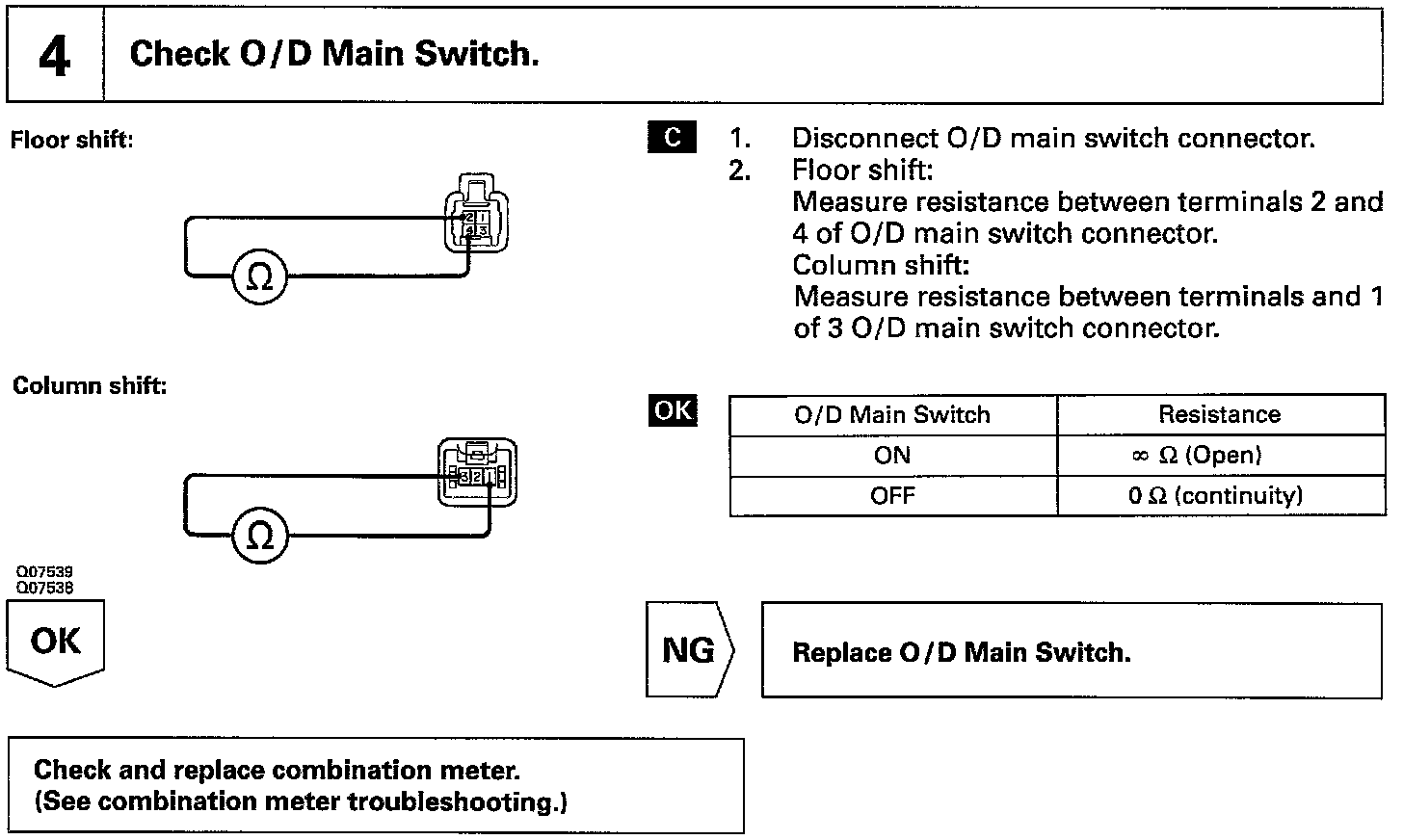

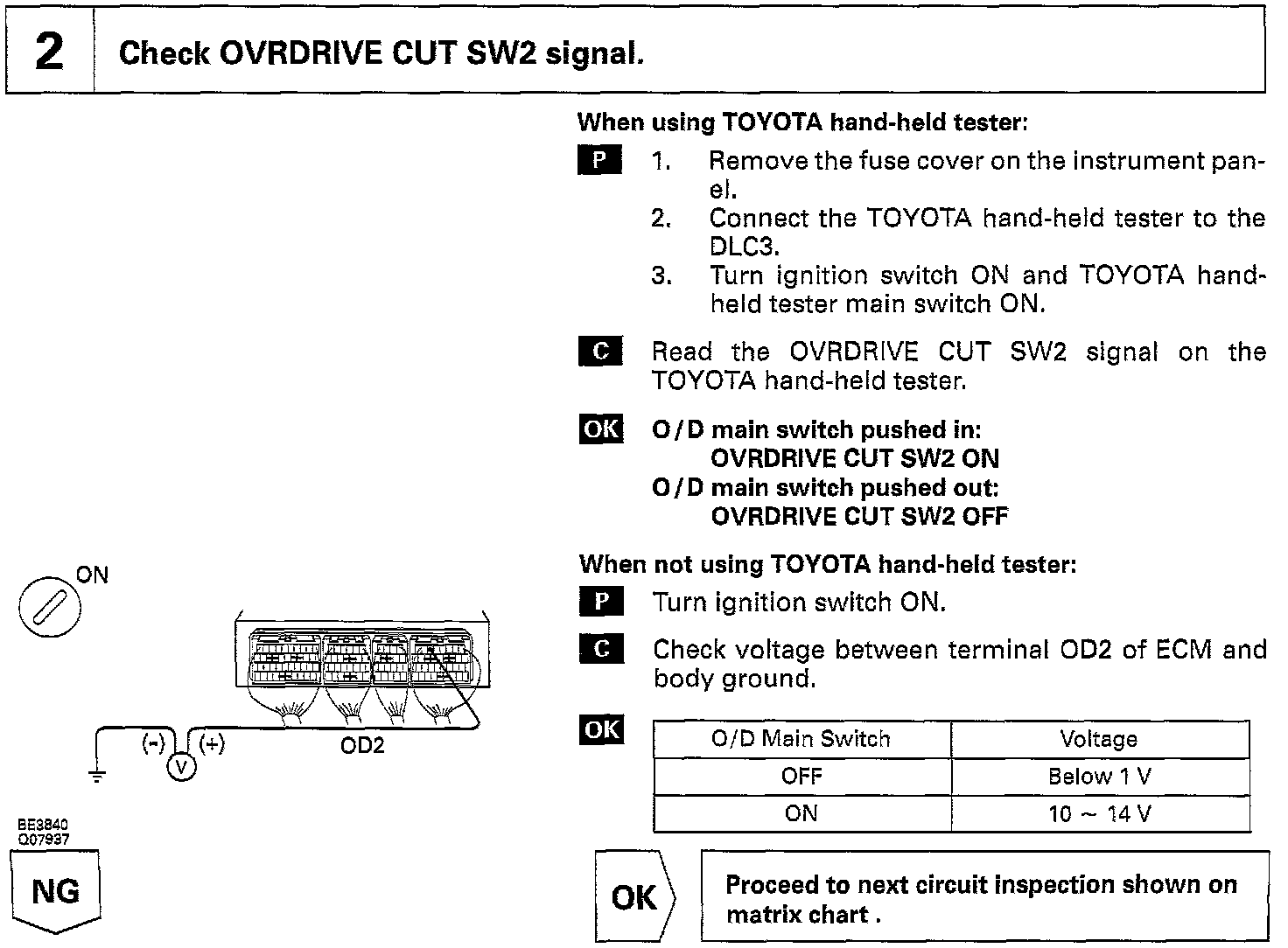

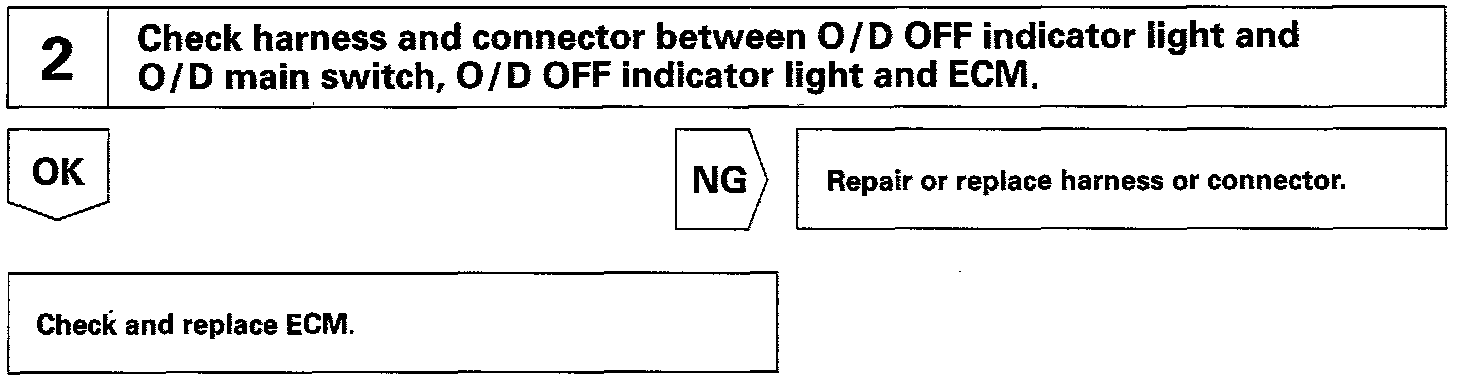

If the O/D OFF indicator light does not light up.

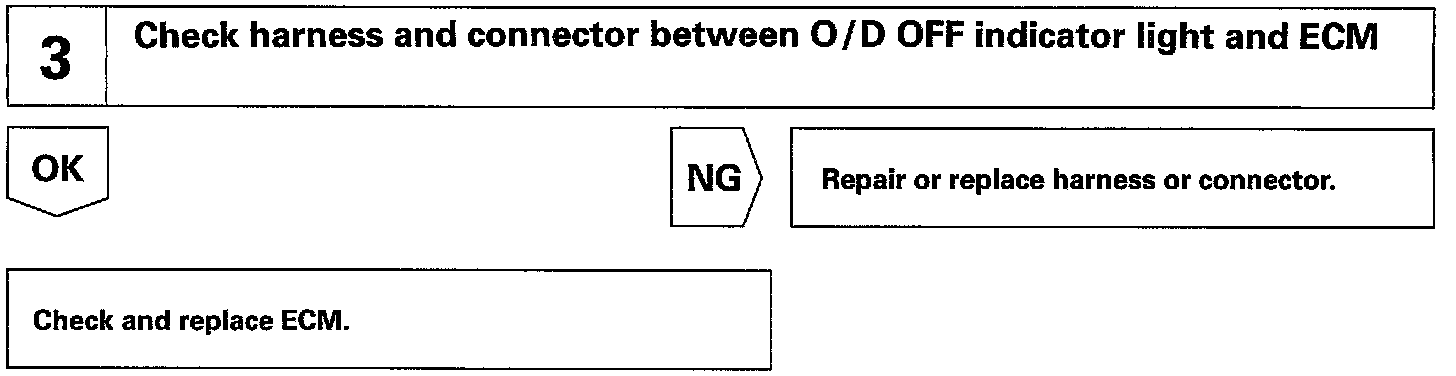

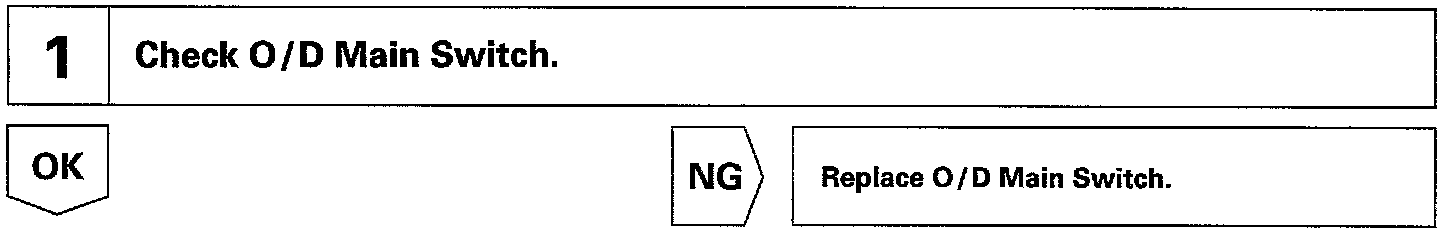

If the O/D OFF indicator light remains ON.
