Component Tests and General Diagnostics

CAMSHAFT POSITION SENSOR INSPECTION

NOTICE: "Cold" and "Hot" in the following sentences express the temperature of the sensor itself.
Cold is from -10°C (14°F) to 50°C (122°F)
Hot is from 50°C (122°F) to 100°C (212°F).

1. DISCONNECT CAMSHAFT POSITION SENSOR CONNECTOR

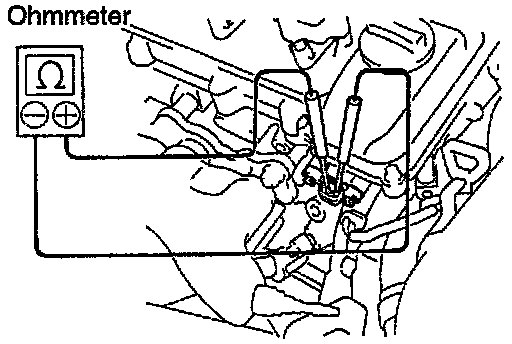

2. INSPECT CAMSHAFT POSITION SENSOR RESISTANCE



- Using an ohmmeter, measure the resistance between terminals.

Resistance:
Cold: 835 - 1,400 Ohms
Hot: 1,060 - 1,645 Ohms

- If the resistance is not as specified, replace the camshaft position sensor.

3. RECONNECT CAMSHAFT POSITION SENSOR CONNECTOR
