Variable Induction Control Solenoid: Testing and Inspection

VSV FOR ACIS INSPECTION

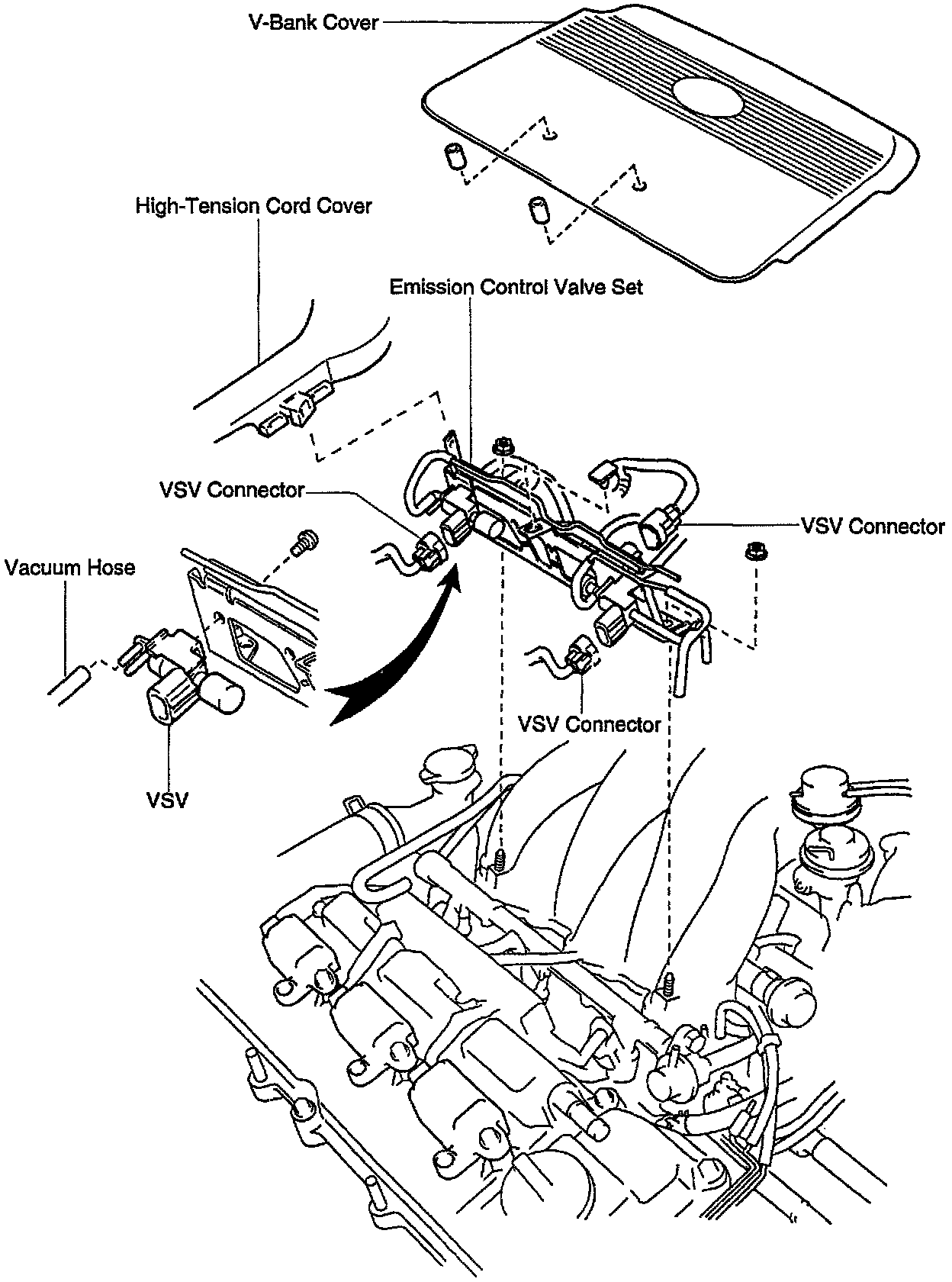

1. REMOVE V-BANK COVER AND EMISSION CONTROL VALVE SET AND HIGH-TENSION CORD COVER.
2. REMOVE VSV.
- Disconnect the 2 vacuum sensing hoses from the VSV.
- Remove the screw and VSV.

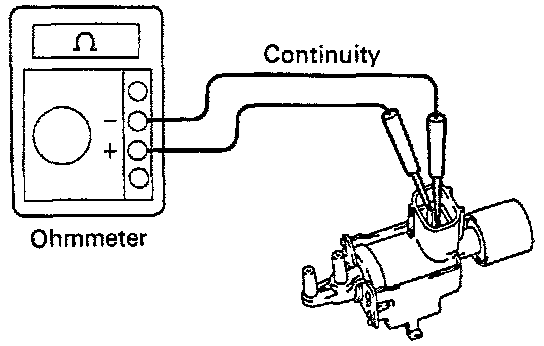

3. INSPECT VSV FOR OPEN CIRCUIT.



- Using an ohmmeter, check that there is continuity between each terminals.

Resistance At 2O°C (68°F): 33 - 39 Ohms

- If there is no continuity, replace the VSV.

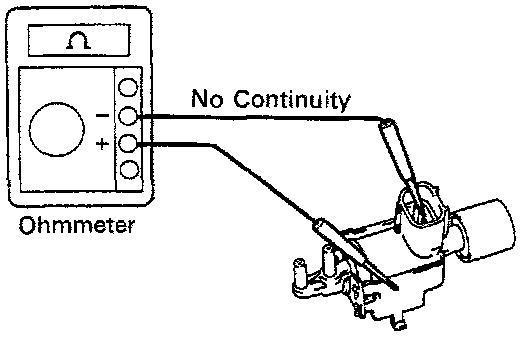

4. INSPECT VSV FOR GROUND.



- Using an ohmmeter, check that there is no continuity between each terminal and the body.
- If there is continuity, replace the VSV.

5. INSPECT VSV OPERATION.

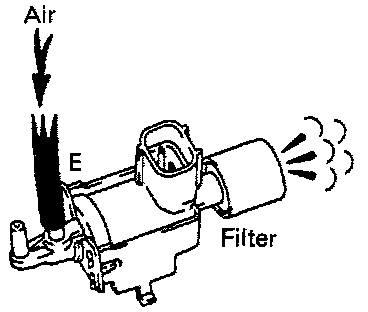

- Check that air flows from port E to the filter.

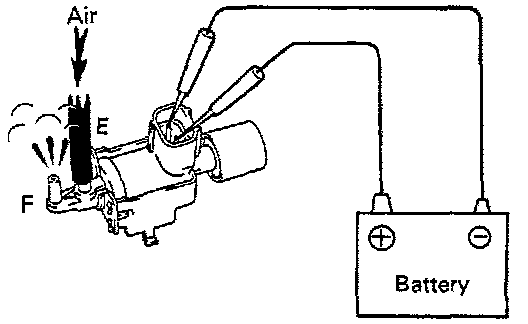

- Apply battery positive voltage across the terminals.
- Check that air flows from port E to port F.
- If operation is not as specified, replace the VSV.

6. REINSTALL VSV
- Install the VSV with the screw.
- Connect the 2 vacuum to the VSV.

7. REINSTALL EMISSION CONTROL VALVE SET
8. REINSTALL HIGH-TENSION CORD COVER
9. REINSTALL V-BANK COVER
