Precautions When Working With Fuel injectors

OBSERVE THE FOLLOWING PRECAUTIONS WHEN REMOVING AND INSTALLING THE INJECTORS.
- Never reuse the O-ring.
- When placing a new O-ring on the injector, take care not to damage it in any way.
- Coat a new O-ring with spindle oil or gasoline before installing-never use engine, gear or brake oil.

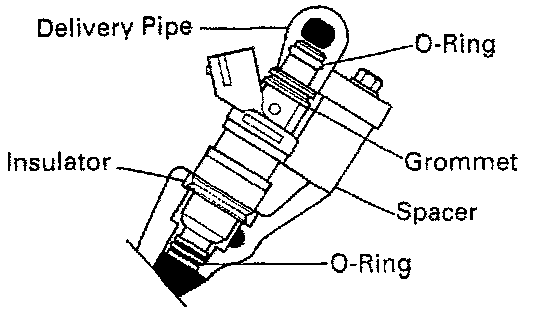

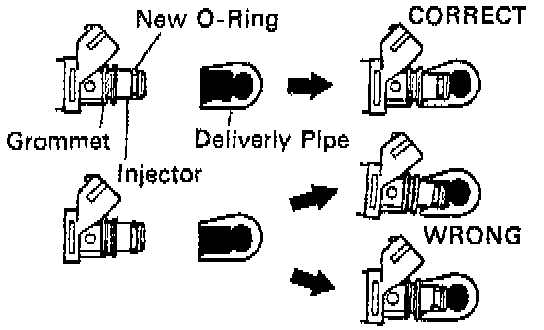

- Install the injector to the delivery pipe and intake manifold as shown in the illustration.
- Check the fuel system for leaks.
