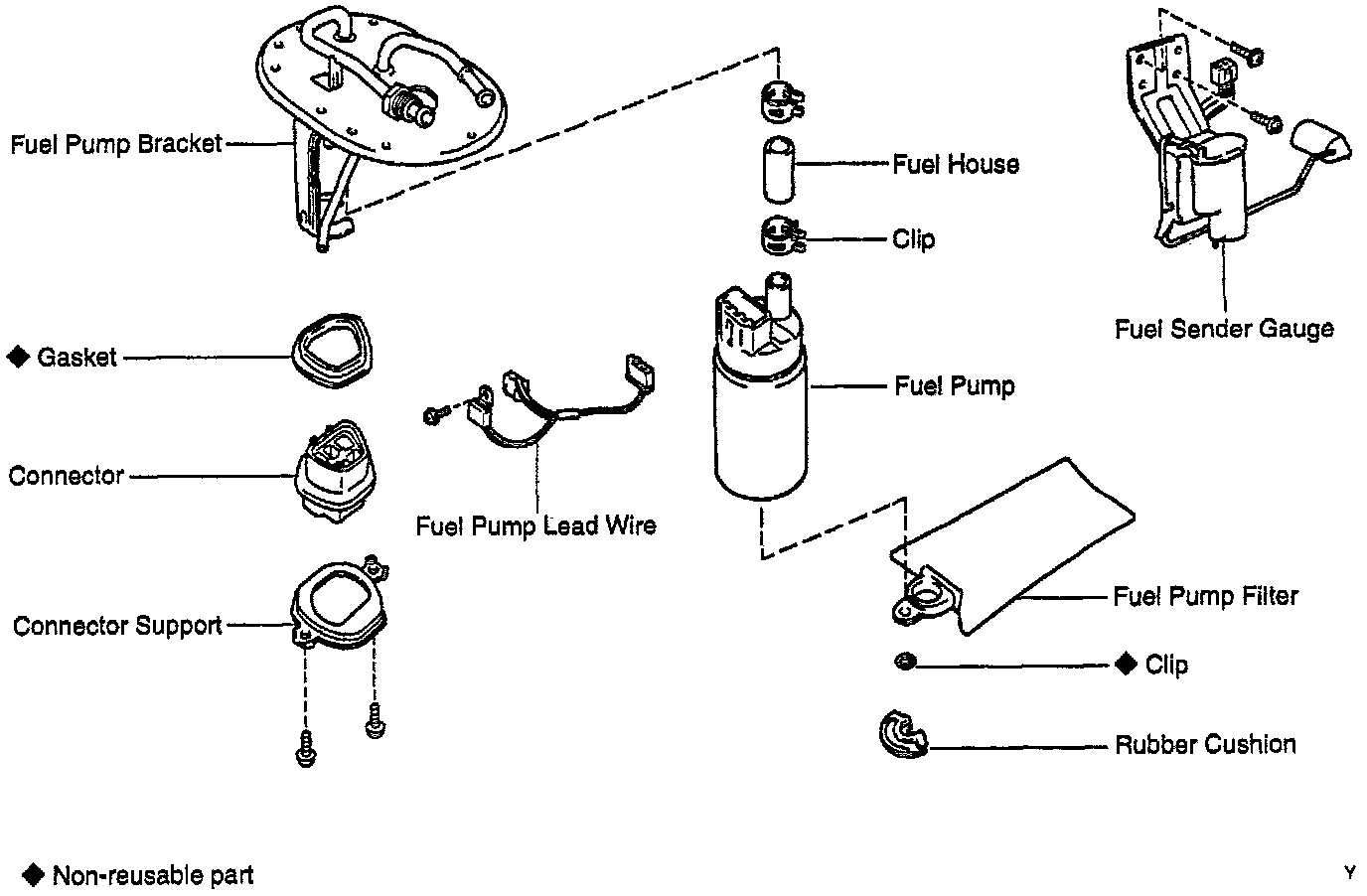

Fuel Pump Disassembly and Assembly

FUEL PUMP DISASSEMBLY





ASSEMBLY HINT: Assembly is in the reverse order of disassembly.

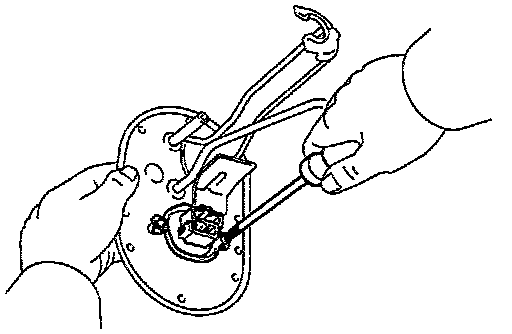

1. REMOVE FUEL PUMP LEAD WIRE

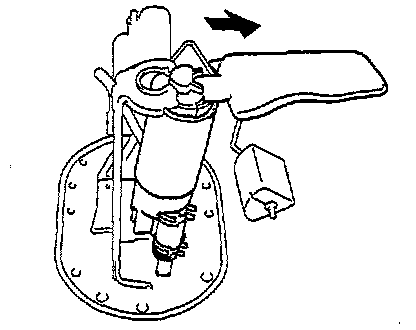

2. REMOVE FUEL PUMP FROM FUEL PUMP BRACKET



- Pull off the lower side of the fuel pump from the pump bracket.
- Disconnect the fuel hose from the fuel pump, and remove the fuel pump.
- Remove the rubber cushion from the fuel pump.

3. REMOVE FUEL SENDER GAUGE FROM FUEL PUMP BRACKET
- Disconnect the fuel sender gauge connector.

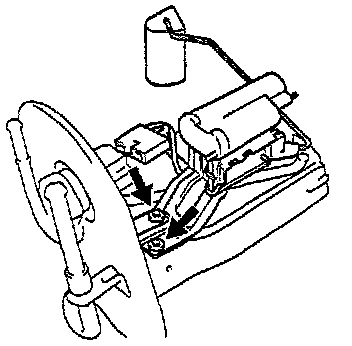

- Remove the 2 screws and sender gauge.

4. REMOVE FUEL PUMP FILTER FROM FUEL PUMP

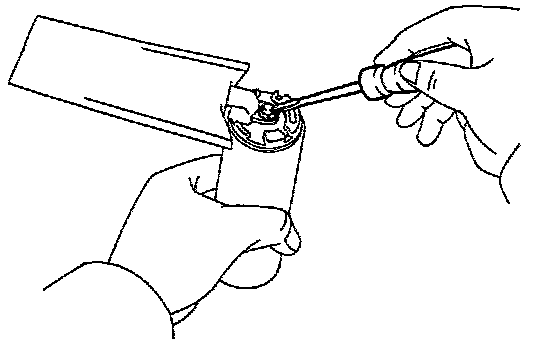

- Using a small screwdriver, remove the clip.
- Pull out the pump filter.
INSTALLATION HINT: Install the pump filter with a new clip.

5. REMOVE CONNECTOR



- Remove the 2 screws, connector support, connector and gasket.
INSTALLATION HINT: Install the connector with a new gasket.
