Oscilloscope Patterns and Waveforms

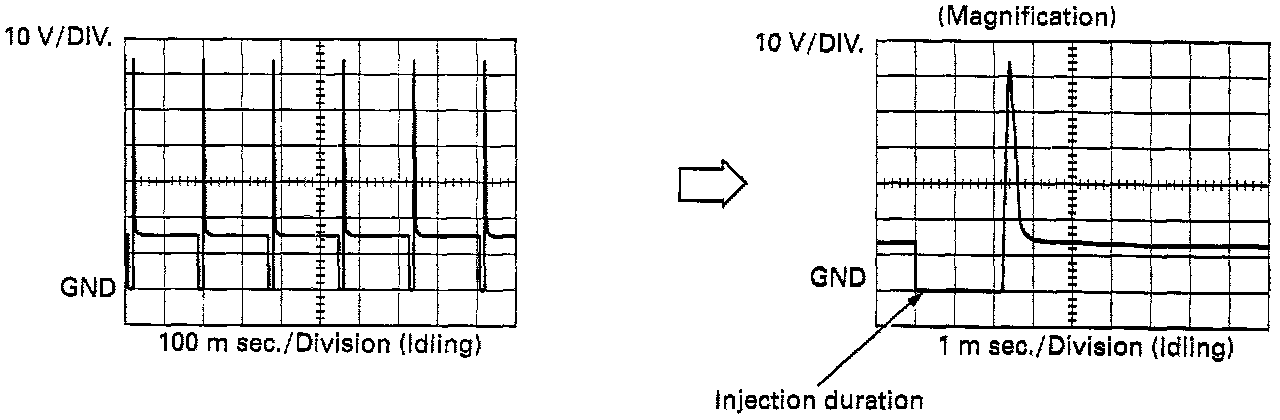

With the engine idling measure between terminals #10 #60 and E01 of ECM. The correct waveforms are as shown:
