Evaporative Emissions System: Testing and Inspection

FUEL VAPOR LINES, FUEL TANK AND TANK CAP INSPECTION
1. VISUALLY INSPECT LINES AND CONNECTIONS.



- Look for loose connections, sharp bends or damage.
2. VISUALLY INSPECT FUEL TANK.
- Look for deformation, cracks or fuel leakage.

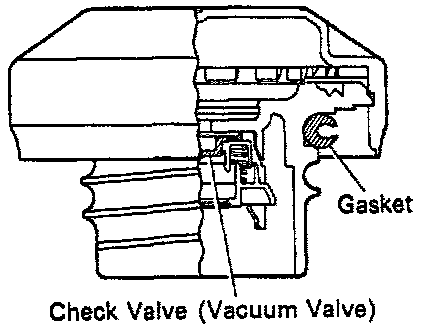

3. VISUALLY INSPECT FUEL TANK CAP.



- Check if the cap and/or gasket are deformed or damaged.
- If necessary, repair or replace the cap.

^ SEE ALSO:
- Refer to Charcoal Canister inspection.
Evaporative Emission Control Canister

- Refer to the Trouble Code Charts for DTC P0440, DTC P0441, DTC P0446 and DTC P0450 for additional testing of EVAP system components.
