Scan Tool Testing and Procedures

NOTICE: The values given below for "Normal Condition" are representative values, so a vehicle may still be normal even if its value varies from those listed here. So do not decide whether a part is faulty or not solely according to the "Normal Condition" here.

CARB Mandated Signals

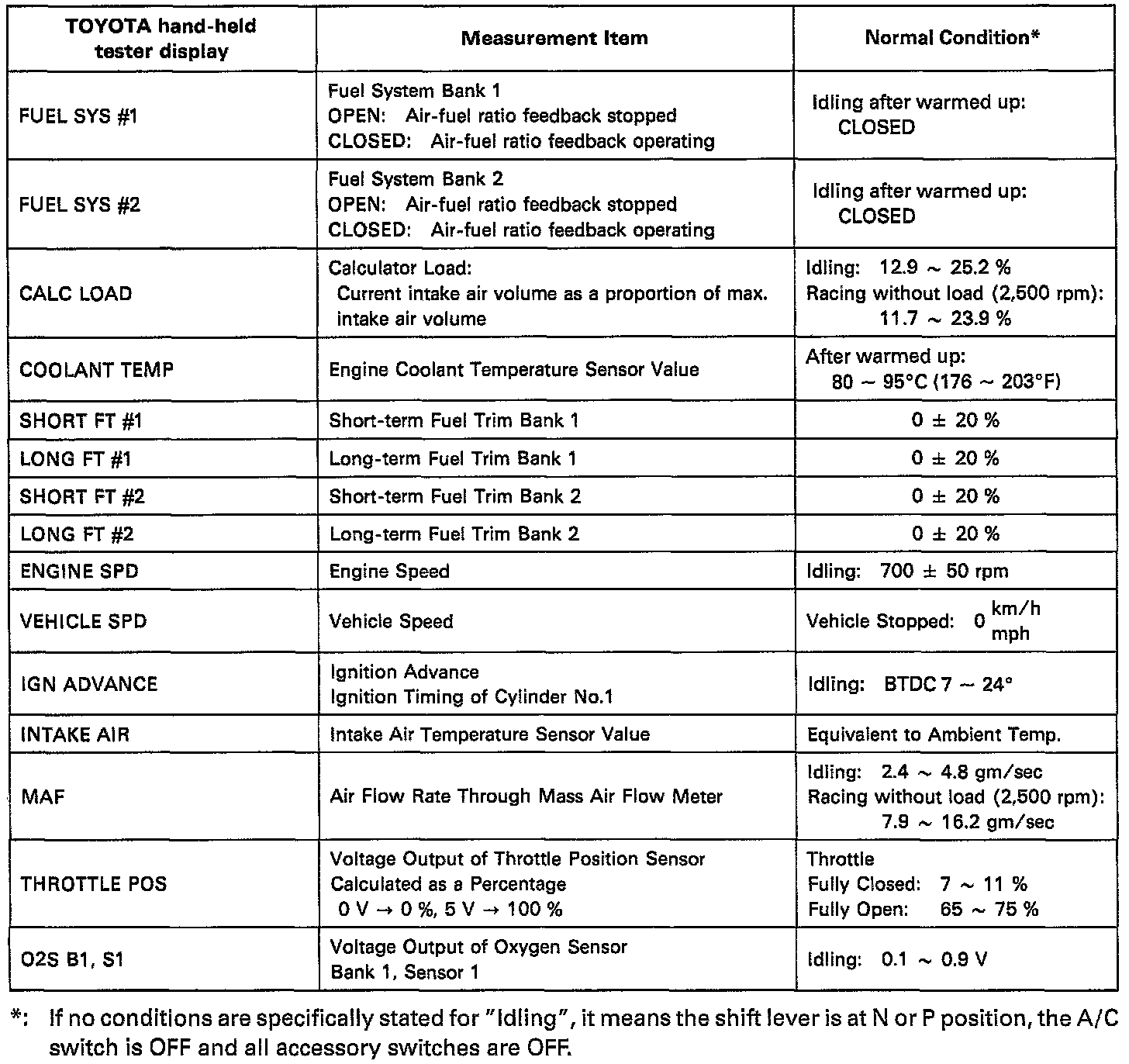

CARB Mandated Signals (Part 1 Of 2):

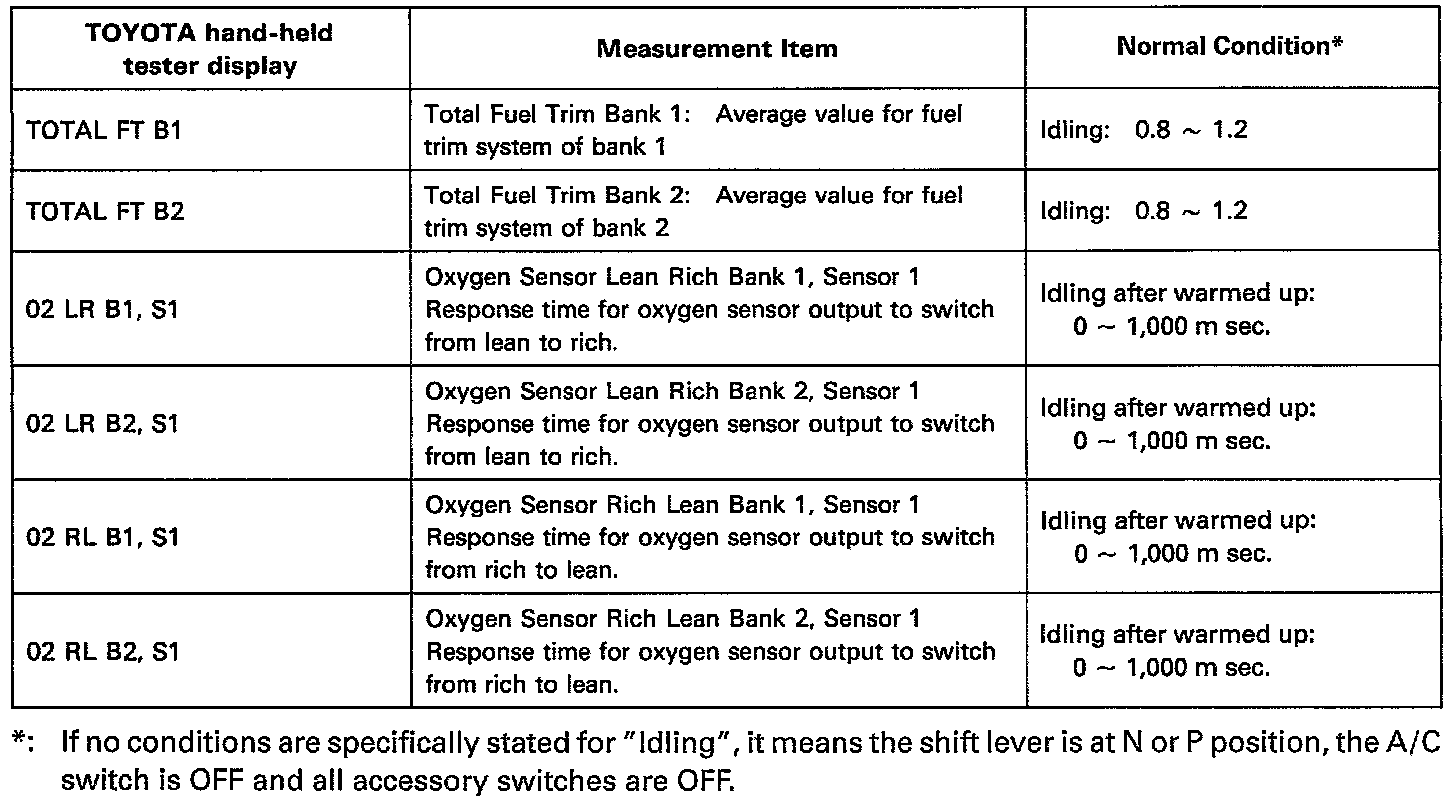

CARB Mandated Signals (Part 2 Of 2):

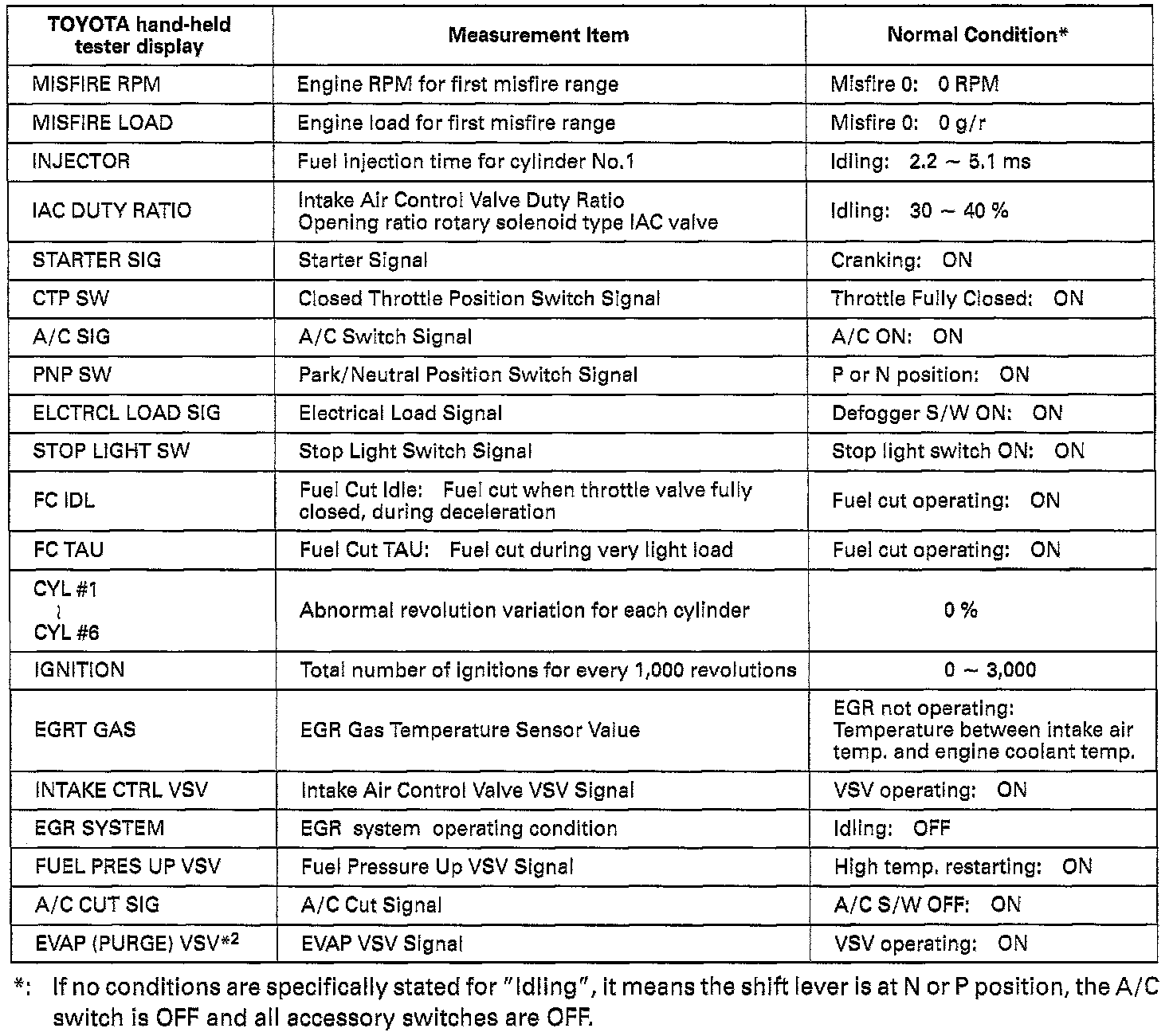

Toyota Enhanced Signals
