Home >> Toyota >> 1996 >> Avalon V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Monitors, Trips, Drive Cycles and Readiness Codes >> Readiness Monitor Drive Pattern >> Application Tables

Application Tables

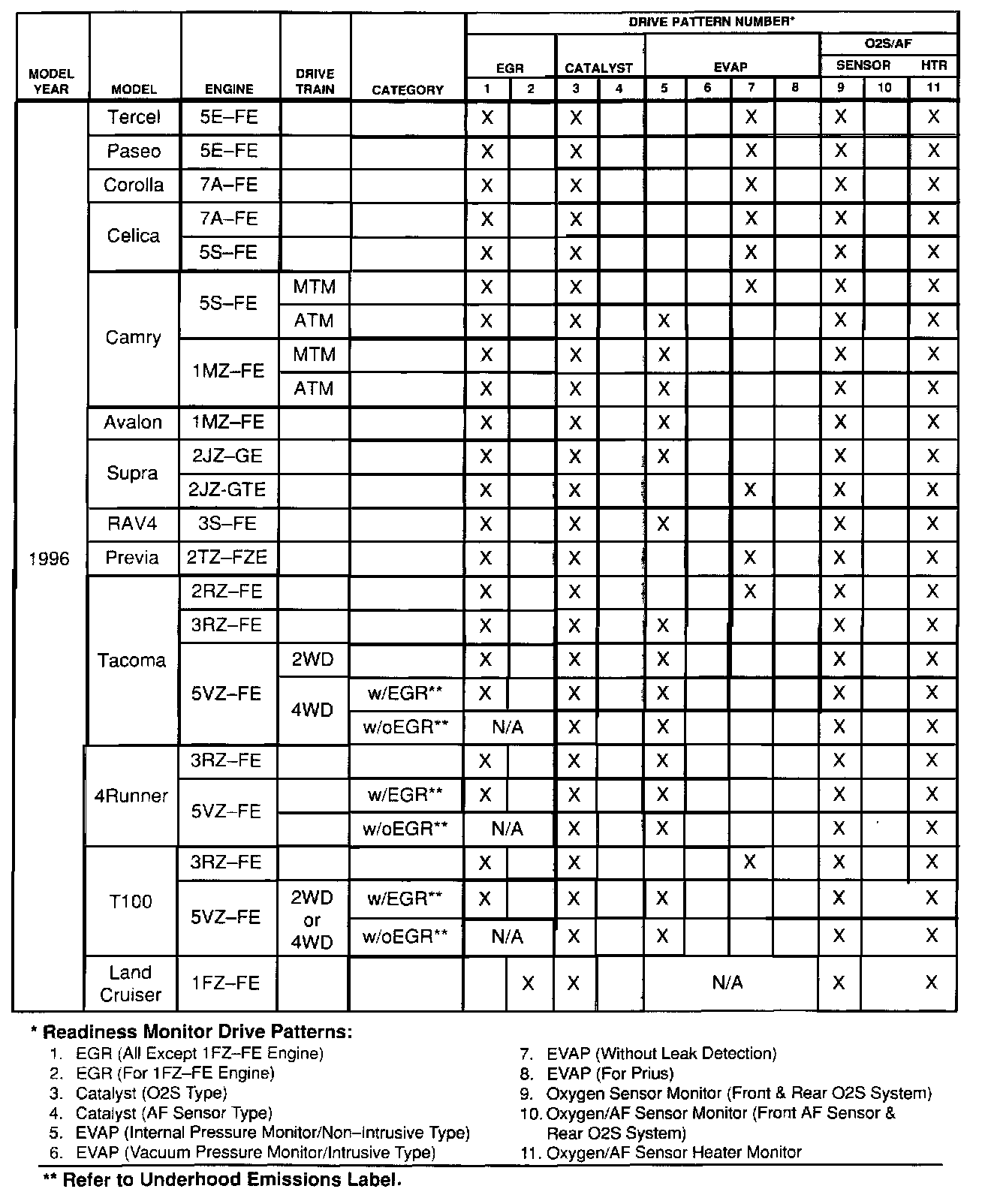

1996

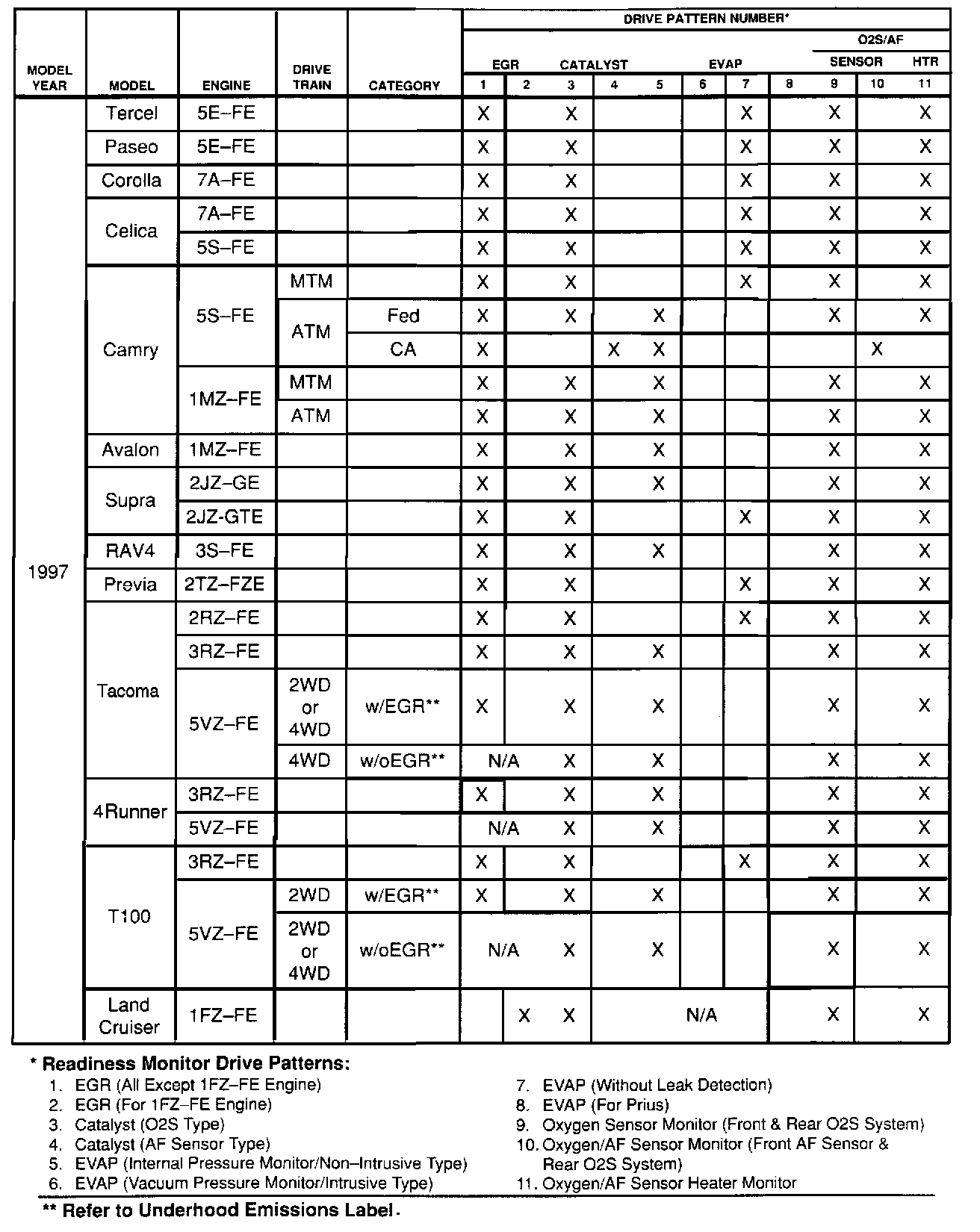

1997

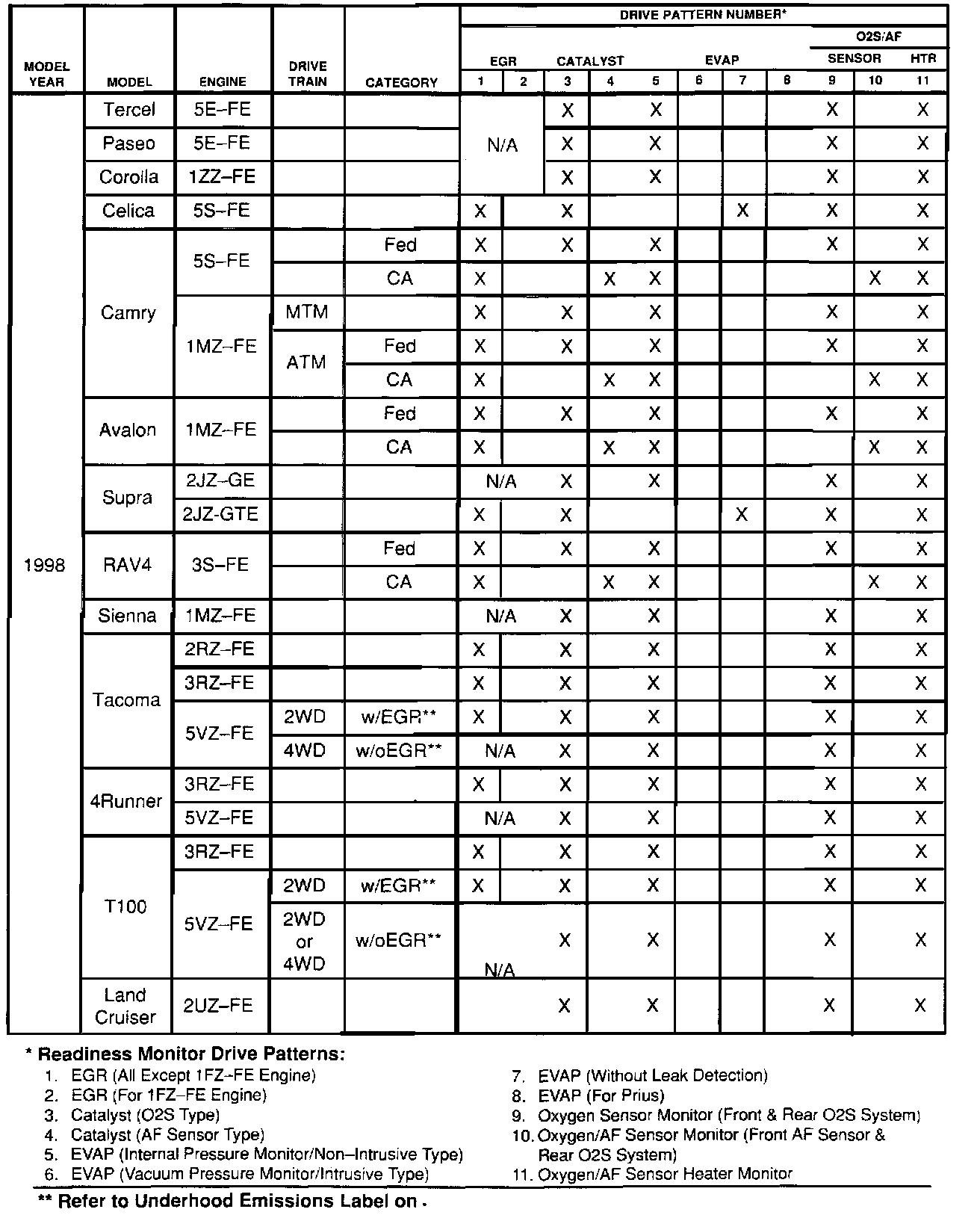

1998

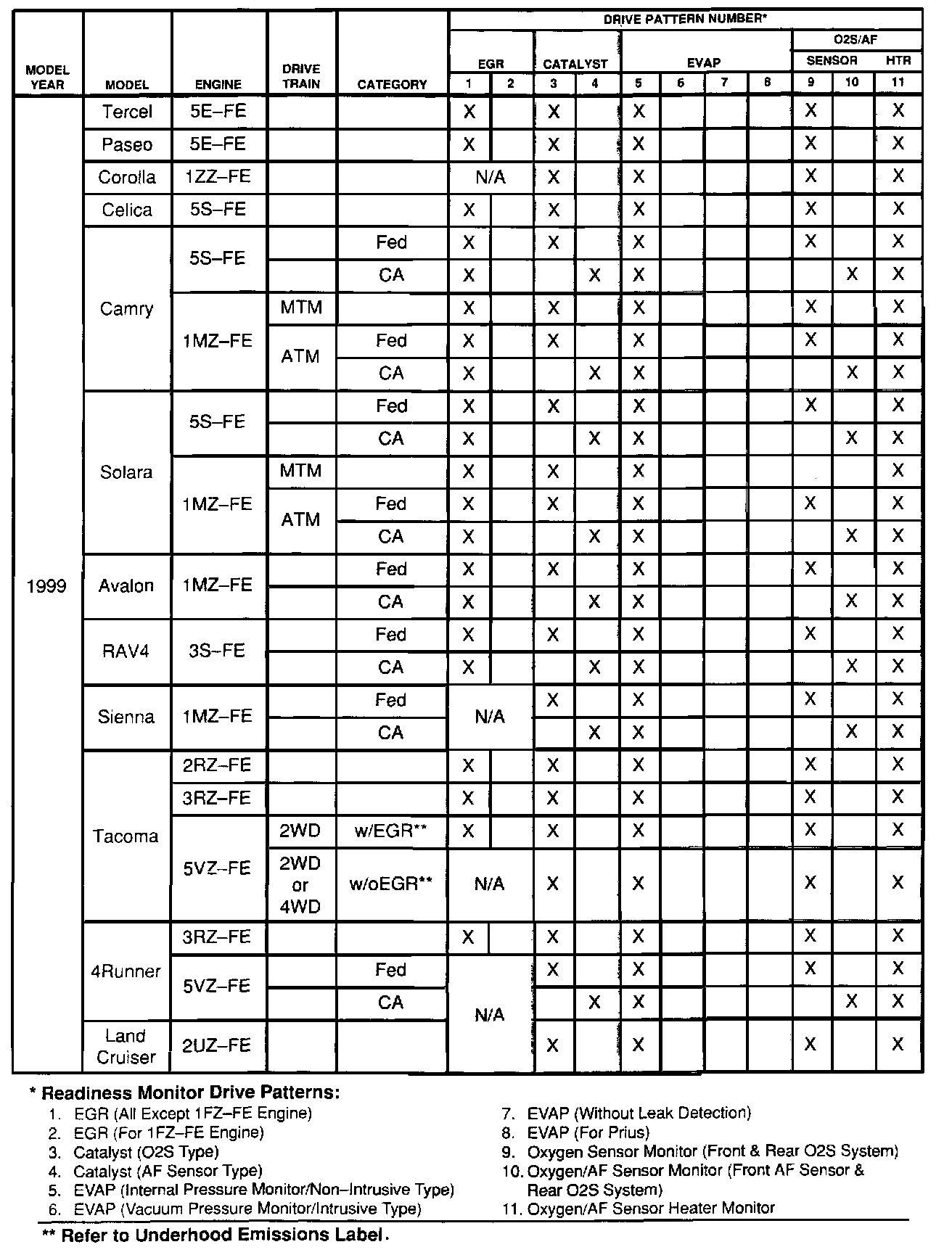

1999





2000

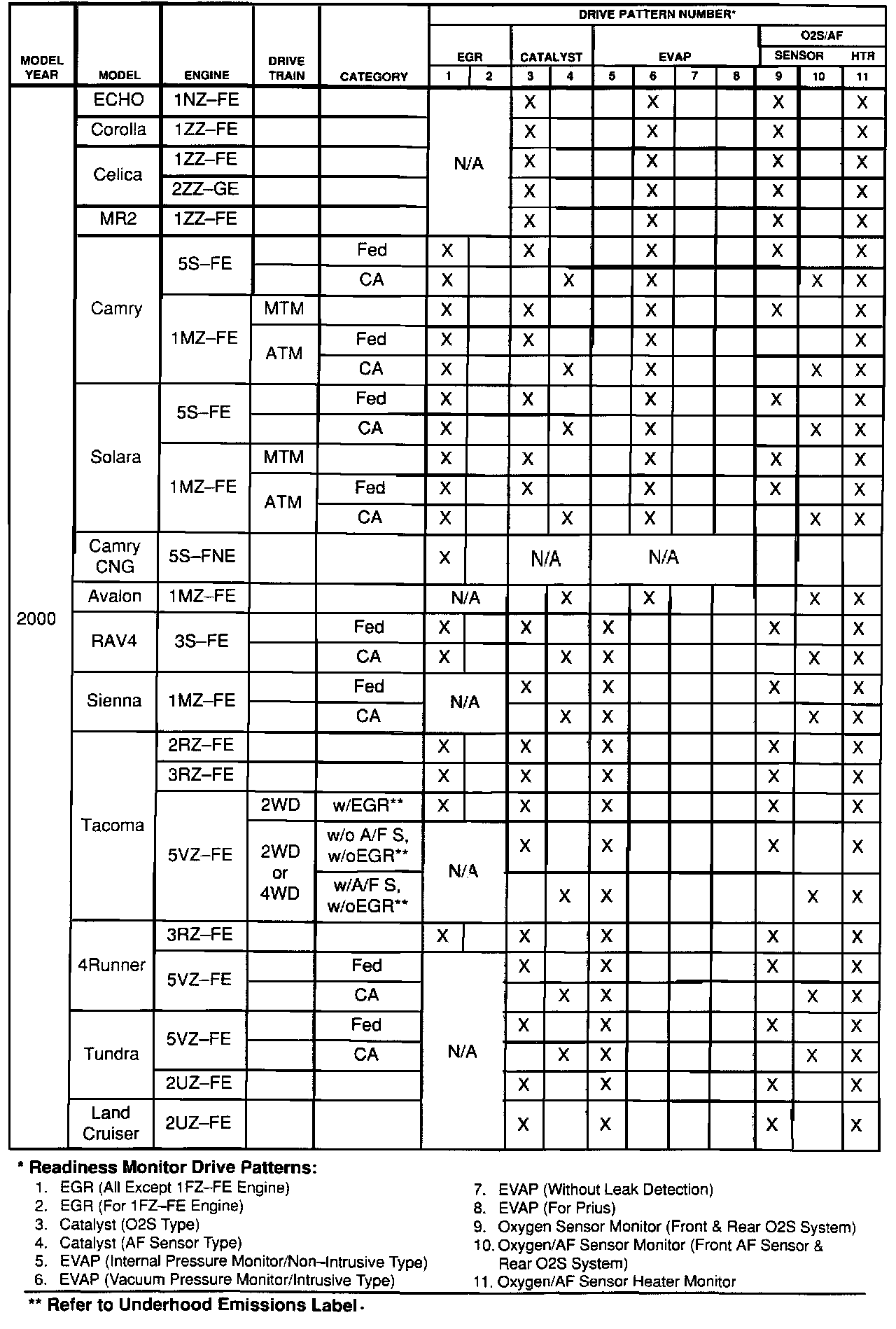

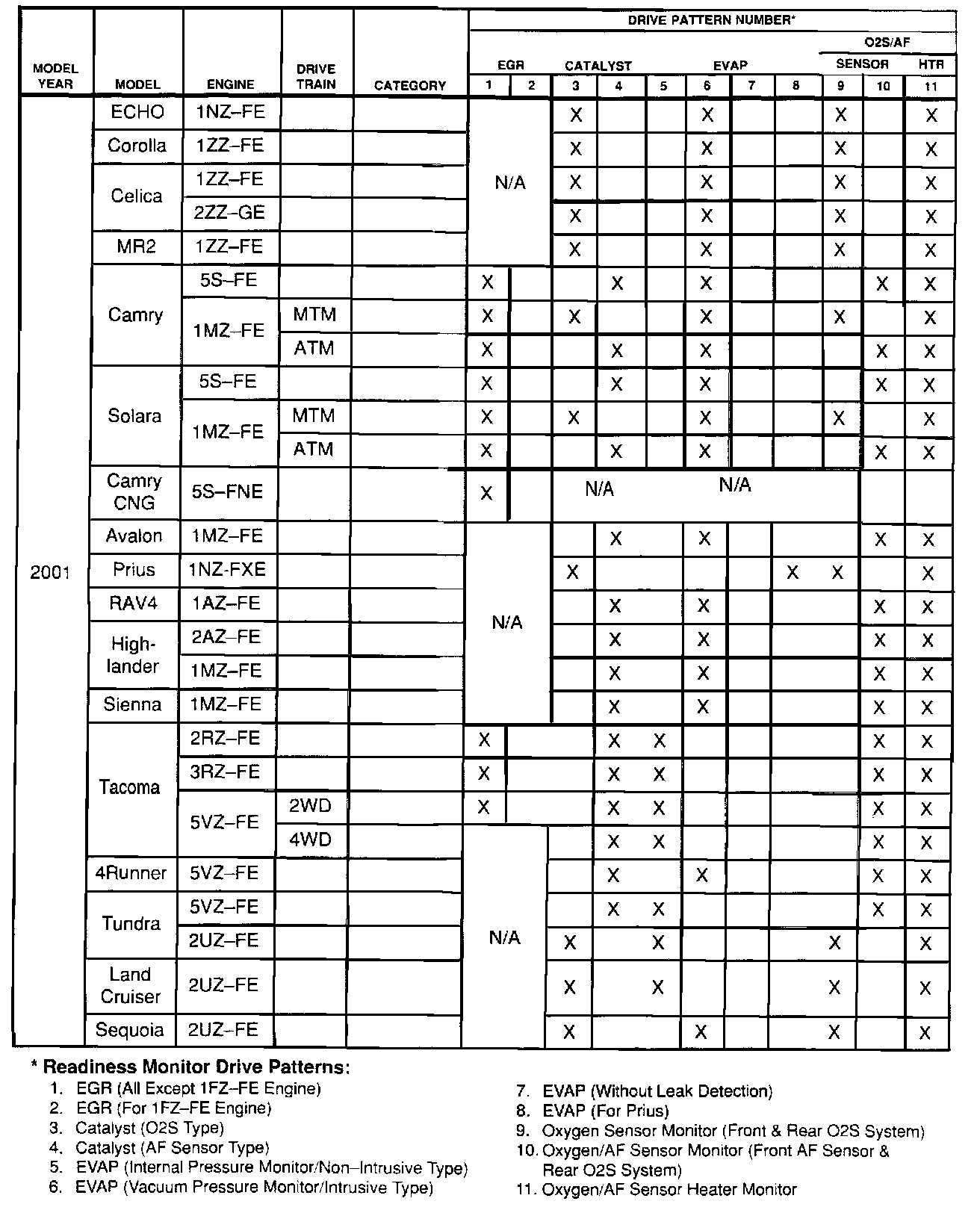

2001

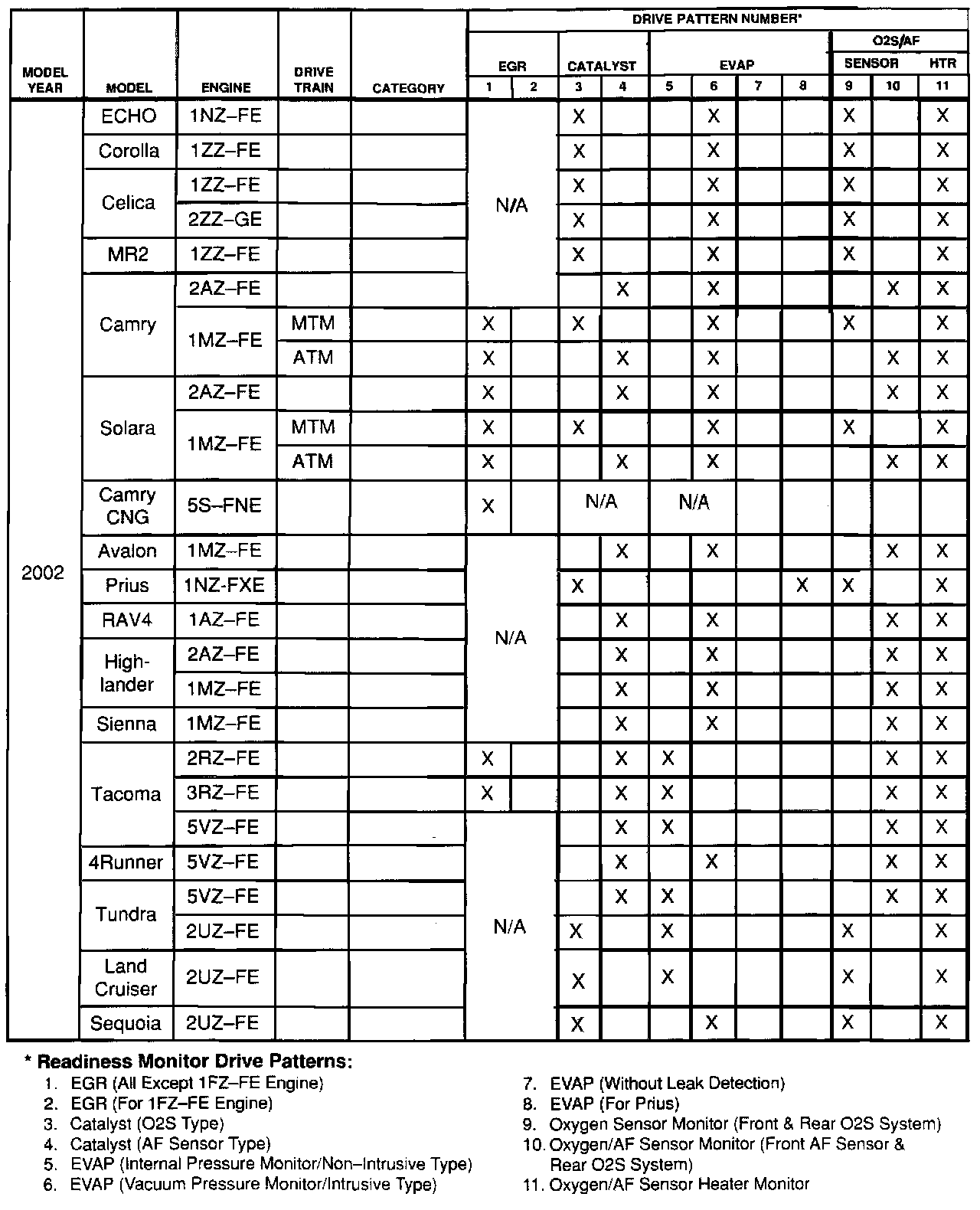

2002
