ECM Power Source Circuit

ECM POWER SOURCE CIRCUIT INSPECTION

CIRCUIT DESCRIPTION
When the ignition switch is turned ON, battery positive voltage is applied to the coil, closing the contacts of the EFI relay and supplying power to the terminals +B of the ECM.

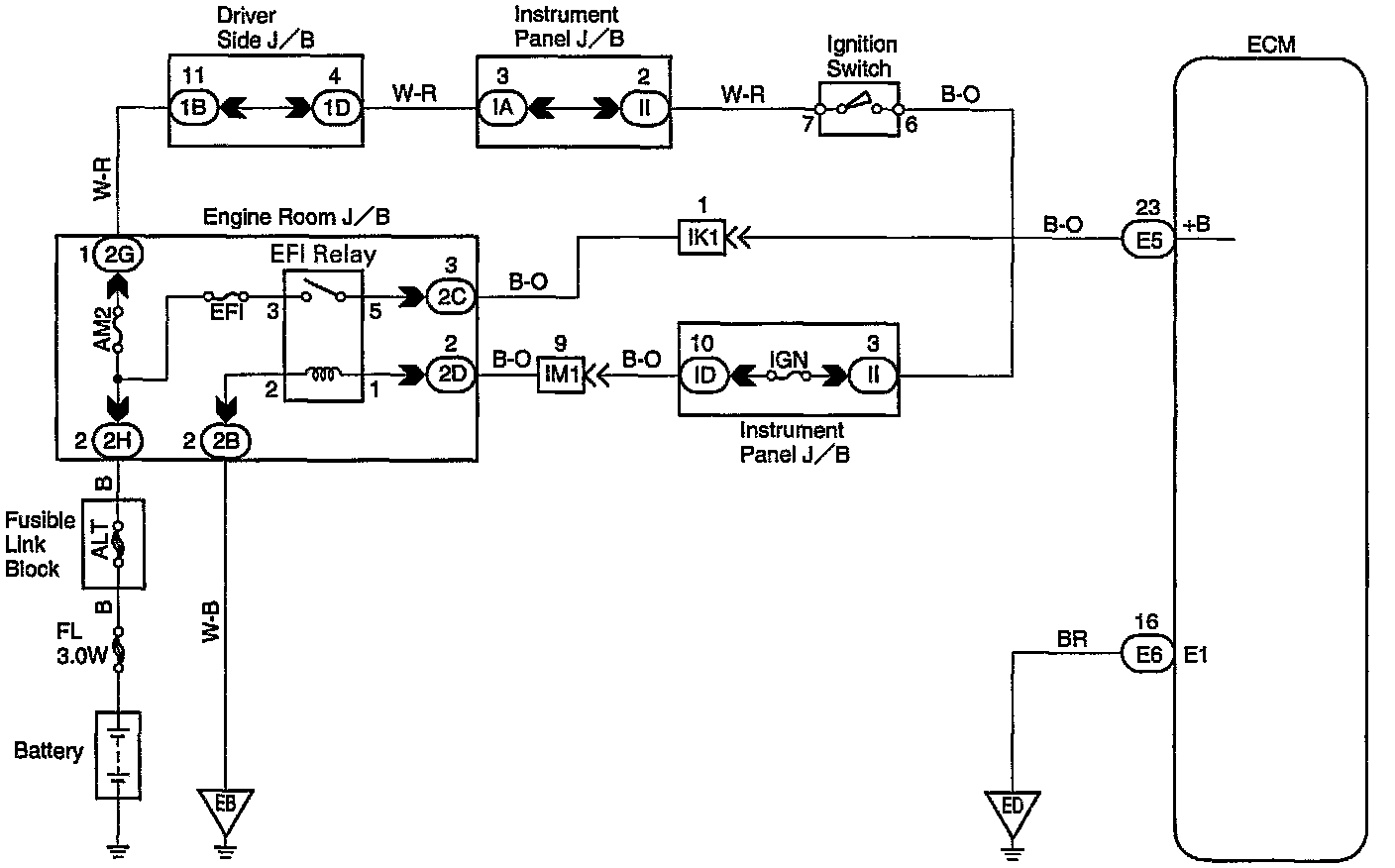

WIRING DIAGRAM

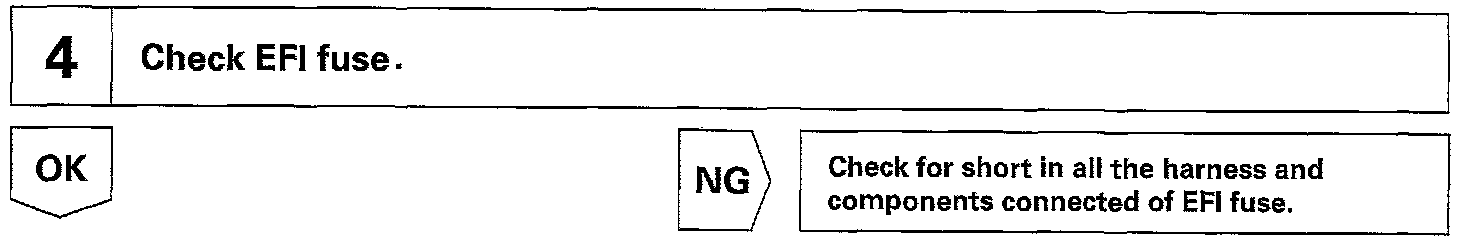

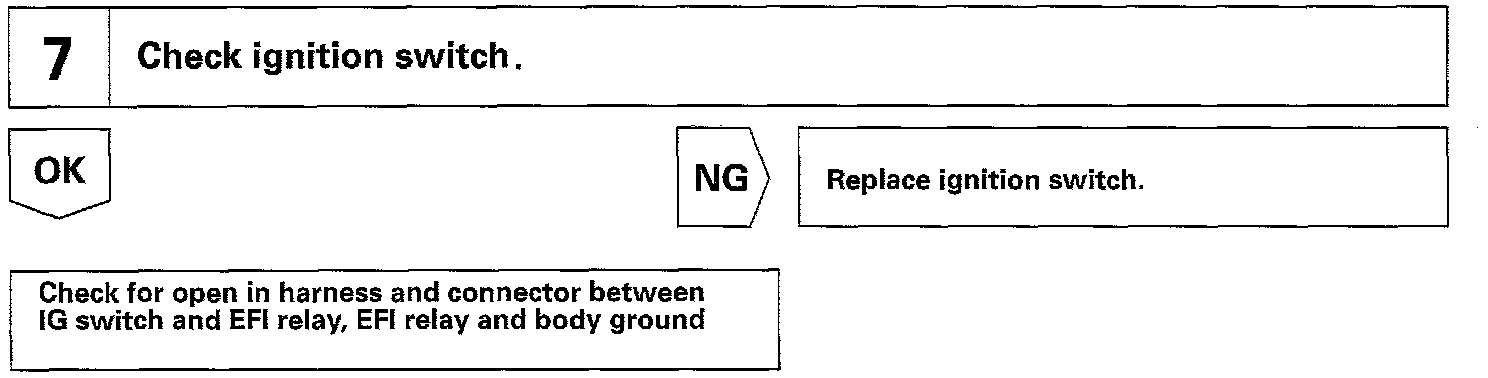

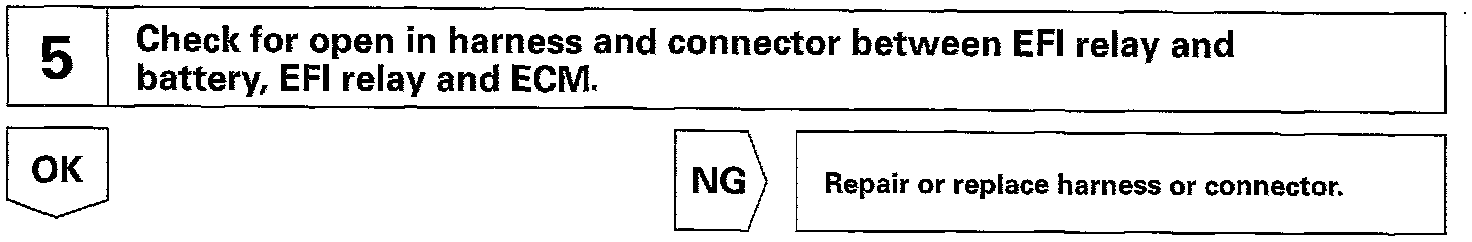

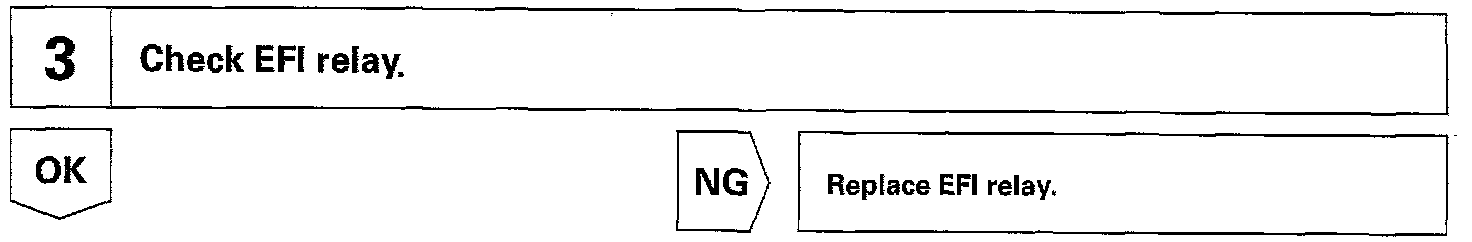

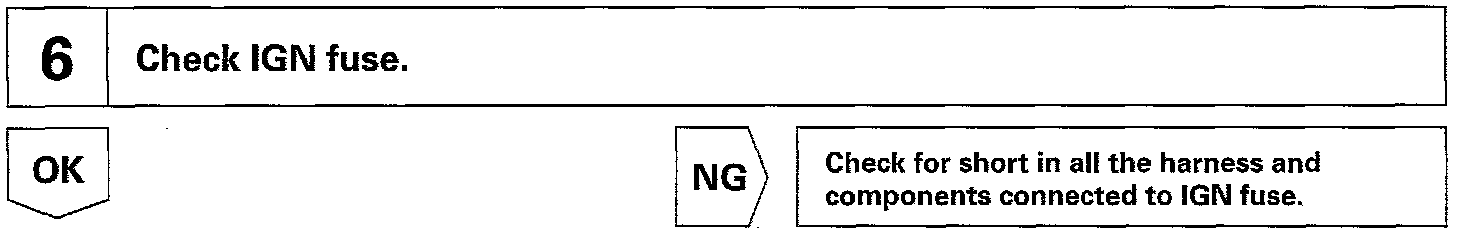

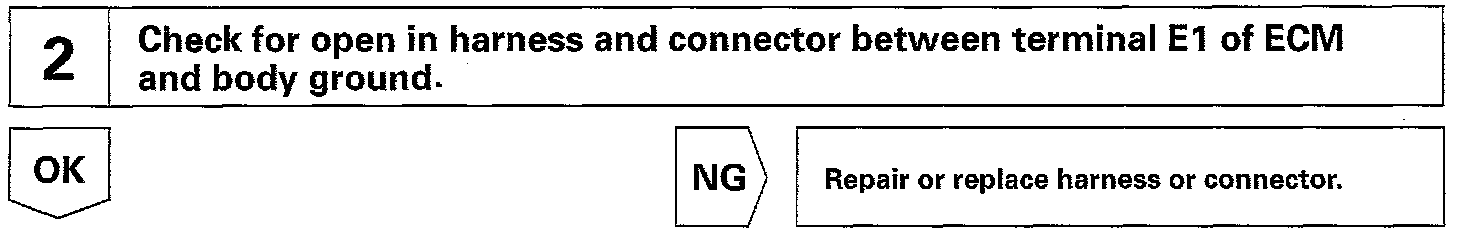

INSPECTION PROCEDURE
