Off-Vehicle Inspection

IAC VALVE REMOVAL

NOTE: Installation is in the reverse order of removal.

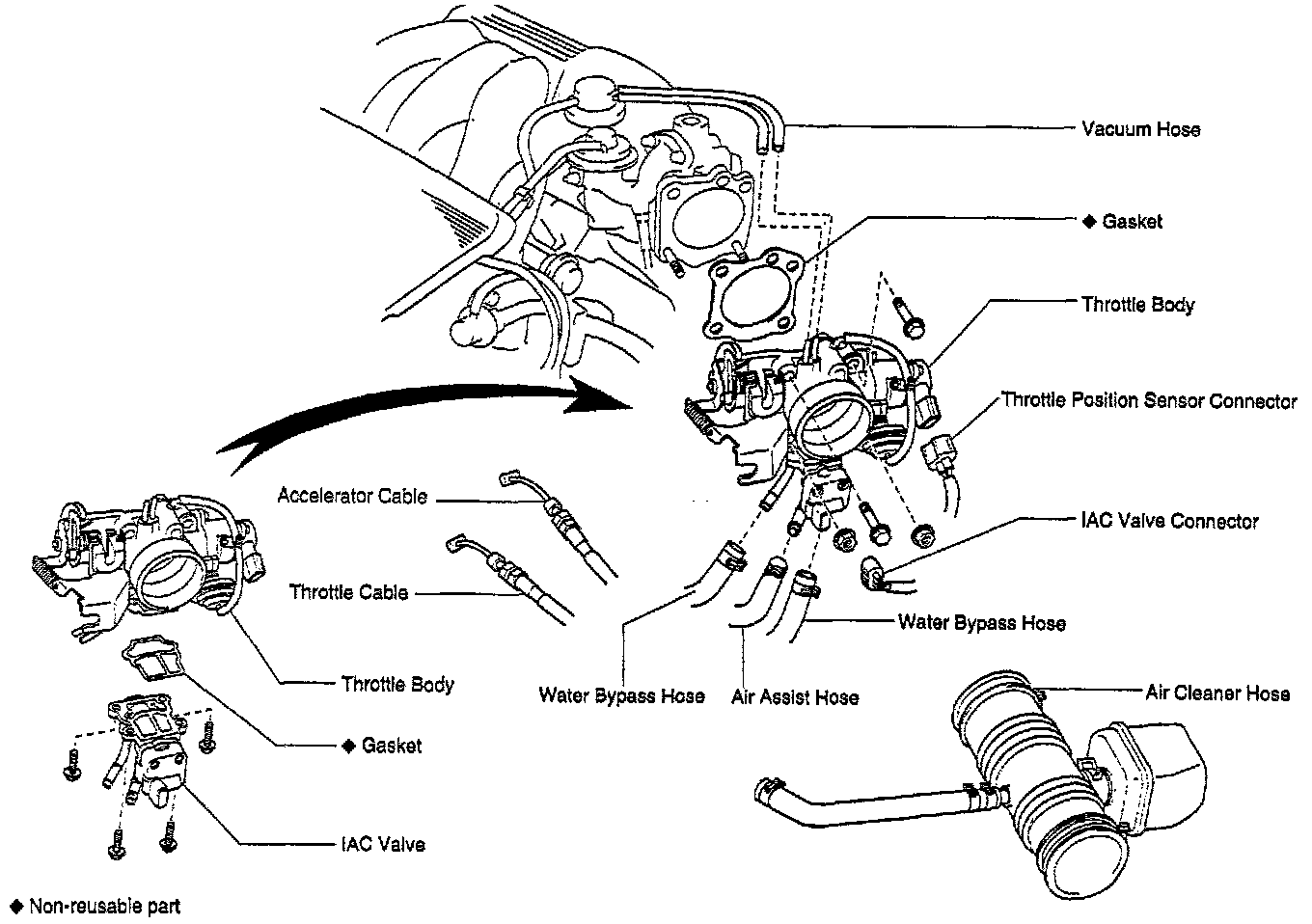

1. REMOVE THROTTLE BODY.
2. REMOVE IAC VALVE.

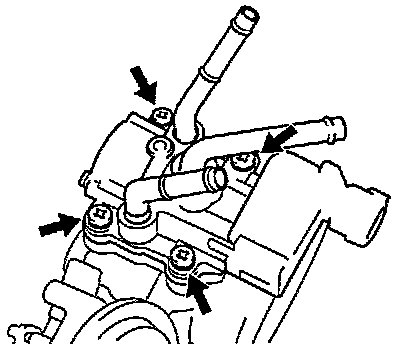

- Remove the 4 screws, IAC valve and gasket.
INSTALLATION HINT: Place a new gasket on the throttle body.


INSPECT IAC VALVE OPERATION

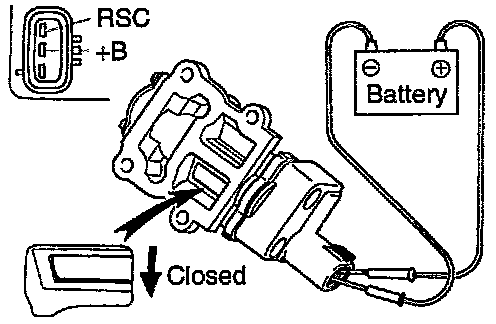

1. Connect the positive (+) lead from the battery to terminal +B and negative (-) lead to terminal RSC, and check that the valve is closed.

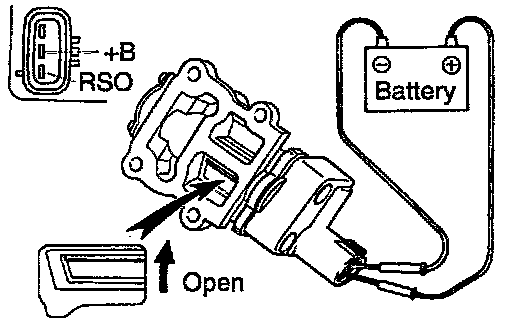

2. Connect the positive (+) lead from the battery to terminal +B and negative (-) lead to terminal RSO, and check that the valve is open.

3. If operation is not as specified, replace the IAC valve.
