Alignment - Specifications In Degrees
Alignment - Specifications In Degrees
REF.: SUSPENSION
NO.: SU003-96
DATE: MARCH 29, 1996
MODEL: ALL MODELS

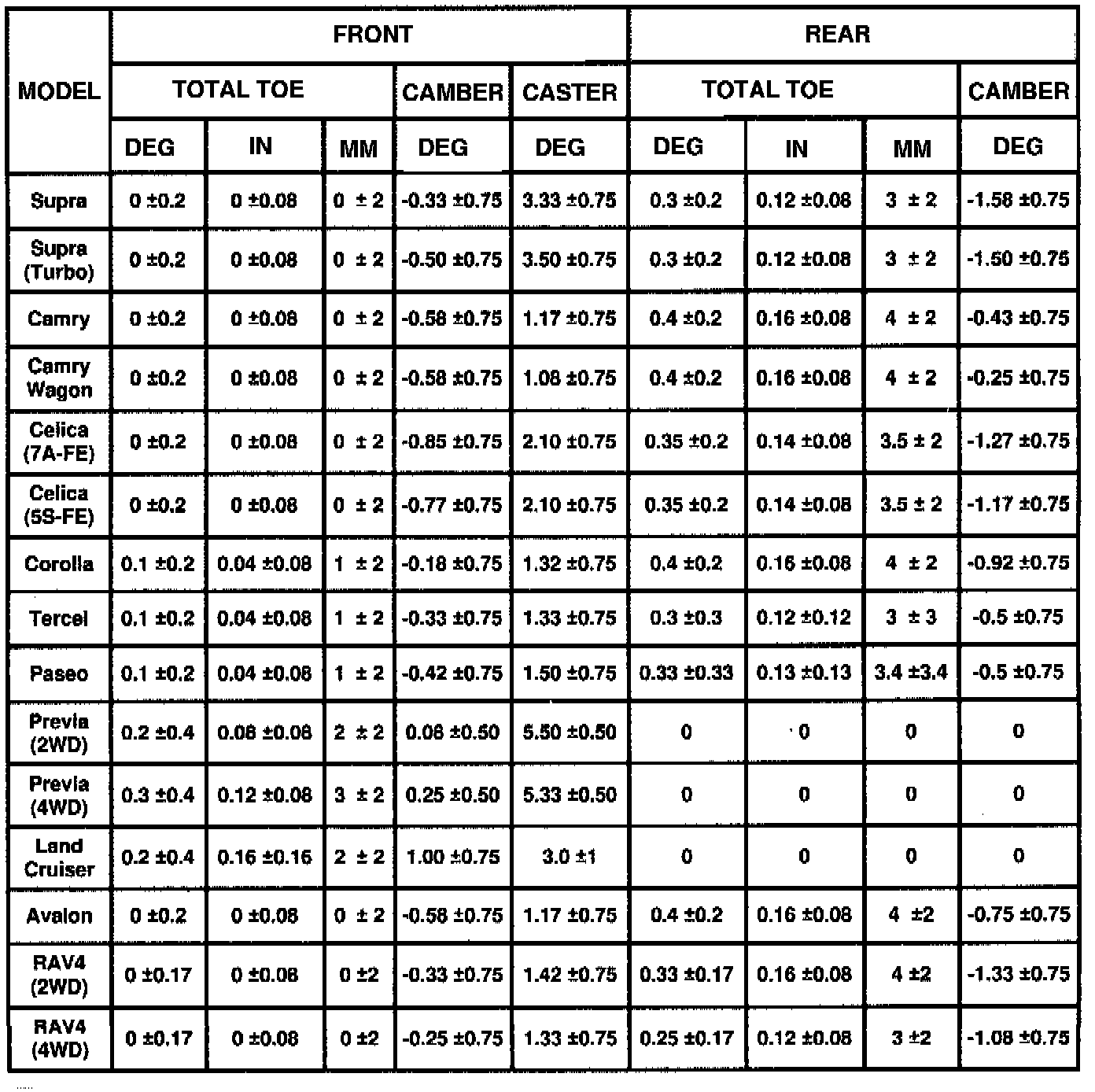

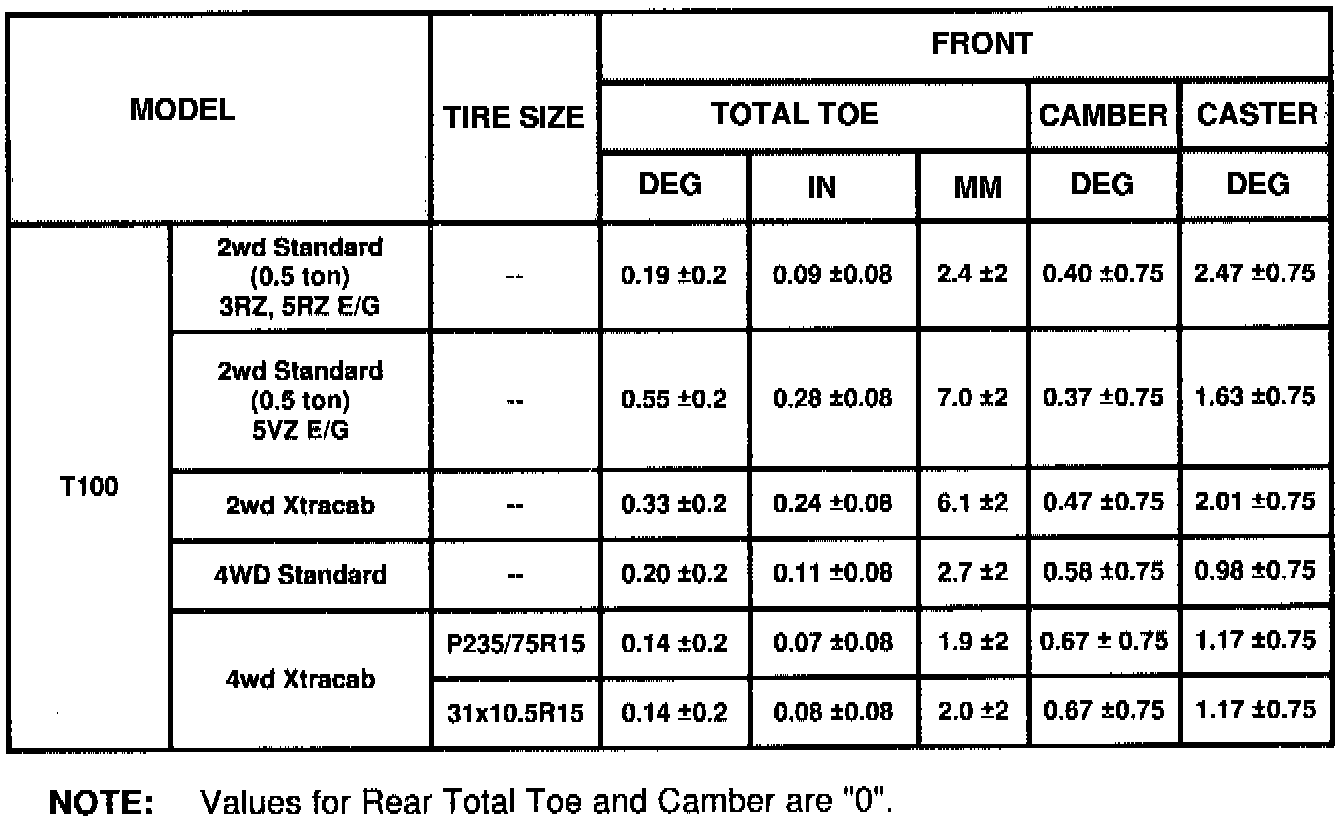

1996 MY WHEEL ALIGNMENT SPECIFICATIONS
For your reference listed are the alignment specifications for all 1996 model year vehicles.
