Alignment - Camber Adjusting Bolts

REF.: SUSPENSION

NO.: SU0O4-96

DATE: JULY 12, 1996

MODEL: TER, PAS, COR, CAM,

AVL, CEL, PRV

CAMBER ADJUSTING BOLTS

To increase camber adjusting capability, the steering knuckle set bolts can be replaced with new camber adjusting bolts. These new camber adjusting bolts allow for greater movement between the steering knuckle and shock absorber assembly.





NOTE:
Vehicles which are out of alignment specifications due to a collision or worn out parts, should be inspected for damage and/or worn out parts before performing an alignment.

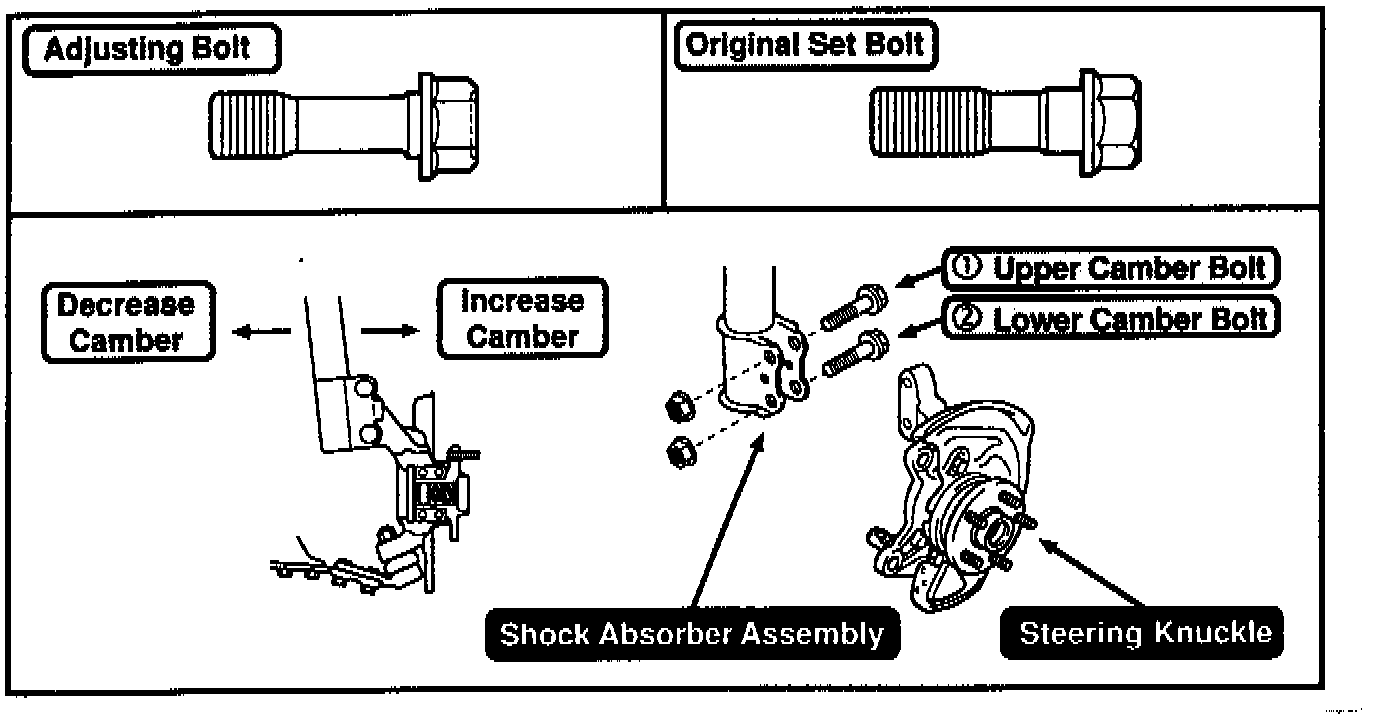

To change camber, install the adjusting bolt in the lower steering knuckle mounting hole. If a camber change greater than 0.75° is required, camber bolts can be installed in both upper and lower steering knuckle holes for camber changes up to 1.50°. See Camber Adjusting Bolt Table for model, part number and bolt selection.

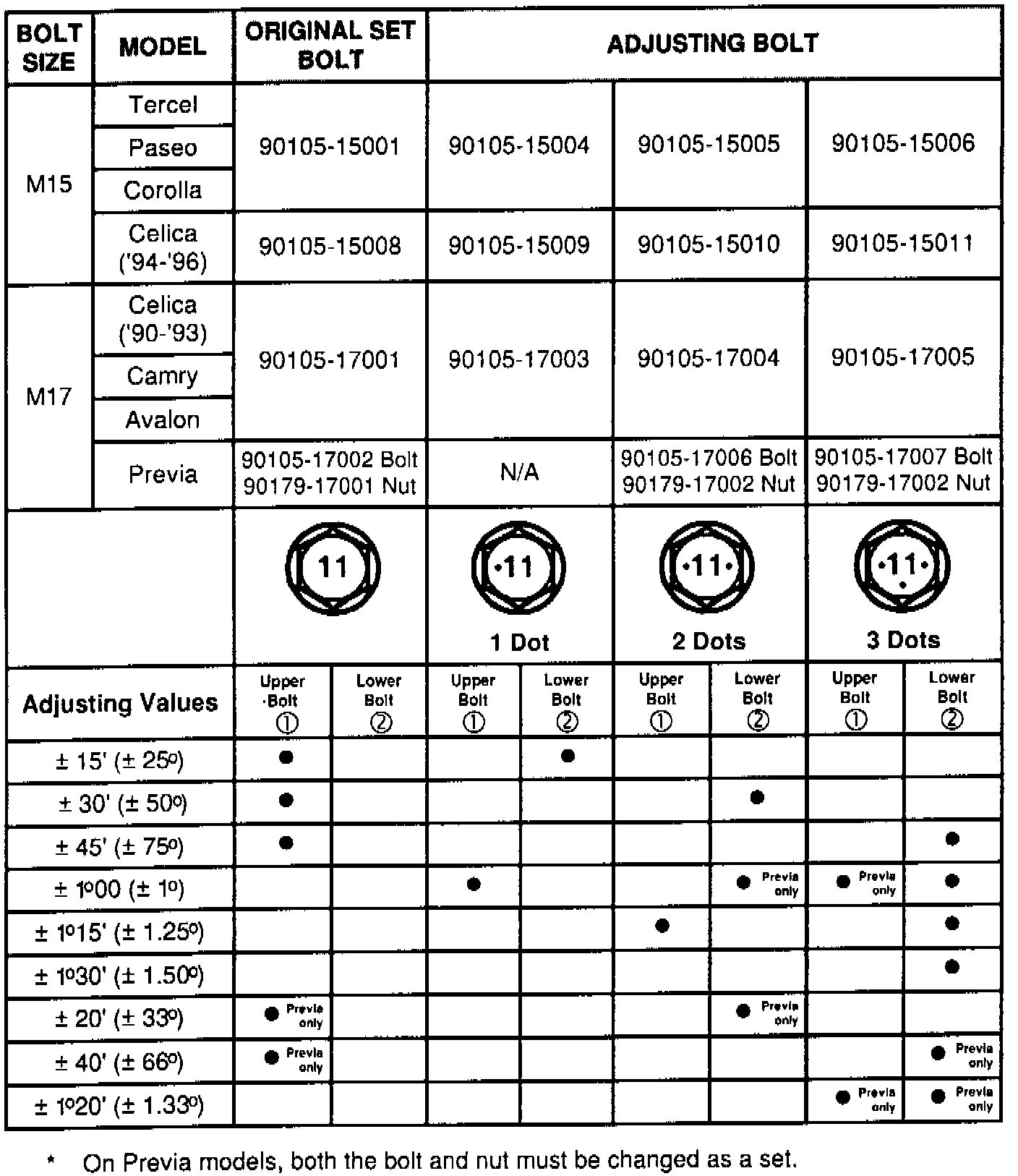

CAMBER ADJUSTING BOLTS TABLE

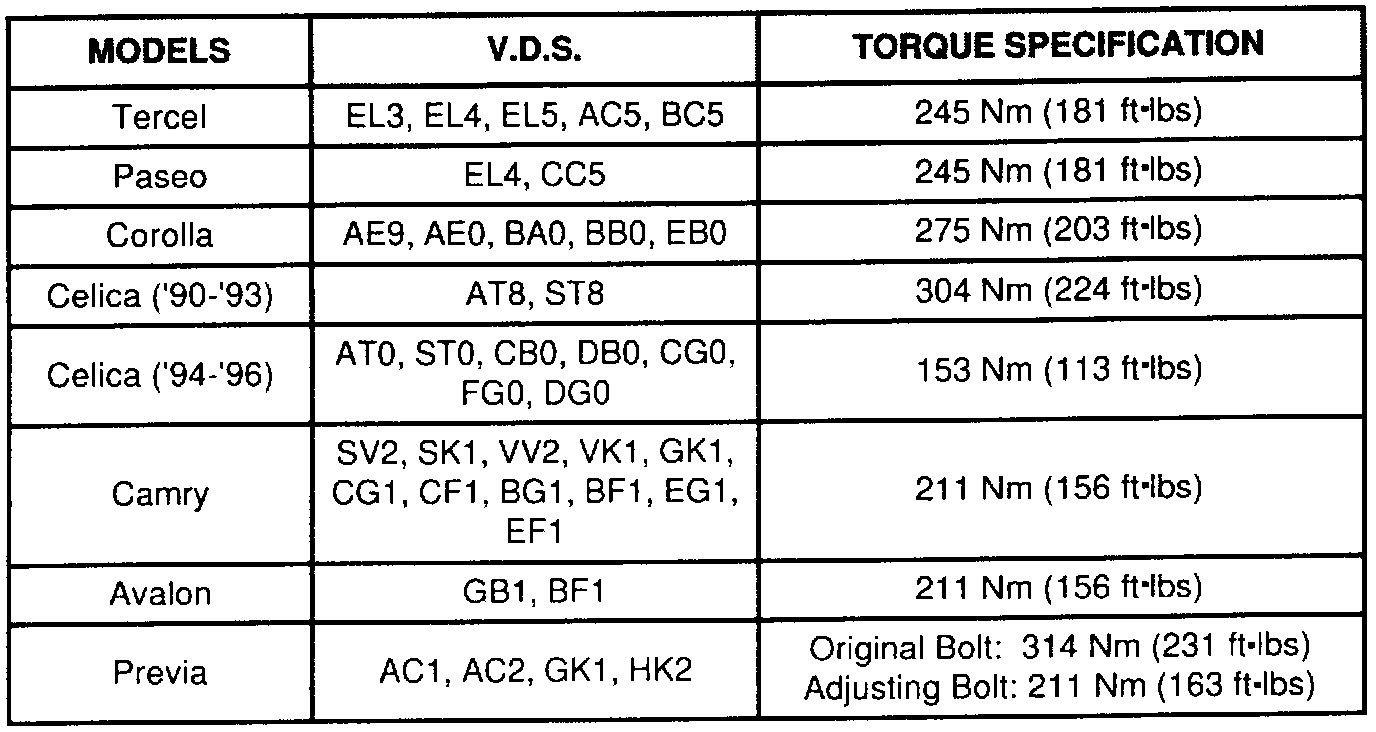

STEERING KNUCKLE BOLT TORQUE SPECIFICATIONS:

Camber adjusting bolt values, bolt identification and part number information for current production models can also be found in the SUSPENSION - WHEEL ALIGNMENT section of the applicable 1996 or later repair manuals. Refer to TSB Volume 10 STEERING # 006 and # 007 for previous model camber bolt information.

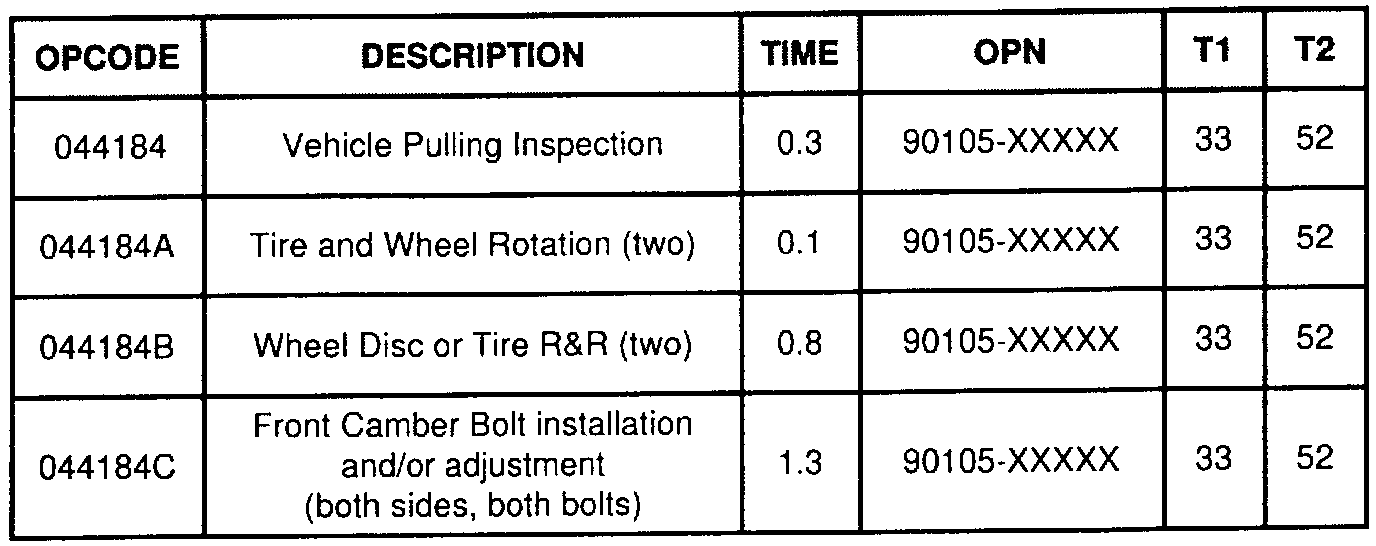

WARRANTY INFORMATION:*

* Warrantable only for 12 months or 12,500 miles from date-of-first-use or demo date, whichever occurs first. Coverage is extended to 24 months or 18,000 miles, whichever occurs first, in the state of New York due to "Lemon Law" legislation.
