Toe-In

1. Measure length of left and right No. 2 lower suspension arms, Fig. .

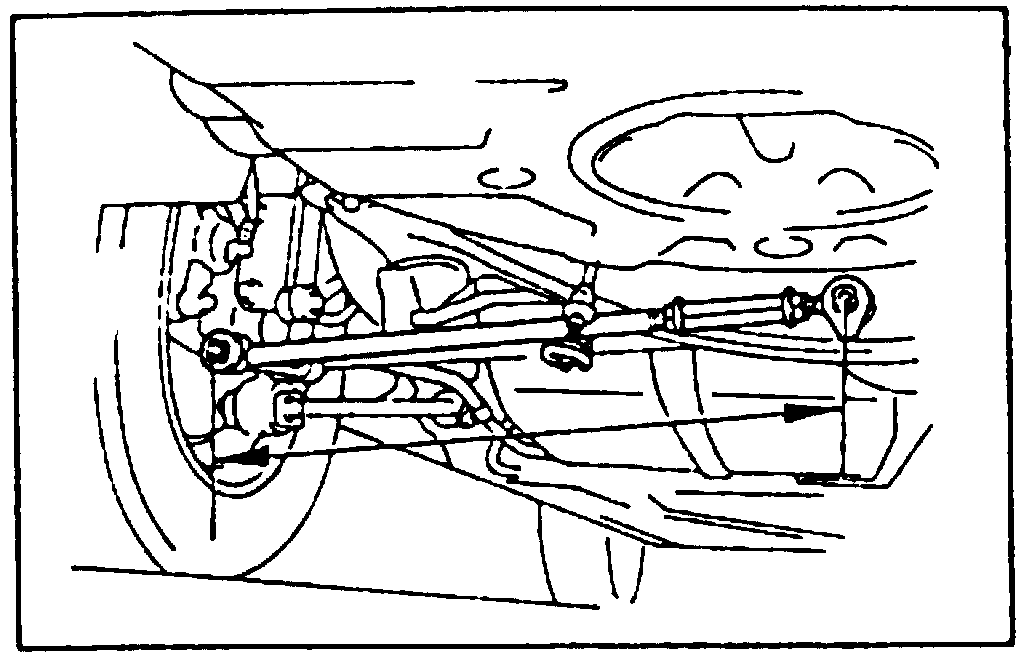

Fig. 1 Rear Toe-in Adjustment.:

2. Adjust length of lower suspension arms if difference in length is greater than .04 inch.
3. Loosen locknuts and turn left and right adjusting tubes an equal distance to adjust toe-in.
4. One turn of adjusting tube will adjust toe-in approximately .264 inch.
5. Following adjustment, torque locknuts to 41 ft. lb.
