Light Auto Turn-Off System
Light Auto Turn-Off System

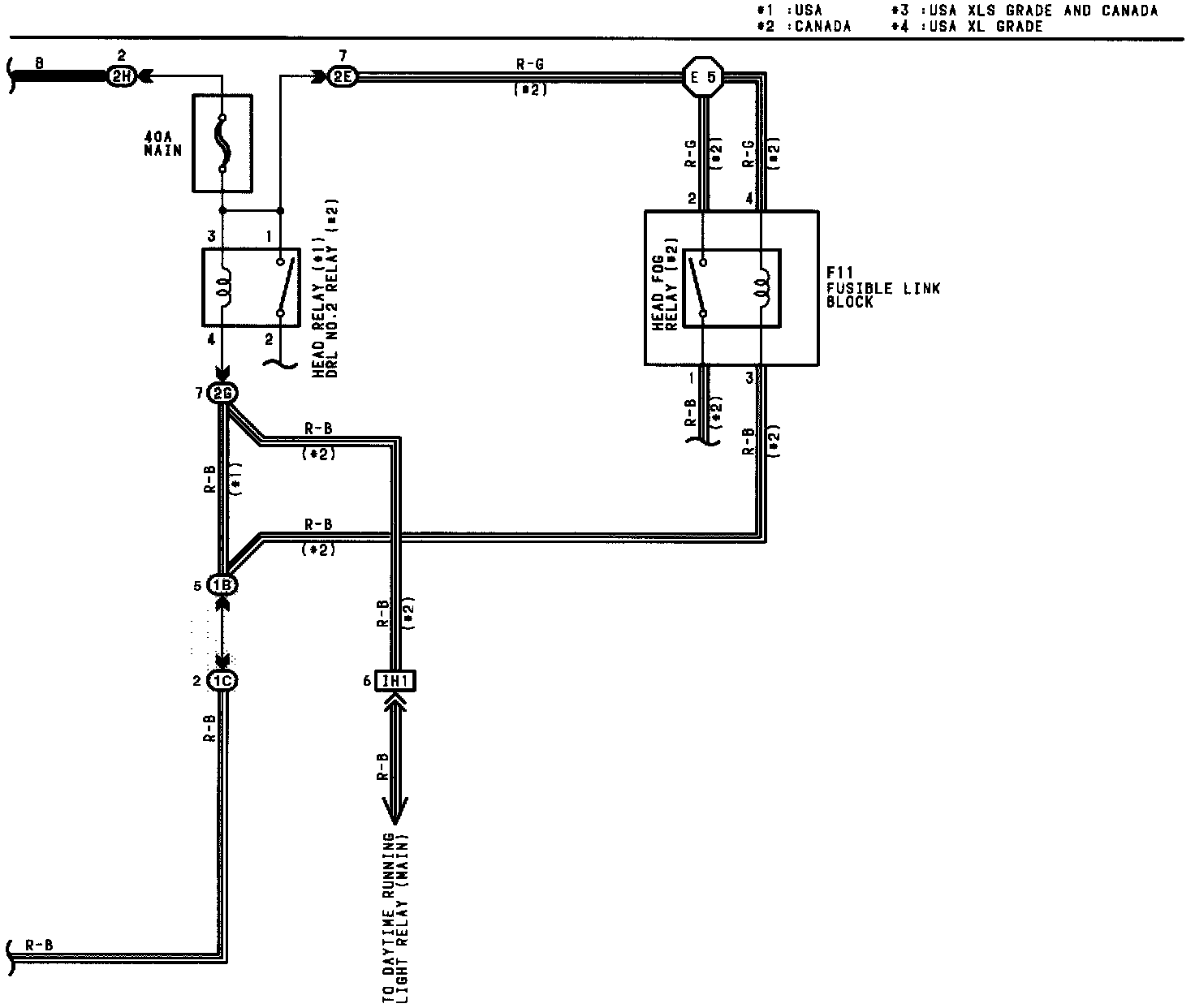

Light Auto Turn Off (Part 1 Of 2):

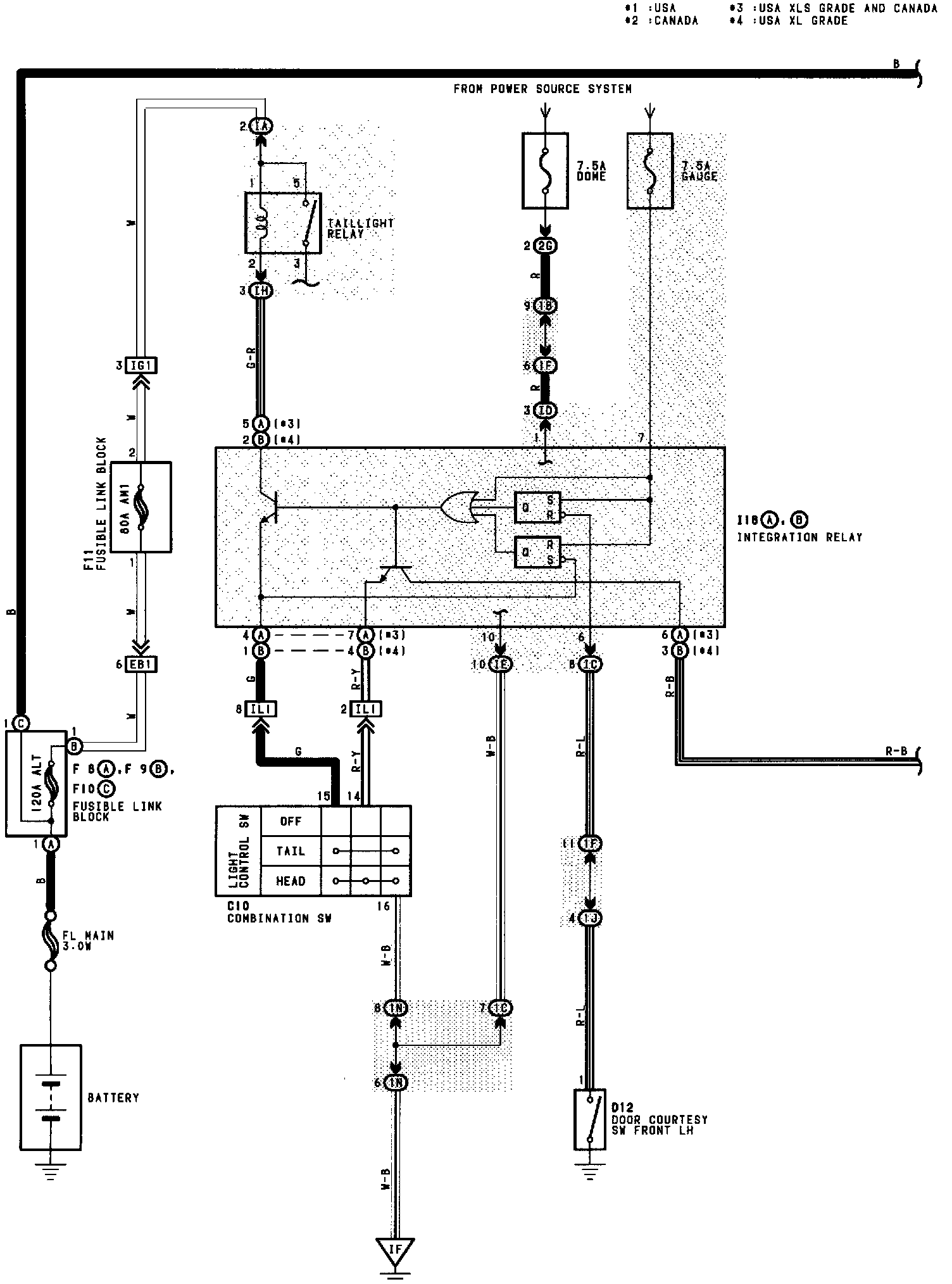

Light Auto Turn Off (Part 2 Of 2):
