Instrument Cluster / Carrier: Service and Repair

1. On models with coded audio anti-theft systems, refer to Technician Safety Information for code procedures.
2. On all models, remove steering wheel as outlined under Steering Wheel, Service and Repair.
3. Remove upper and lower steering column cover.
4. Remove trim panels around instrument cluster, Fig. , then remove instrument cluster.

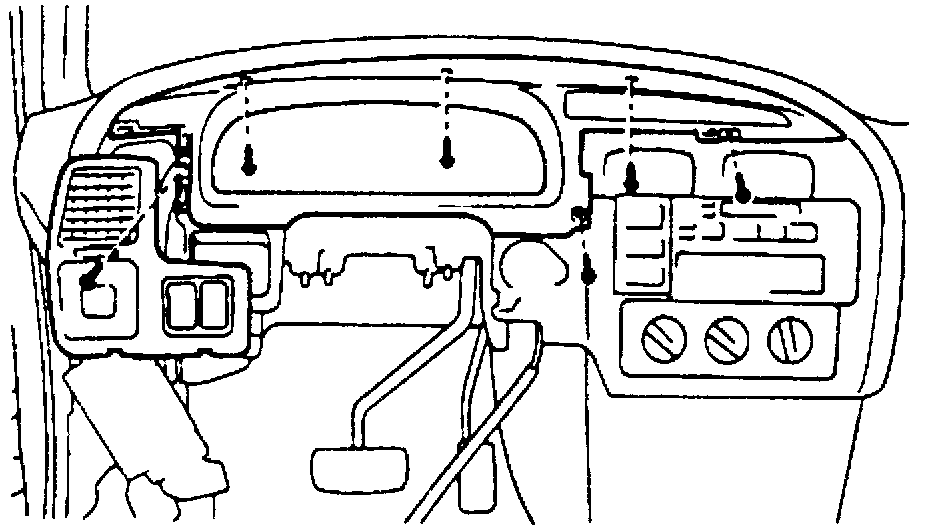

Fig. 13 Instrument Cluster Replacement.:

5. Reverse procedure to install.
6. Reset audio anti-theft system, if necessary, as outlined under Technician Safety Information.
