Upper Panel

REMOVAL
1. REMOVE CENTER CLUSTER FINISH PANEL
2. REMOVE HEATER CONTROL ASSEMBLY

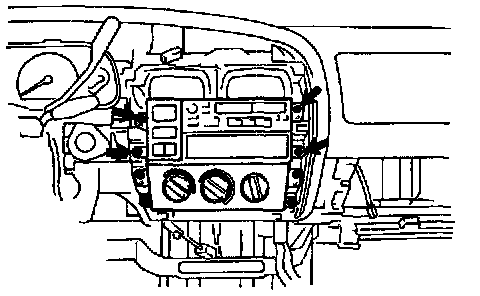

a. Remove the 4 screws and heater control assembly, with the radio, then disconnect the connectors.





b. Remove the 4 bolts, screw and heater control assembly.

INSTALLATION
Installation is in the reverse order of removal.
